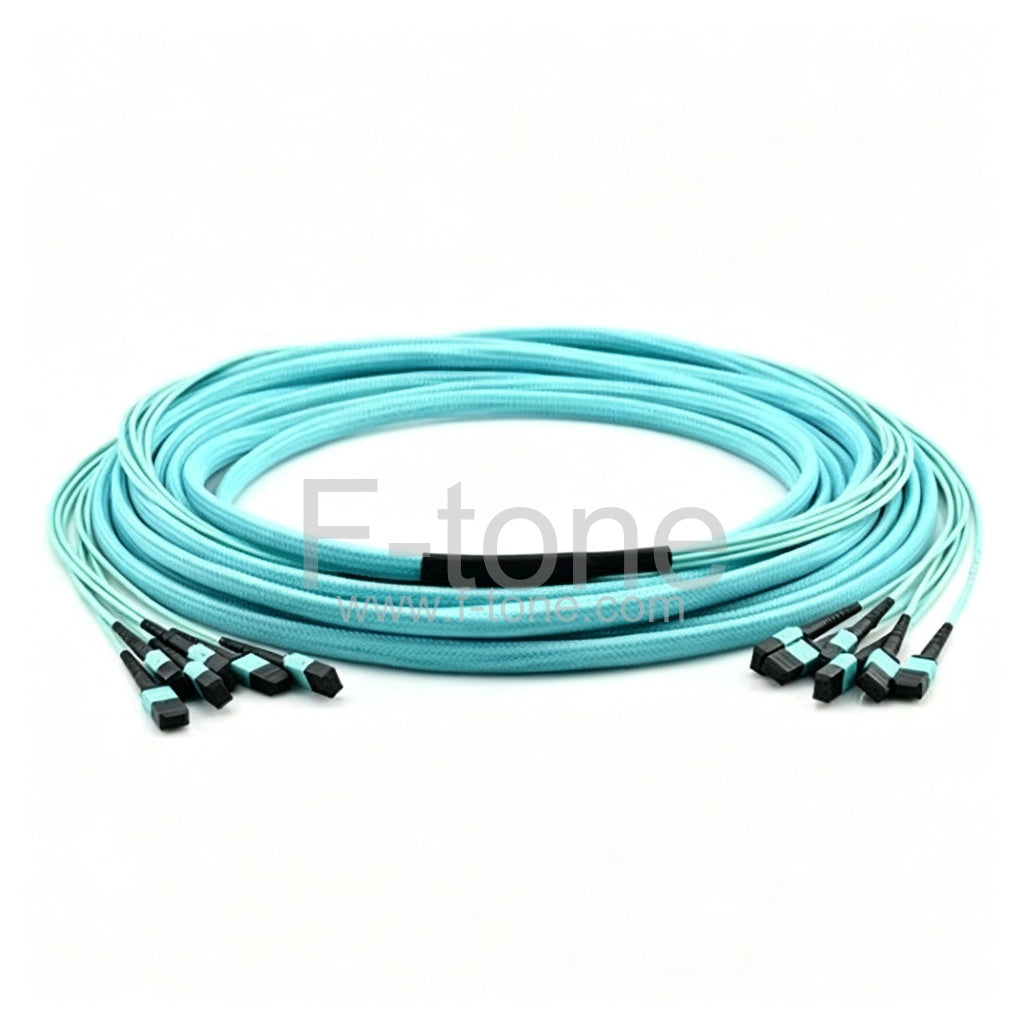

144 Fibers OM3 Multimode 24 Strands MPO to LC Harness Cable 3.0mm LSZH/Riser

Part Number: FT144OM3-4MPOX-X

144 Fibers, MPO to LC/SC/ST/FC, OM3 Fiber, 24 Standard - MPO Fanout Harness Cable

MPO is the high dense degree of optical fiber pre-connect system,which is generally use in three areas:

F-tone's MPO fiber patch cable is compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard. It can be widely used for

• The data centra application with high dense degree environment
• The optical fiber to the building
• The internal connector application in fiber equipment such as Splitter, 40G /100G SFP and SFP+.

10G upgrade to 40G/100G data center.

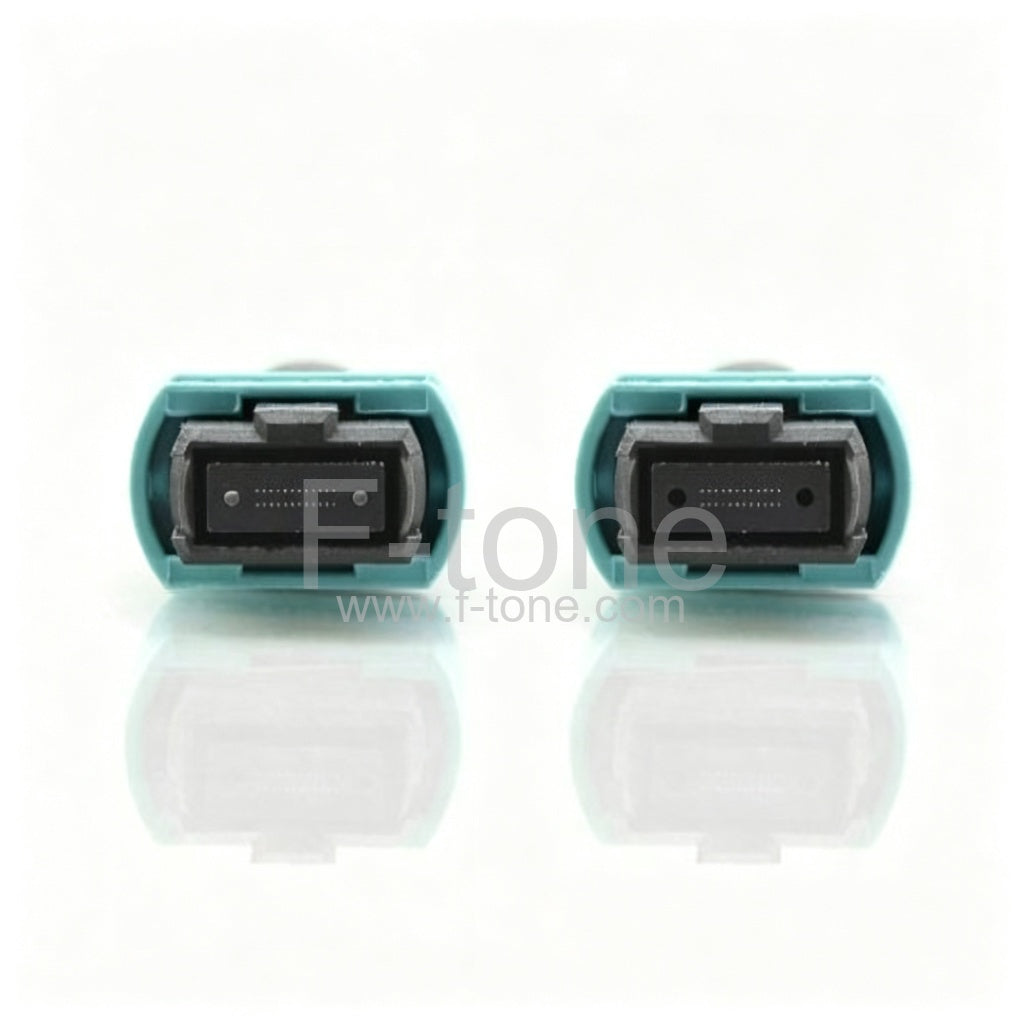

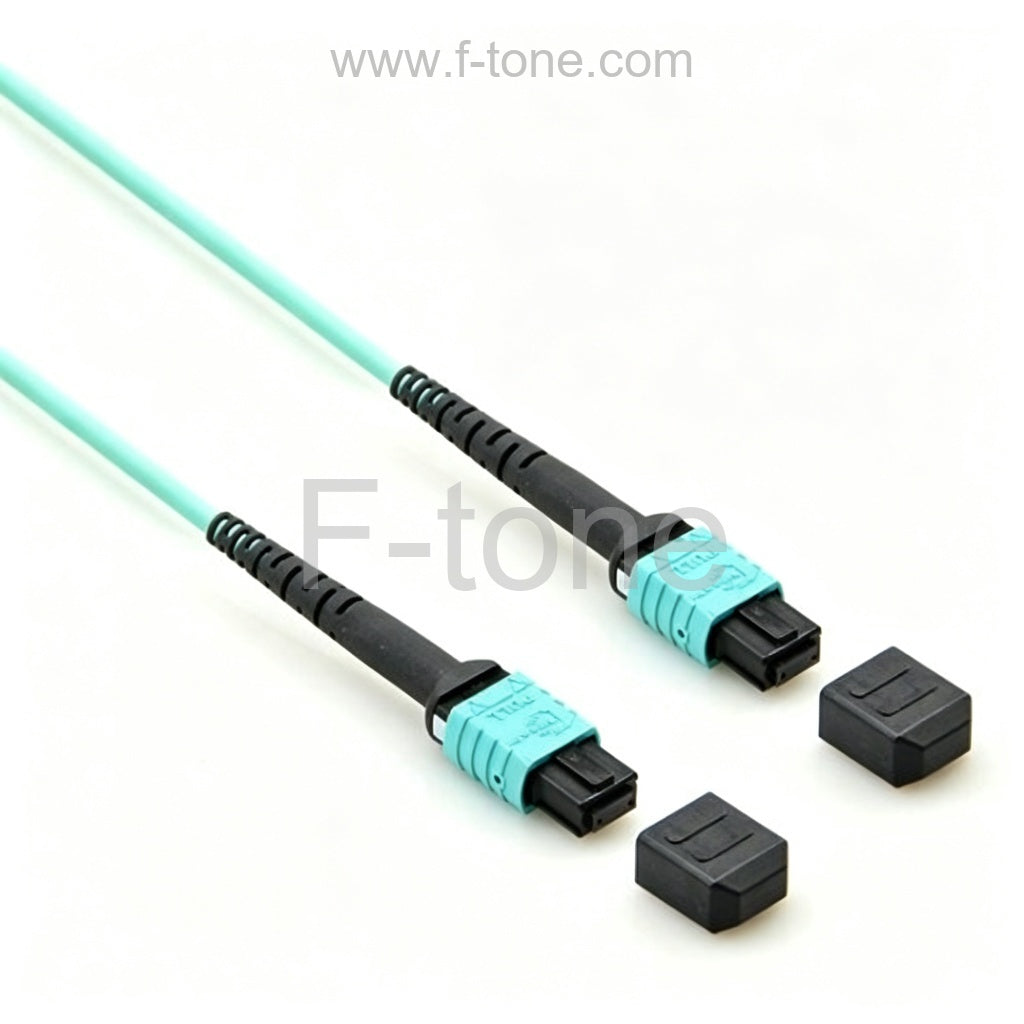

MPO Connector

Pre-terminated MTP Technology-Polarity Type B (Cross)

The application above is for the MTP-LC harness cable connecting a QSFP+ port to (4)SFP+ ports directly.

In many existing DC environments, LC-MTP cables are used to support high density fiber trunks between switches, rack patch panels and main distribution cabling panels (MDA).

For example:

The above is the Eight-Fiber MTP-LC Assembly uses a pinless connector on one end for interfacing with the QSFP port on the Cisco Nexus 6000series, The other end contains four LC uniboot connectors, which provide connectivity to the SFP+ ports on the switch. The polarity of the assembly pairs the fibers from the MTP Connector from the outside to the inside; thus, fiber 1 and fiber 12 are a duplex pair, as are fiber 2 and fiber 11, etc.

Assembly Structure Illustration

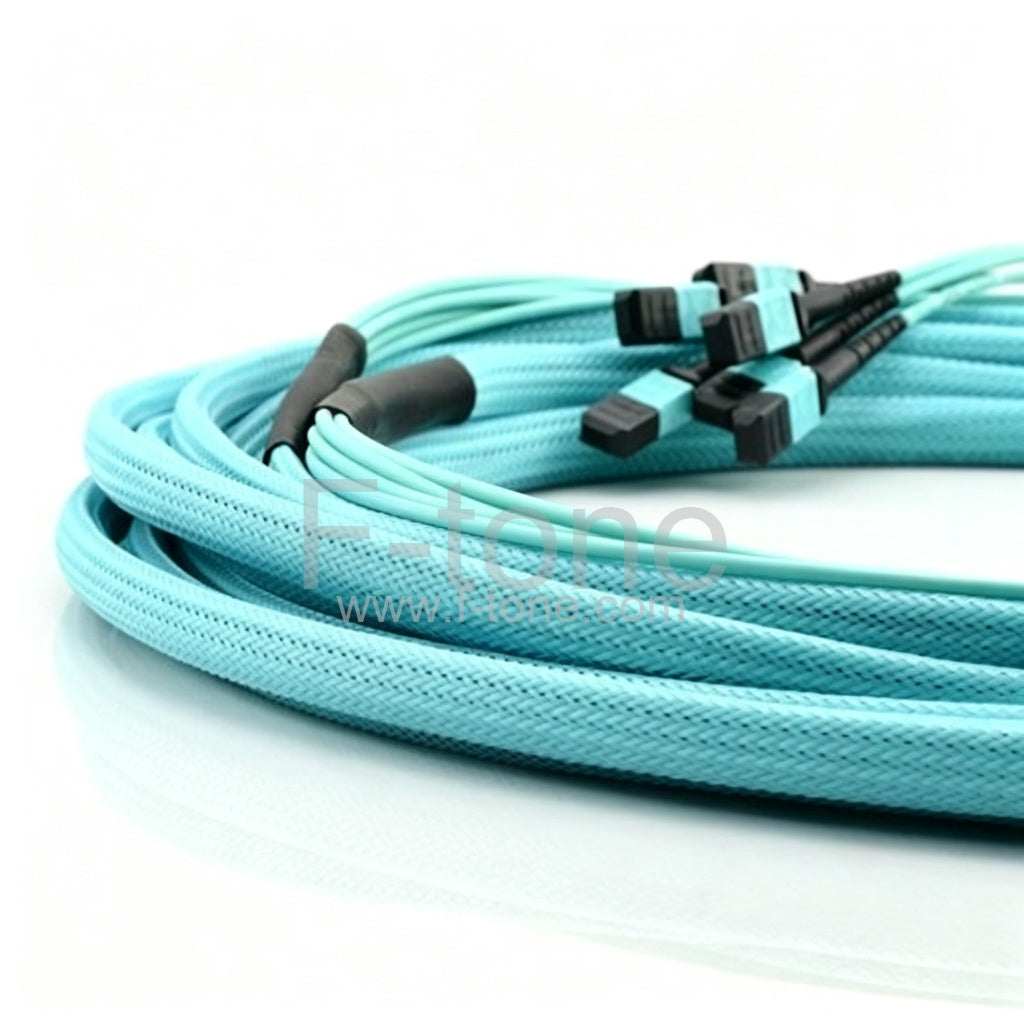

12-Fiber Mini-Core Cable structure

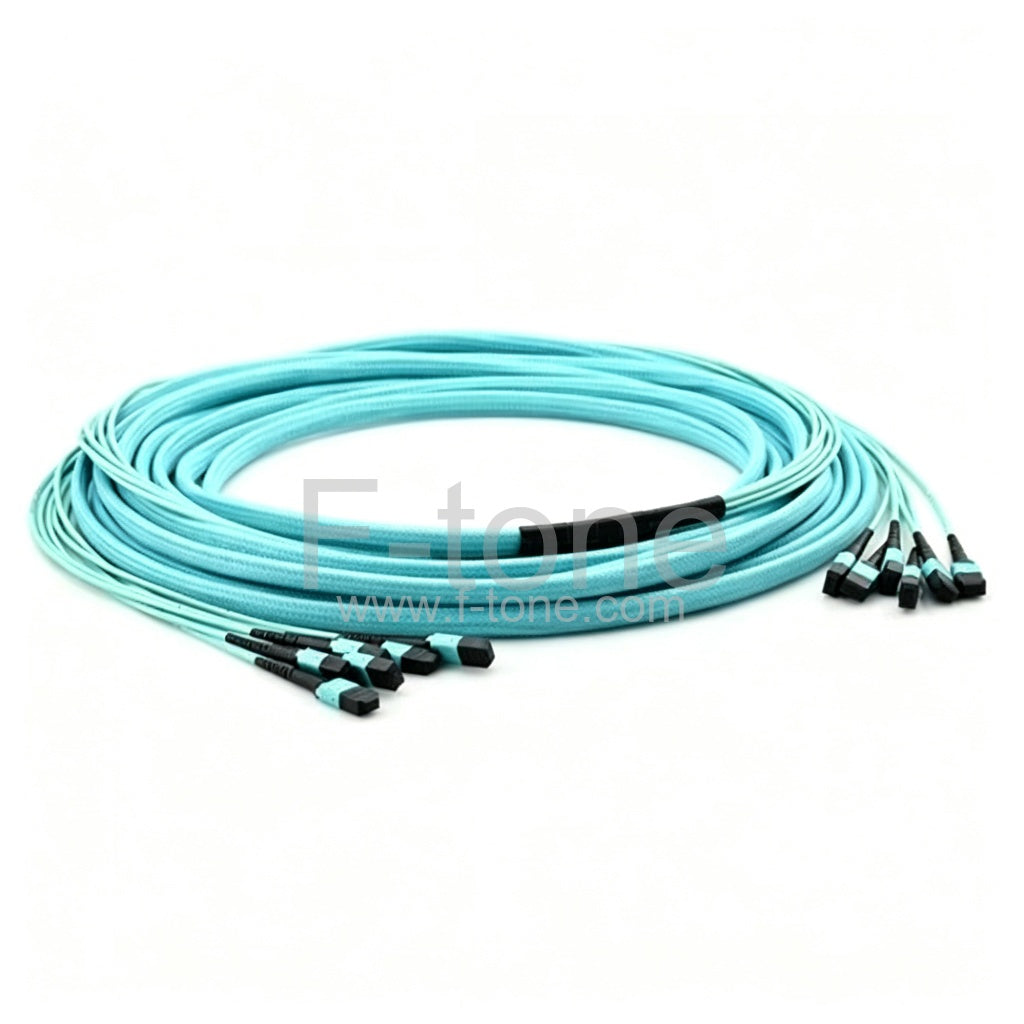

MTP Hybrid Harnesses Fiber Patch Cables are terminated with MPO connector on one end and other end with LC, FC, SC, ST, or MTRJ connectors to meet a variety of fiber cabling requirements.
1.The default diameter of the MPO cable is 3.0mm.
2.The diameter of branch cable could be choose as 0.9mm,2.0mm,please kindly contact us at [email protected] for other diameter standard.
3.Due to Inventory was Changed frequently, 144 fibers cable will be instead of by 6x24Fiber cable when the total order volume is less than 1000m.
4.F-tone can also custom the pulling eyes, welcome to contact us if you need.

MTP/MPO Machinery & Testing Equipment

MPO Termination

Common Termination

Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters,gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters,gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters,gigabit up to 1000m

Make To Order

Note:Polishing connector (A): PC (multimode), APC 8° (single-mode)
Polishing connector (B) : PC (multimode/single-mode), APC 8° (single-mode)
Furcation length (B): 0.5m/0.3m for 1m total length
Type of protection connector: IP20
Patch cord Type: Minicore cable, round

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
