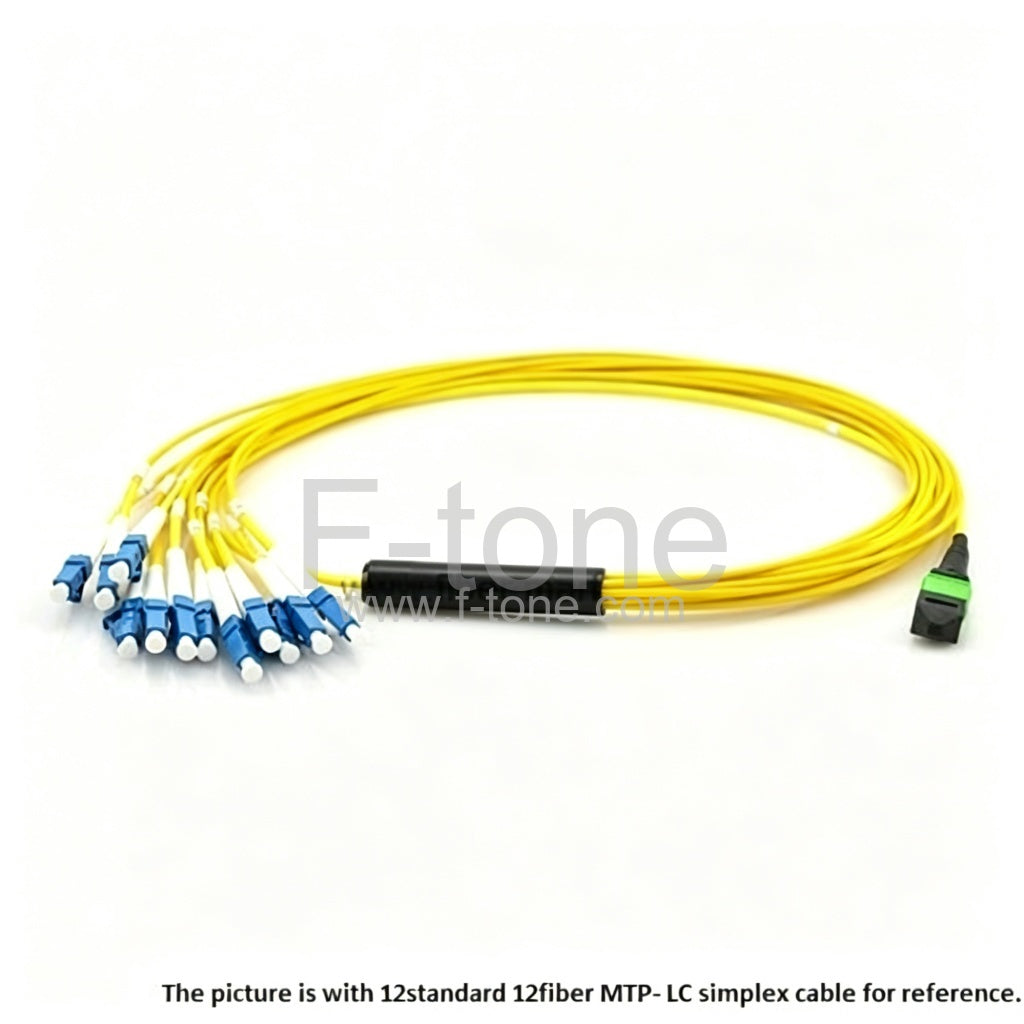

144 Fibers Single-Mode 12 Strands MPO Harness Cable 3.0mm LSZH/Riser

144 Fibers Single-Mode 12 Strands MPO Harness Cable 3.0mm LSZH/Riser

View full details

Part Number: FT144SM-2MPOX-X

144 Fibers, MPO to LC/SC/ST/FC, 9/125 Singlemode Fiber, 12 Standard - MPO Breakout Harness Cable

MPO is the high dense degree of optical fiber pre-connect system,which is generally use in three areas:

F-tone's MPO fiber patch cable is compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard. It can be widely used for

  • The data centra application with high dense degree environment
  • The optical fiber to the building
  • The internal connector application in fiber equipment such as Splitter, 40G /100G SFP and SFP+.

10G upgrade to 40G/100G data center.

MPO Connector

MPO Male with Pins MPO Female without Pins
Two other clearly visible features are the noses and guide grooves (keys) on the top side. The Female and Male need to be used together.

Pre-terminated MTP Technology-Polarity Type B (Cross)


The application above is for the MTP-LC harness cable connecting a QSFP+ port to (4)SFP+ ports directly.

In many existing DC environments, LC-MTP cables are used to support high density fiber trunks between switches, rack patch panels and main distribution cabling panels (MDA).

For example:

The above is the Eight-Fiber MTP-LC Assembly uses a pinless connector on one end for interfacing with the QSFP port on the Cisco Nexus 6000series, The other end contains four LC uniboot connectors, which provide connectivity to the SFP+ ports on the switch. The polarity of the assembly pairs the fibers from the MTP Connector from the outside to the inside; thus, fiber 1 and fiber 12 are a duplex pair, as are fiber 2 and fiber 11, etc.

Assembly Structure Illustration

12-Fiber Mini-Core Cable structure
MTP Hybrid Harnesses Fiber Patch Cables are terminated with MPO connector on one end and other end with LC, FC, SC, ST, or MTRJ connectors to meet a variety of fiber cabling requirements.
1.The default diameter of the MPO cable is 3.0mm.
2.The diameter of branch cable could be choose as 0.9mm,2.0mm,please kindly contact us at [email protected] for other diameter standard.
3.Due to Inventory was Changed frequently, 144 fibers cable will be instead of by 12x12Fiber cable when the total order volume is less than 1000m.
4.F-tone can also custom the pulling eyes, welcome to contact us if you need.

MTP/MPO Machinery & Testing Equipment

1
Our adopt industry's leading high-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2
The industry leading device of 3D interferometer provides verification of MTP/MPO polishing process, the interferometer making all parameters of hte polished MT ferrule complies and exceeds industry standards.
3
After the 3D interference detection, the flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblies.

MPO Termination

Type Single mode Single mode Multi mode
(APC polish) (PC polish) (PC polish)
Fiber count 8, 12, 24 etc. 8, 12, 24 etc. 8, 12, 24 etc.
Fiber type G652D, G657A1 etc. G652D, G657A1 etc. OM1, OM2, OM3 etc.
Maximum Insertion Loss Elite Standard Elite Standard Elite Standard
Low Loss Low Loss Low Loss
≤0.35 dB ≤0.70 dB ≤0.35 dB ≤0.70 dB ≤0.35dB ≤0.60dB
Return Loss ≥60 dB ≥60 dB N/A
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃ ~ +80℃ -40℃~ +80℃ -40℃~ +80℃
Test Wavelength 1310nm 1310nm 850nm

Common Termination

Type Single mode Multi mode
(UPC APC polish) (UPC polish)
Insertion Loss ≤0.30dB ≤0.30dB
Return Loss ≥55 dB ≥60 dB ≥25 dB
Durability ≥1000 times ≥1000 times
Operating Temperature -40℃ ~ +80℃ -40℃ ~ +80℃
Test Wavelength 1310nm 850nm

Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters,gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters,gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters,gigabit up to 1000m

Make To Order

Fiber Type Fiber Standard Fiber Count Cable Type Termination Cable Length(m) Breakout Length 1&2(Inches) Breakout Termination Polish Type
OM4
OM3
OS1/2
OM2
OM1		 12 Fibers 8~144 Fibers LSZH Bunch
LSZH Ribbon
Riser Bunch
Riser Ribbon		 First Connector:
MPO Female
MPO Male		 1~999 12~99
(36" is typical)		 3.0mm UPC
APC
24 Fibers 24~144 Fibers Second Connector:
LC Duplex/LC Simplex
SC Duplex/SC Simplex
ST Duplex/ST Simplex
FC Duplex/FC Simplex		 0.9μm (standard)
2.0mm
3.0mm

Note:Polishing connector (A): PC (multimode), APC 8° (single-mode)
Polishing connector (B) : PC (multimode/single-mode), APC 8° (single-mode)
Furcation length (B): 0.5m/0.3m for 1m total length
Type of protection connector: IP20
Patch cord Type: Minicore cable, round


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
