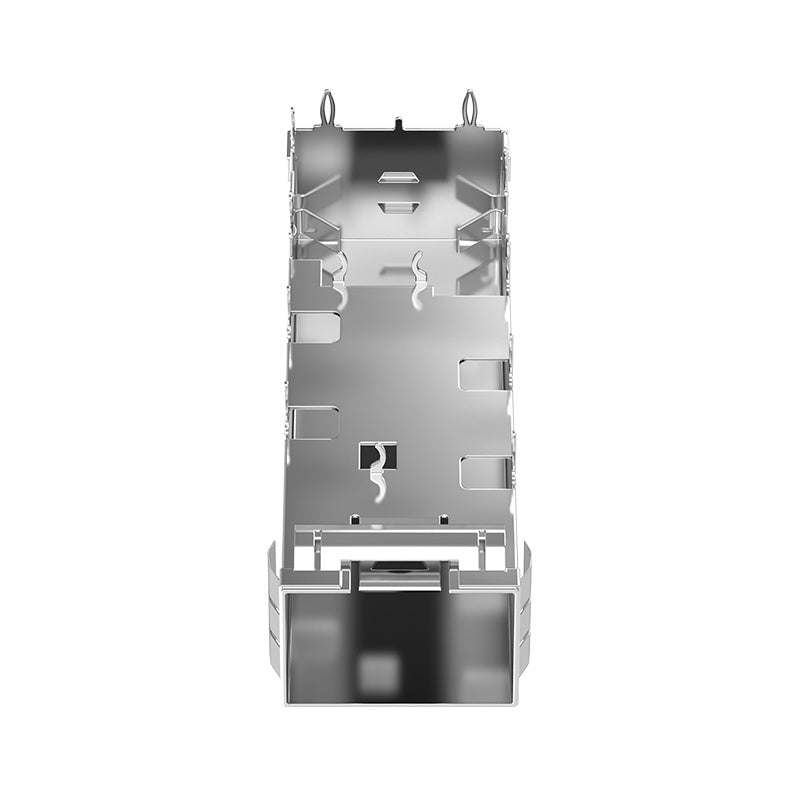

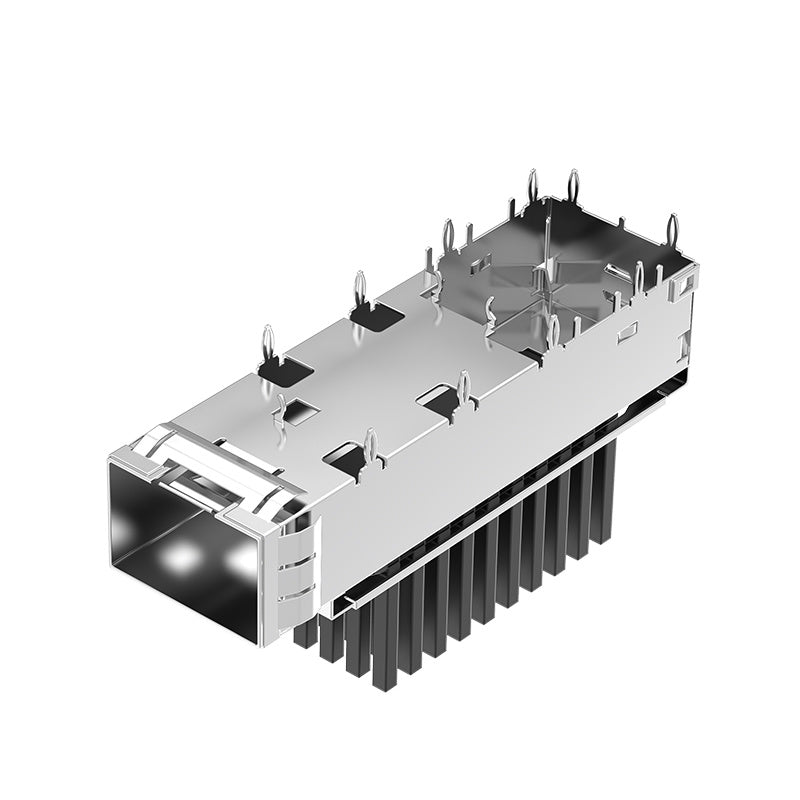

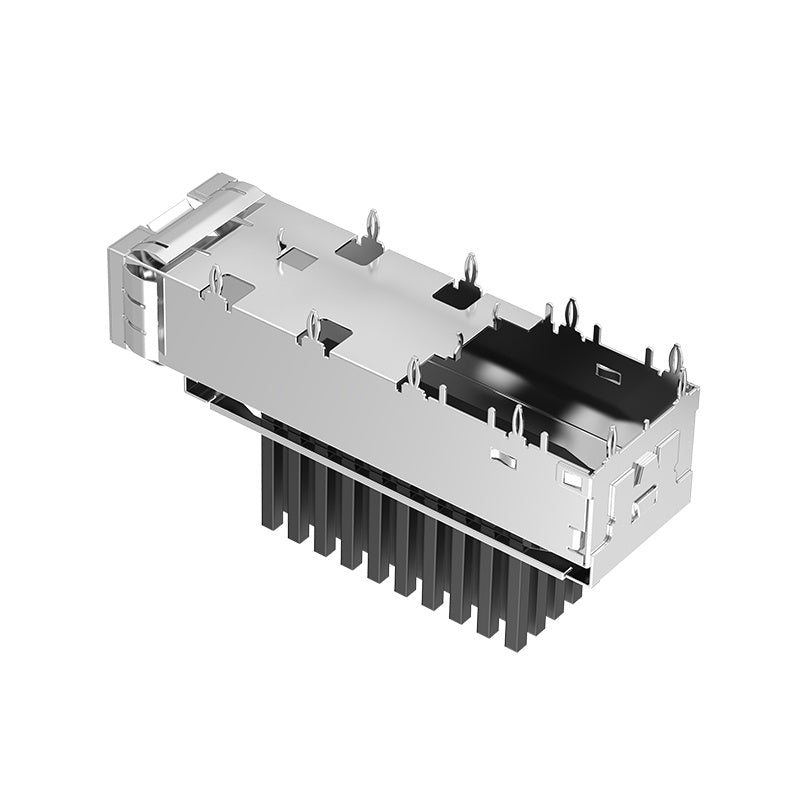

F-tone FT11BC02060 SFP+ 1x1 Cage With Heat Sink Press-Fit
The FT11BC02060 is a premium, single-port (1x1) SFP+ (Small Form-Factor Pluggable Plus) Cage engineered to house high-speed 10Gbps optical transceivers. Constructed from high-grade Nickel-plated Copper Alloy, this structural shielding component is designed for Right Angle, Through-Hole mounting on the host PCB. Utilizing a Press-Fit (compliant pin) termination method, it allows hardware manufacturers to bypass high-stress wave soldering, ensuring a highly reliable, solderless mechanical assembly.
Advanced Thermal Management and EMI Containment
Running 10G+ optical networks generates significant thermal loads. To address this, the FT11BC02060 integrates a robust top-mounted Heat Sink to effectively dissipate heat away from the inserted transceiver module, preventing thermal throttling. Additionally, the cage is equipped with heavy-duty EMI Springs around the bezel opening, providing superior Electromagnetic Interference (EMI) containment and grounding the chassis panel to ensure pristine high-speed signal integrity.
Engineered for Extreme Ruggedized Environments
Surpassing standard industrial thermal specifications, this SFP+ cage operates flawlessly across an extreme temperature range of -55°C to +85°C. This exceptional cold-weather resilience makes it the ultimate mechanical housing for equipment deployed in severe environments. Typical applications include outdoor 5G telecom base stations, ruggedized edge servers, aerospace communication arrays, and heavy-duty industrial network switches.
Technical Specifications & Structural Features
- Solderless PCB Assembly: Designed with Press-Fit termination pins, reducing thermal stress on the motherboard during manufacturing and lowering overall PCB assembly costs.
- Integrated Cooling: Features a high-efficiency heat sink designed to maintain optimal operating temperatures for 10GBASE-R optical transceivers or Direct Attach Copper (DAC) cables.
- Premium EMI Shielding: Built with robust Copper Alloy and Nickel plating, combined with precision EMI springs, to block RF leakage and meet stringent FCC/CE emission standards.
- Extreme Thermal Resilience: Withstands severe environmental conditions, functioning reliably down to -55°C for specialized military, aerospace, and polar deployment hardware.
- Standardized Matrix: 1x1 port configuration supplied in secure Tray Packaging, facilitating smooth handling for high-volume hardware production lines.
| Part Number | FT11BC02060 | Part Status | Active |
| Connector Style | Cage | Connector Type | SFP+ |
| Cage | COPPER ALLOY,Ni PL ATED | PACKAGING | TRAY PACKAGING |
| Port Matrix Configuration | 1x1 Port | Number of Ports | 1 |
| Operating Temperature Range | -55 – 85°C | Mounting Style | Through Hole, Right Angle |
| Included Lightpipe | - | Termination | Press-Fit |
| Height (Inches/mm) | 14.75/0.581 | Length (Inches/mm) | 49.10/1.933 |
| Width (Inches/mm) | 14.00/0.551 | EMI Containment Feature Type | EMI Springs |
