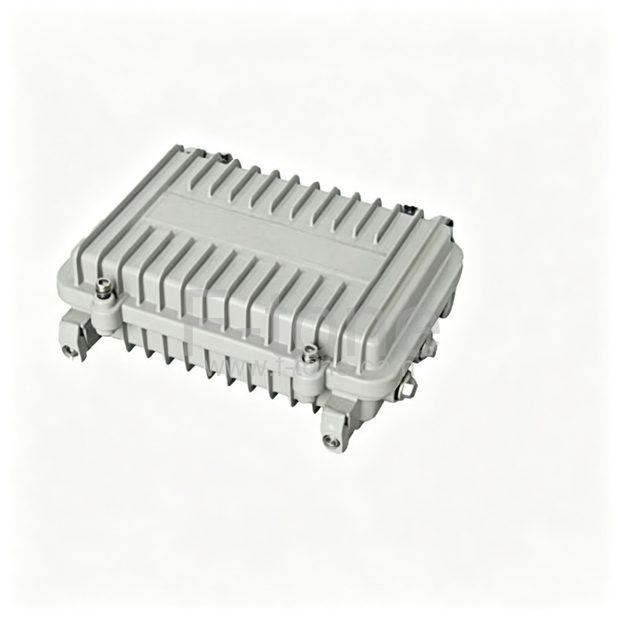

Part Number: FT3200
FT3200 EOC master is single-channel-100M indoor equipment, with carrying capacity of 253 EOC slaves.
Features
- Good anti-jamming capability with OFDM (kind of MCM, Multi-Carrier Modulation) and cFMnnel-adaptive technology.
- Uses current broadcast and TV HFC network to provide the customers with digital TV, interactive TV and broadband service
- Easy construction, plug-and-play, fast deployment, no need for repaving cable and interrupting persons
- Highly effective filter, lower interference to CATV
- Supply VLAN, IGMP and QoS
- Support SNMP, WEB and CLI management
- Support SNMP, WEB and CLI management
- Support integrated management for slaves
- Support AC220V and AC60V power supply
Specification
| System Parameter | Technical Index |
|---|---|
| System Bandwidth | Physical layer data rate 224Mbps |
| CSMA/CA, TDMA(In the Future) | |
| Modulation | BSPK, QPSK, 1024/256/64/16/8-QAM, ROBO |
| MAC Protocol | TDMA and CSMA |
| EOC technology | HomePlug AV |
| Frequency | 7.5 ~ 35MHz |
| Protocol and Standard | IEEE 802.1Q |
| IGMP v1, v2 | |
| IEEE 802.1P QoS | |
| NMS | WEB; CLI; SNMP |
| Data Interface | One 10/100Base-TX RJ45 input port |
| Auto MDI/MDIX | |
| Comply with 802.3, IEEE802.3u | |
| TV Interface | Two RF ports |
| Metric thread F type | |
| Output level: 108dBμV | |
| Insertion Loss: <1dB | |
| Impedance: 75Ω | |
| Hybrid Interface | One RF hybrid signal output port |
| Metric thread F type | |
| Frequency: 2-870MHz | |
| Output Level: 108dBμV | |
| Impedance: 75Ω | |
| Light Indicator | ETH1 ETH2 (Ethernet port LED) |
| LINK (link LED) | |
| Sys (system LED) RUN (RUN LED) | |
| PWR (power LED) | |
| Distance | >700m |
| Power | AC220V /AC60V |
| Power Consumption | <6W |
| Dimension | 216mm(length)×178mm(width)×38mm(height) |
| Working Temperature | -20°C~ +80°C |
| Storage Temp | -25°C~ +75°C |
| Humidity | 20% ~ 85%(non-condensing) |
| Storage Humidity | 10% ~ 90%(non-condensing) |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
