Part Number: FT3202W

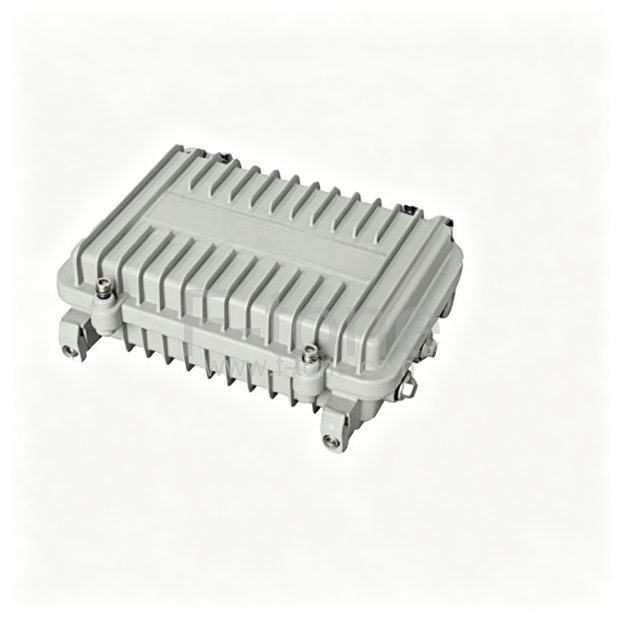

Two-channel-100M EOC master outdoor type
FT3202W is two-channel-100M outdoor equipment, with carrying capacity of 253 slaves per channel, total 506 slaves. It can work in atrocious weather with good stability because of its waterproof and lightproof shell
Features
- Supply 2 hybird signal output ports, each port can connect to maximum 253 users
- Highly adaptable to network, amplifier and distributor
- Highly effective filter, lower interference to CATV
- Supply VLAN, IGMP and QoS
- Support SNMP, WEB and CLI management
- Support remote software upgrade
- Support integrated management for slaves
- Support AC220V and AC60V power supply
- Supply two data interfaces
Specification
| System Parameter | Technical Index |
|---|---|
| System Bandwidth | Physical layer data rate 200Mbps |
| IP data throughput 100Mbps per channel | |
| Modulation | OFDM;BSPK, QPSK, 1024/256/64/16/8-QAM |
| MAC Protocol | TDMA and CSMA |
| EOC technology | HomePlug AV |
| Frequency | 7.5 ~ 30MHz |
| EOC module | 2 |
| Carrying Capability | 253 per channel, total 506 slaves |
| Protocol and Standard | IEEE 802.1Q |
| IGMP v1, v2 | |
| IEEE 802.1P QoS | |
| NMS | WEB; CLI; SNMP |
| Data Interface | Two 10/100Base-TX RJ45 input port |
| Auto MDI/MDIX | |
| Comply with 802.3, IEEE802.3u | |
| TV Interface | Two RF ports |
| Metric thread F type | |
| Output level: 108dBμV | |
| Insertion Loss: <1dB | |
| Impedance: 75Ω | |
| Hybrid Interface | Two RF hybrid signal output ports |
| Metric thread F type | |
| Frequency: 2-870MHz | |
| Output Level: 108dBμV | |
| Impedance: 75Ω | |
| Light Indicator | ETH1 ETH2 (Ethernet port LED) |
| LINK (link LED) | |
| Sys (system LED) RUN (RUN LED) | |
| PWR (power LED) | |
| Distance | >700m |
| Power | AC220V /AC60V |
| Power Consumption | 7W |
| Dimension | 310mm(length)×220mm(width)×120mm(height) |
| Working Temperature | -20°C~ +80°C |
| Storage Temp | -25°C~ +85°C |
| Humidity | 20% ~ 85%(non-condensing) |
| Storage Humidity | 10% ~ 90%(non-condensing) |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
