Part Number: FT3204W

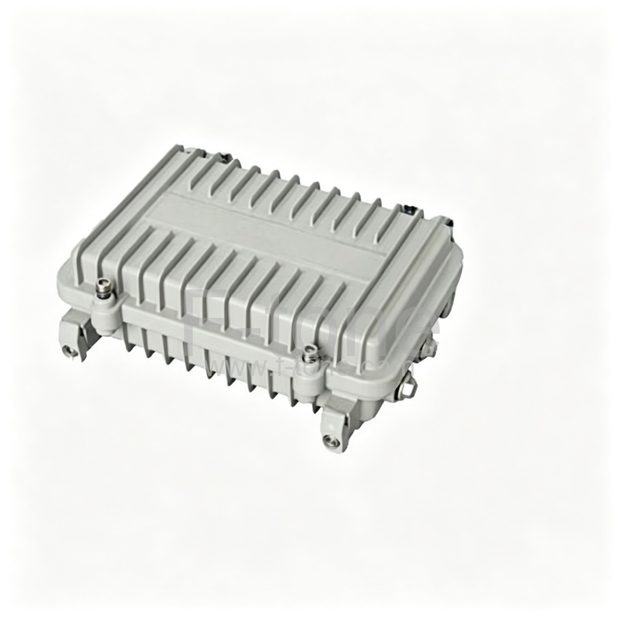

CATV EOC Master Four-channel 100M Outdoor Type
FT3204W is four-channel-100M outdoor equipment, with carrying capacity of 253 slaves per channel, total 1012 slaves. It can work in atrocious weather with good stability because of its waterproof and lightproof shell.
Features
- Supply 4 hybrid signal output ports, each port can connect to maximum 1012 users
- Good anti-jamming capability with OFDM (kind of MCM, Multi-Carrier Modulation) and?channel-adaptive technology
- Highly adaptable to network, amplifier and distributor
- Highly effective filter, lower interference to CATV
- Supply VLAN, IGMP and QoS
- Support SNMP, WEB and CLI management
- Support remote software upgrade
- Support integrated management for slaves
- Support AC220V and AC60V power supply
- Supply two data interfaces
Specification
| System Parameter | Technical Index |
|---|---|
| System Bandwidth | Physical layer data rate 200Mbps |
| IP data throughput 100Mbps per channel | |
| Modulation | OFDM;BSPK, QPSK, 1024/256/64/16/8-QAM |
| MAC Protocol | TDMA and CSMA |
| EOC technology | HomePlug AV |
| Frequency | 7.5 ~ 30MHz |
| EOC module | 4 |
| Carrying Capability | 253 per channel, total 1012 slaves |
| Protocol and Standard | IEEE 802.1Q |
| IGMP v1, v2 | |
| IEEE 802.1P QoS | |
| NMS | WEB; CLI; SNMP |
| Data Interface/td> | Four 10/100Base-TX RJ45 input port |
| Auto MDI/MDIX | |
| Comply with 802.3, IEEE802.3u | |
| TV Interface | Four RF ports |
| Metric thread F type | |
| Output level: 108dBμV | |
| Insertion Loss: <1dB | |
| Impedance: 75Ω | |
| Hybrid Interface | Four RF hybrid signal output ports |
| Metric thread F type | |
| Frequency: 2-870MHz | |
| Output Level: 108dBμV | |
| Impedance: 75Ω | |
| Light Indicator | ETH1 ETH2 (Ethernet port LED) |
| LINK (link LED) | |
| Sys (system LED) RUN (RUN LED) | |
| PWR (power LED) | |
| Power | AC220V /AC60V |
| Power Consumption | 14W |
| Dimension | 310mm(length)×220mm(width)×120mm(height) |
| Working Temperature | -30°C~ +80°C |
| Storage Temp | -40°C~ +85°C |
| Humidity | 20% ~ 85%(non-condensing) |
| Storage Humidity | 10% ~ 90%(non-condensing) |
