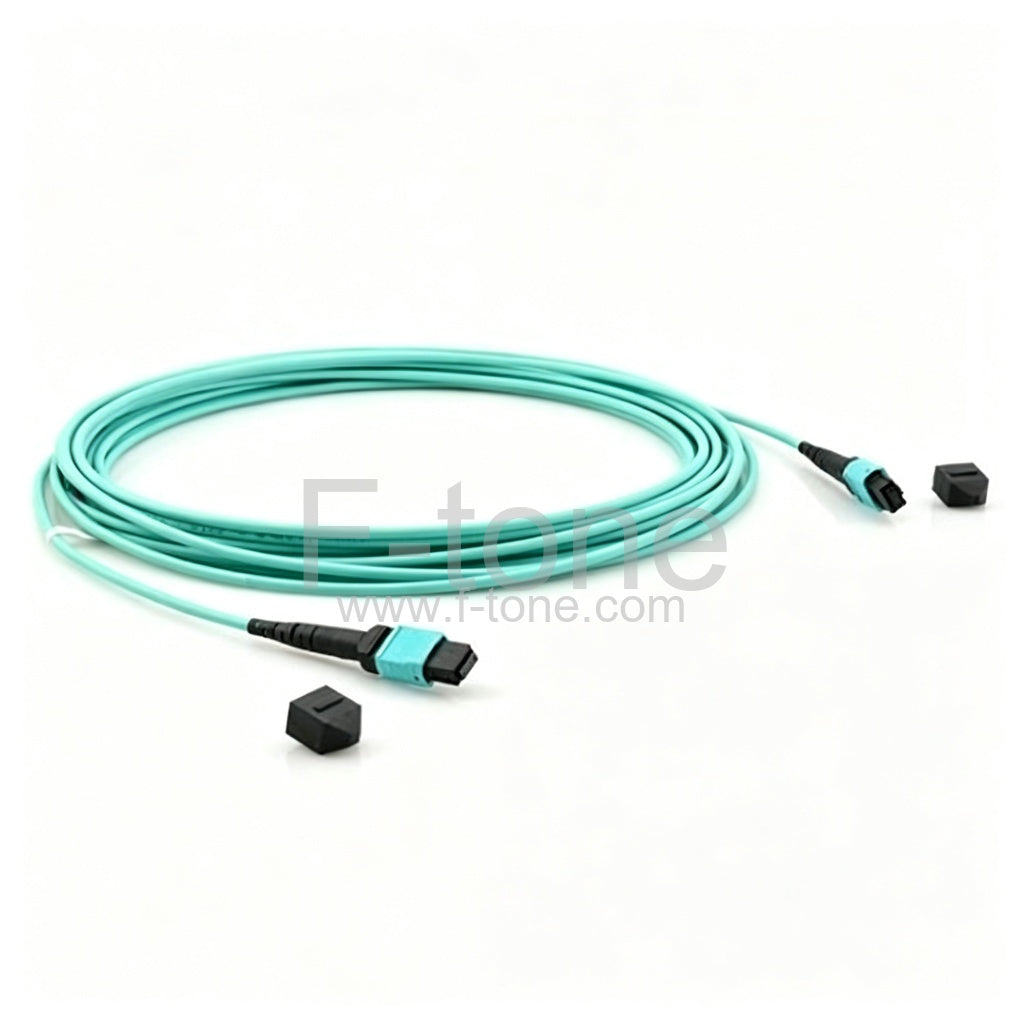

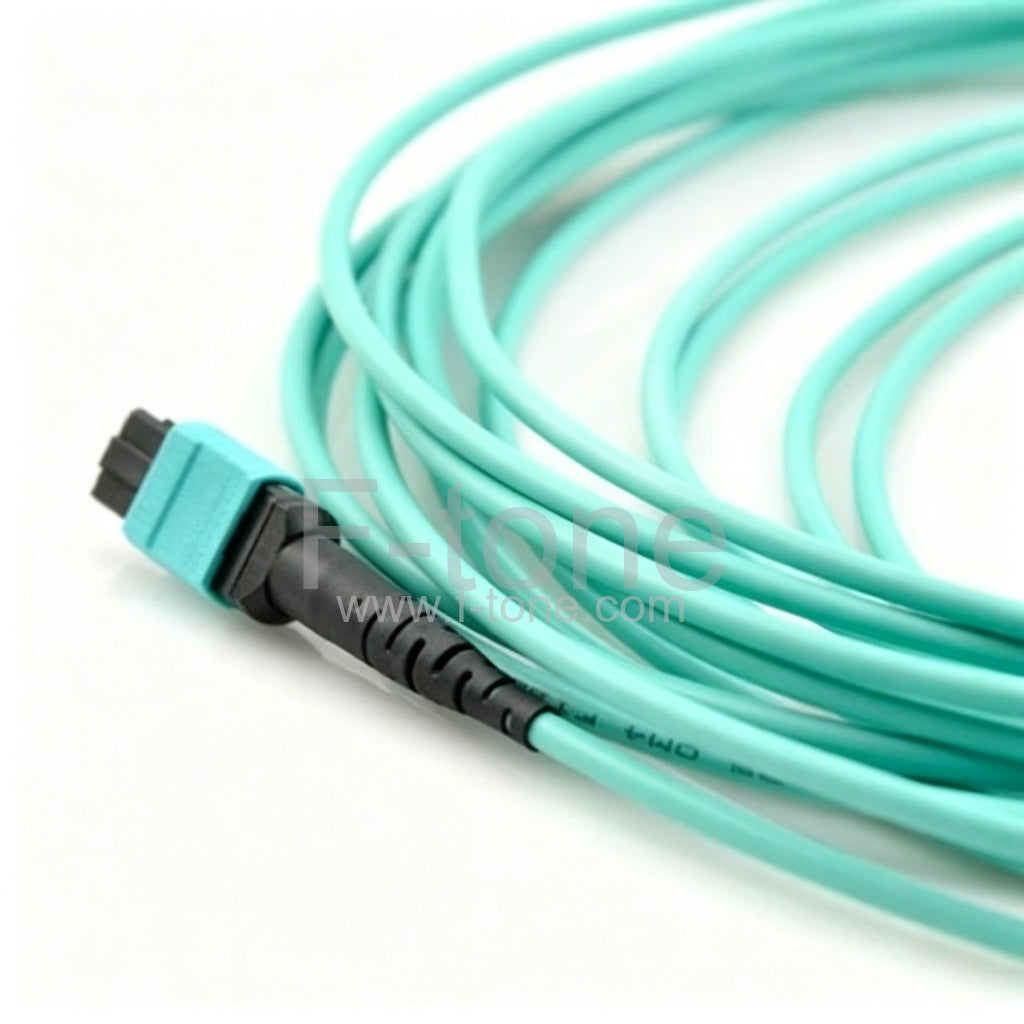

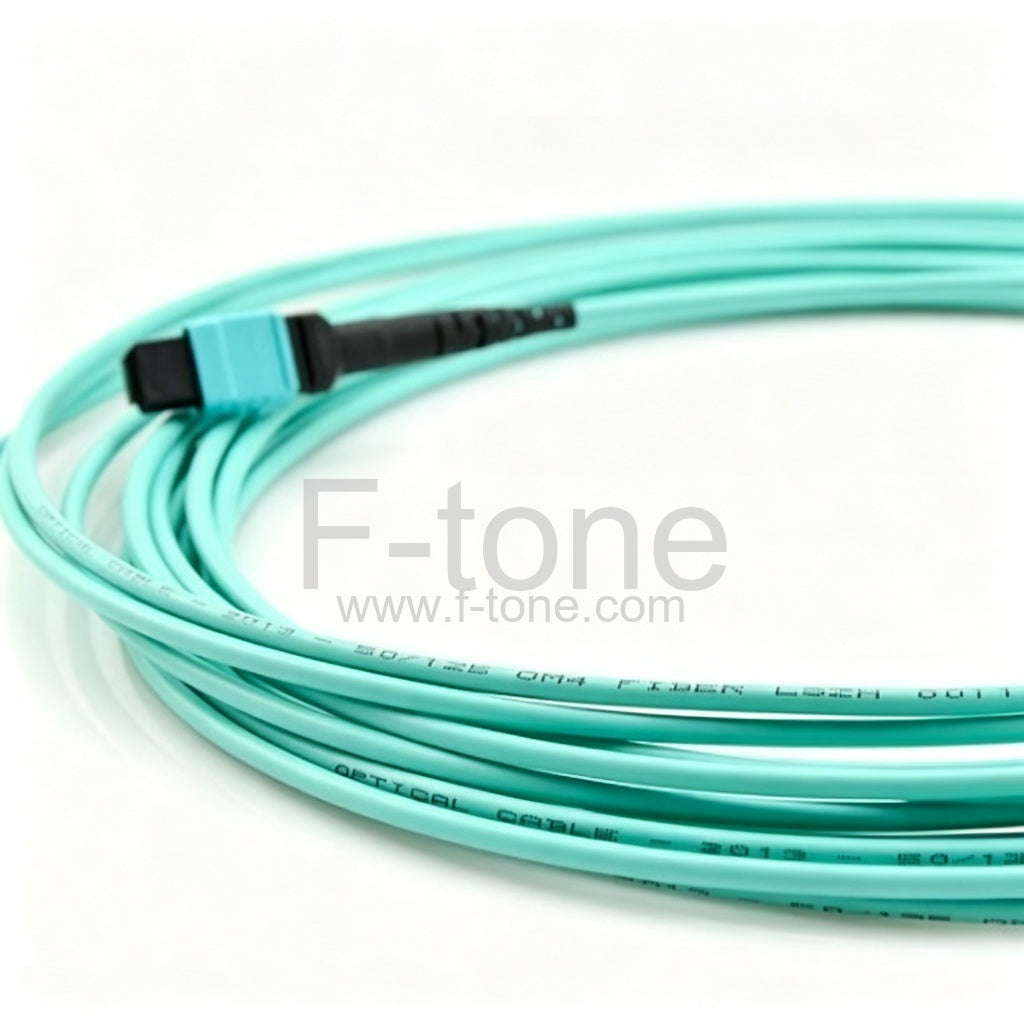

48 Fibers Single-Mode 12 Strands MPO Trunk Cable 3.0mm LSZH/Riser

48 Fibers Single-Mode 12 Strands MPO Trunk Cable 3.0mm LSZH/Riser

View full details

Part Number: FT48SM-2MPO-X

48 Fibers, MPO to MPO, 9/125 Single Mode Fiber, 12 Standard - MPO Backbone Trunk Cable

MPO is the high dense degree of optical fiber pre-connect system,which is generally use in three areas.

  • The data centra application with high dense degree environment
  • The optical fiber to the building
  • The internal connector application in fiber equipment such as Splitter, 40G /100G SFP and SFP+.


    • F-tone's MPO fiber patch cable is compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard. It can be widely used for

10G upgrade to 40G/100G data center.


MPO Connector Types

MPO Male with Pins
MPO Female without Pins
Two other clearly visible features are the noses and guide grooves (keys) on the top side.(Note: Female connector need to connect with male connector type.)

Pre-terminated MPO Technology-Polarity

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

Assembly Structure Illustration



MPO Trunk Fiber Patch Cables are terminated with MPO connector on both end.
1.The default diameter of the MPO cable is 3.0mm.
2.The default color of the single mode MPO connector is Green.
3.The diameter of branch cable could be choose as 0.9mm,2.0mm,please kindly contact us at [email protected] for other diameter standard.
4.Due to Inventory was Changed frequently,48 fiber cable will be instead of by 4x12 Fiber cable when the total order volume is less than 1000m.
5.F-tone can also custom the pulling eyes, welcome to contact us if you need.


MTP/MPO Machinery & Testing Equipment




1
Our adopt industry's leading high-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2
The industry leading device of 3D interferometer provides verification of MTP/MPO polishing process, the interferometer making all parameters of hte polished MT ferrule complies and exceeds industry standards.
3
After the 3D interference detection, the flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblies.


Parameter Reference

Type Single mode Single mode Multi mode
(APC polish) (PC polish) (PC polish)
Fiber count 8, 12, 24 etc. 8, 12, 24 etc. 8, 12, 24 etc.
Fiber type G652D, G657A1 etc. G652D, G657A1 etc. OM1, OM2, OM3 etc.
Maximum Insertion Loss Elite Standard Elite Standard Elite Standard
Low Loss Low Loss Low Loss
≤0.35 dB ≤0.70 dB ≤0.35 dB ≤0.70 dB ≤0.35dB ≤0.60dB
Return Loss ≥55 dB ≥45 dB ≥20 dB
Durability ≥200 times ≥200 times ≥200 times
Operating Temperature -10℃ ~ +70℃ -10℃ ~ +70℃ -10℃ ~ +70℃
Test Wavelength 1310nm 1310nm 850nm

Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters,gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters,gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters,gigabit up to 1000m

Make To Order

Fiber Type Cable Type Fiber Count Termination Cable Length Breakout Length (Inches) Breakout Termination Polarity Lableing
OM4
OM3
OS1/2
OM2
OM1		 LSZH Bunch
Riser Bunch
LSZH Ribbon
Riser Ribbon		 12
24
36
48
72
96
144		 First Connector
MPO Female
MPO Male
APC MPO Female
APC MPO Male		 1~999 12~99
(36" is typical)		 0.9mm
(standard)
2.0mm
3.0mm		 Style A
Style B
Style C		 Standard Custom
Second Connector
MPO Female
MPO Male
APC MPO Female
APC MPO Male



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
