Part Number: FTC-10GSFP-GB

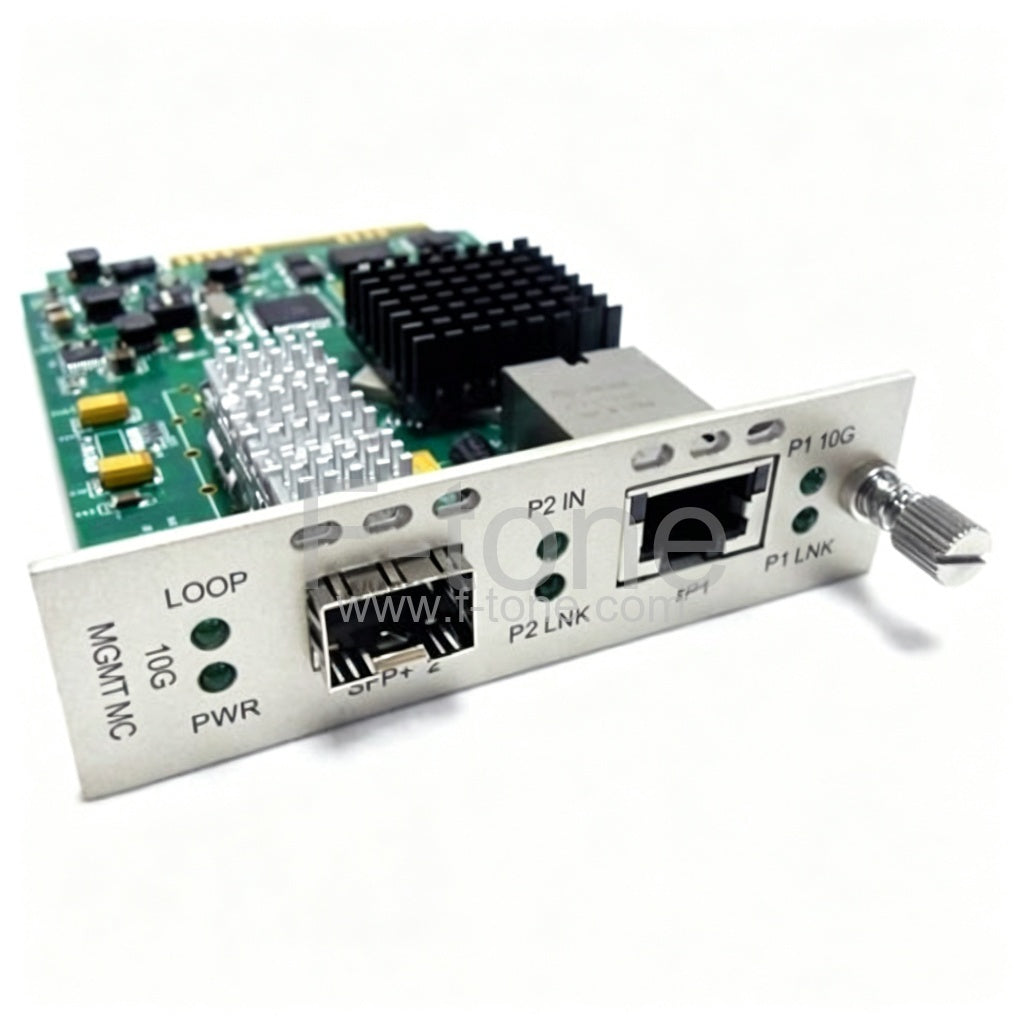

10GBASE-T Ethernet Media Converter SFP+ Port
F-tone Cooper to fiber 10 Gigabit Media Converter is one port 10G pluggable SFP+ and RJ45 port, supporting any compatible 10G SFP+ modules including support for following standards: 10GBase-SR, 10GBase-LR,10GBase-ER,10GBase-LRM, and 10GBase-ZR.
Features
- Support Jumbo Frame
- Transparent Transport and very low delay
- Support ITUT prescribed DWDM/CWDM wavelength
- Support DMI function for SFP+ fiber module
- Support Loopback test function
- Economic In-band Management function
- powerful Network Management function(Web，SNMP，Console etc.)
- Support hot plugging
- Support 2U Rack (16 channel) and standalone use
- Full State Led display
- Easy installation
- UTP cable length detection(only RJ45 interface)
Applications
- Connection between fiber to copper 10Gbps Ethernet equipment function as fiber-to-copper media converter for long distance transmission
- Media converter for network backbone(SAN, LAN, MAN)
- Can be applied in Telecommunication room, R&D laboratory, Data center, and etc.
Specifications
| Performance Data: Technical Indexes | Transmission Speed: 10Gb/s |
|---|---|
| Protocols: IEEE802.3an(10Gbase-T),IEEE802.3ae(10Gbase-SR/LR/ER/ZR) | Access Type: 10G LAN |
| Interface Type: Type: RJ45 To/From SFP+ | |
| Transmission Distance: | |
| SFP+ module: Up to 80Km | 10Gbase-T: 100meters Cat .6a cable |
| Maximum Packet Forwarding Rate: 14,880,950/S | |
| Network management information: Card type information | |
| SFP+ fiber module detection | SFP+ fiber module DMI function (Temperature, Voltage, Optical power) |
| Link status detector | Enable/Disabled Loopback test function |
| UTP cable length detection (only RJ45 interface) | Remote card's status monitor (only in pairs) |
| Power requirement: | |
| Standalone: AC 220V OR DC -48V | Rack-mountable : AC 85 ～ 220V OR DC -48V |
| Power consumption: ≤9W | |
| Work Environment: | |
| Operating Temp: 0~ 50 ℃ | Storage Temp: -10~ 70 ℃ |
| Humidity: 5%~90% (non-condensing) | |
| Dimension: | |
| Card: 11.5mm (W) × 78mm (D) | Standalone: 156mm (W) × 128mm (D) × 32mm (H) |
Picture Details:
Label Customized
Note: We can design Fiber Media Converter label for yourcompanyaccording to your requirements. Print any logo in the label is for free. If you need to print your company logo on the equipments, MOQ is 1000pcs and please contact [email protected] for more details.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
