Part Number: FTC-10GXFP-GB-C
10GBASE-T Ethernet XFP Port Centralized Management Media Converter
This product is high-performance 10G optical media converter, Using Optical - Electrical - Electrical wavelength conversion, realize the optical signal equilibrium amplification, clock extraction and optical regeneration, and with WDM (DWDM/CWDM) technology, can achieve optical signals transmit in a single fiber by single or multiple way over a long distance. Based on the existing network infrastructure, it can quickly improve the communication capacity, expand the bandwidth, while using low cost and high cost-effective solutions to manage and operate the system, easy operation and maintenance.
Note: This card should be installed in 2U Rack-Mount Multi-services Unified Platform Managed Chassis and the Centralized Network Management enable its remote devices management function.
Key Features
- Support Jumbo Frame
- Transparent Transport and very low delay
- Support ITUT prescribed DWDM/CWDM wavelength
- Support Loopback test function
- Support hot plugging
- Support 2U Rack (16 channel) and standalone use
- Full State Led display
- Easy installation
- Managed Chassis Power Supply
Instruction

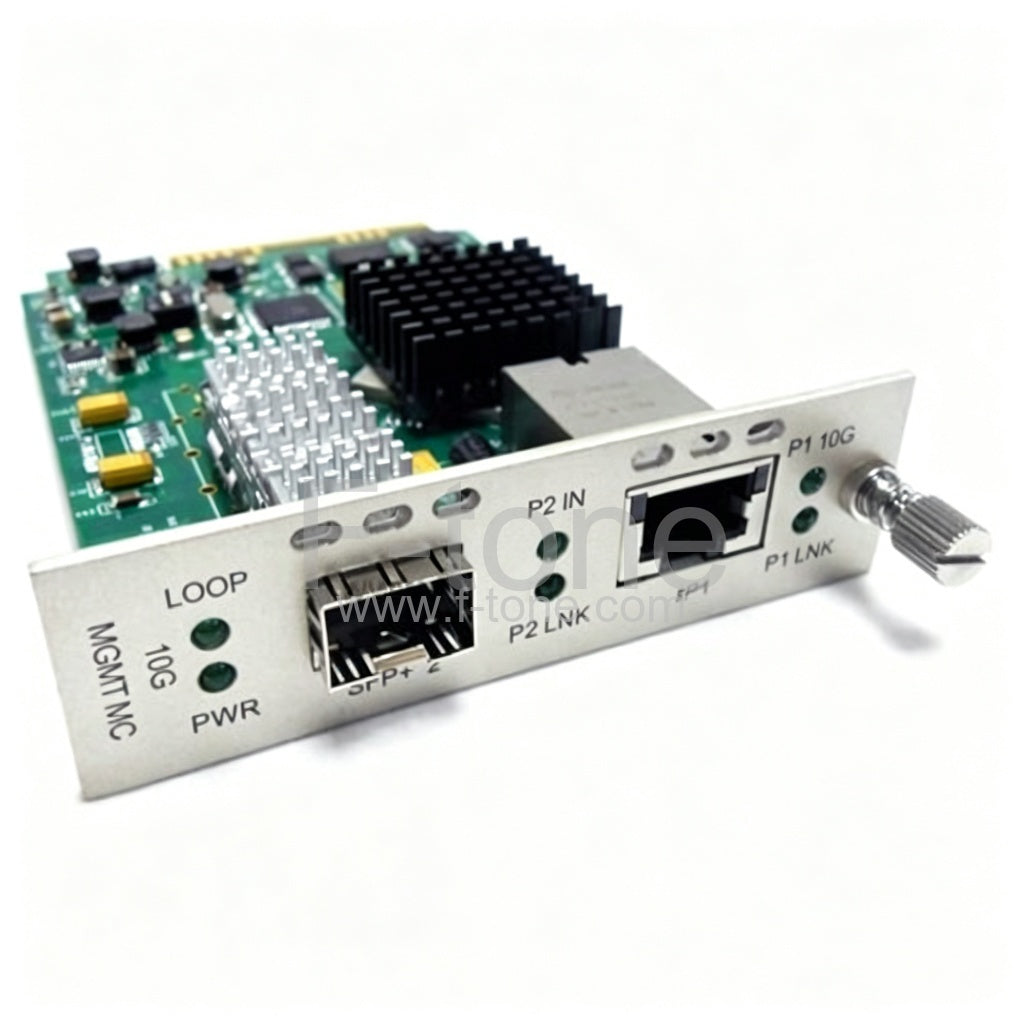

10G Media Converter Panel
LED Indicator
| LED | Colour | Explanation |
|---|---|---|
| P1 10G | Green | Bright: TP 10G |
| P1 LNK | Green | Bright: TP Link connected |
| Blink: indicates packet goes through | ||
| P2 IN | Green | Bright: SFP+2 or XFP2 module inserted |
| P2 LNK | Green | Bright: SFP+2 or XFP2 connect normally |
| LOOP | Green | Bright: Loopback is on |
| PWR | Green | Bright: Power is On |
Dip Switch Description
| SW1 | ON | Loopback is On |
|---|---|---|
| OFF | Loopback is Off | |
| SW2 | ON | Remote Control turn off |
| OFF | Remote Control turn on |
Specific Parameters
10G Media Converter
| Transmission mode | Technical Indexes |
|---|---|
| Transmission Speed | 10Gb/s |
| Protocols | IEEE802.3an(10Gbase-T) |
| IEEE802.3ae(10Gbase-SR/LR/ER/ZR) | |
| Access Type | 10G LAN |
| Interface Type | RJ45 To/From SFP+ |
| Or | |
| RJ45 To/From XFP | |
| Transmission Distance | SFP+ module: Up to 80Km |
| XFP module: Up to 80Km | |
| 10Gbase-T: 100meters Cat .6a cable | |
| Maximum Packet | 14,880,950/S |
| Forwarding Rate | |
| Power supply specifications and dimensions | AC: 100V~240V 50~60HZ |
| DC: 40V~50V 50~60HZ | |
| power consumption≤6W（without module） | |
| External AC-DC 20W | |
| communication module power | |
| 156mm * 128mm * 32mm |
