Part Number: FTC1S1R-SF-45-80FB

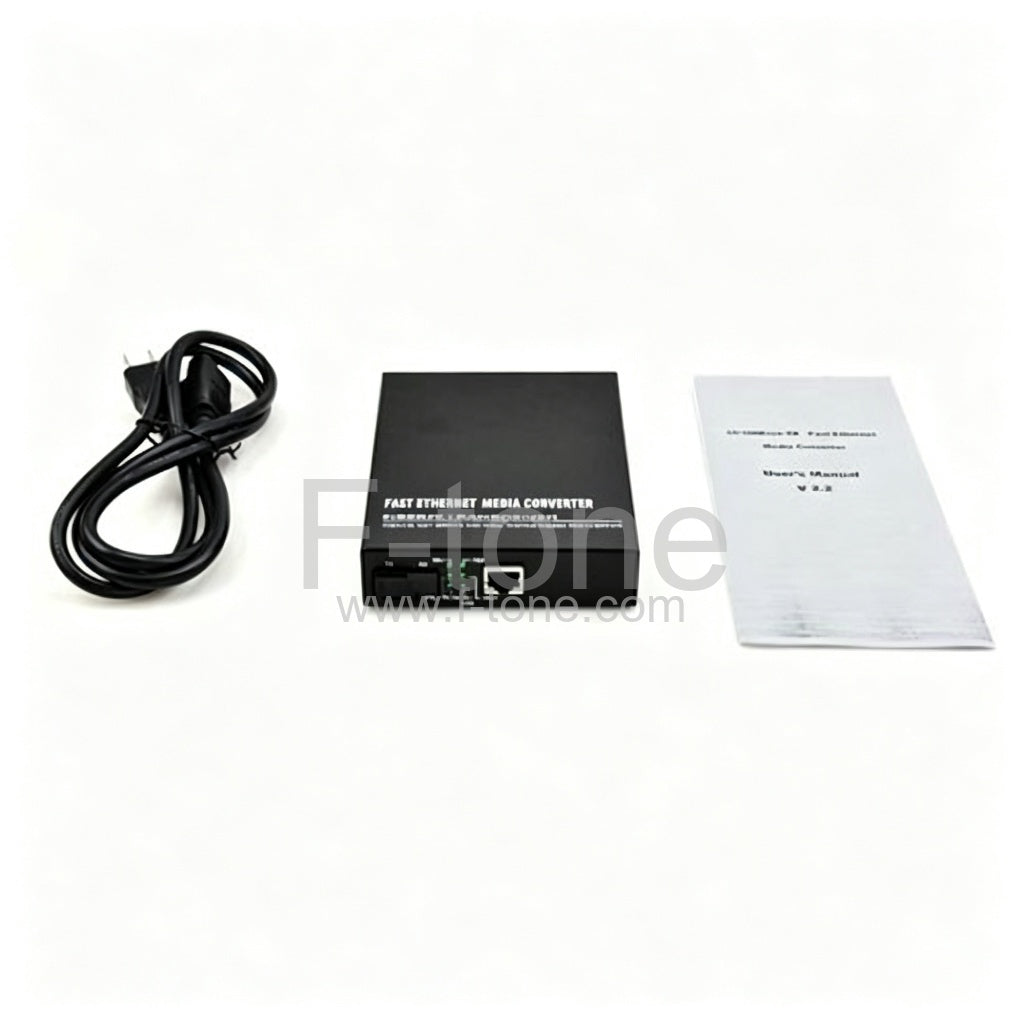

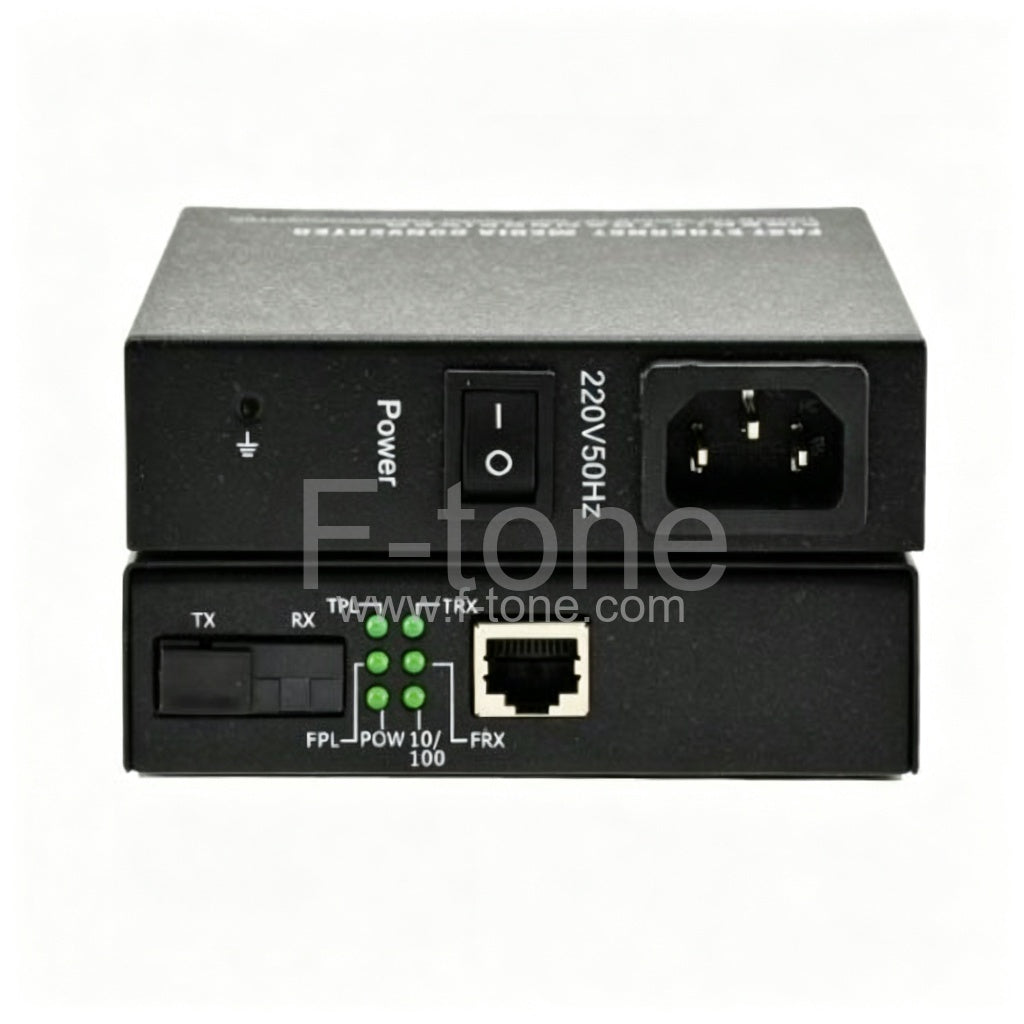

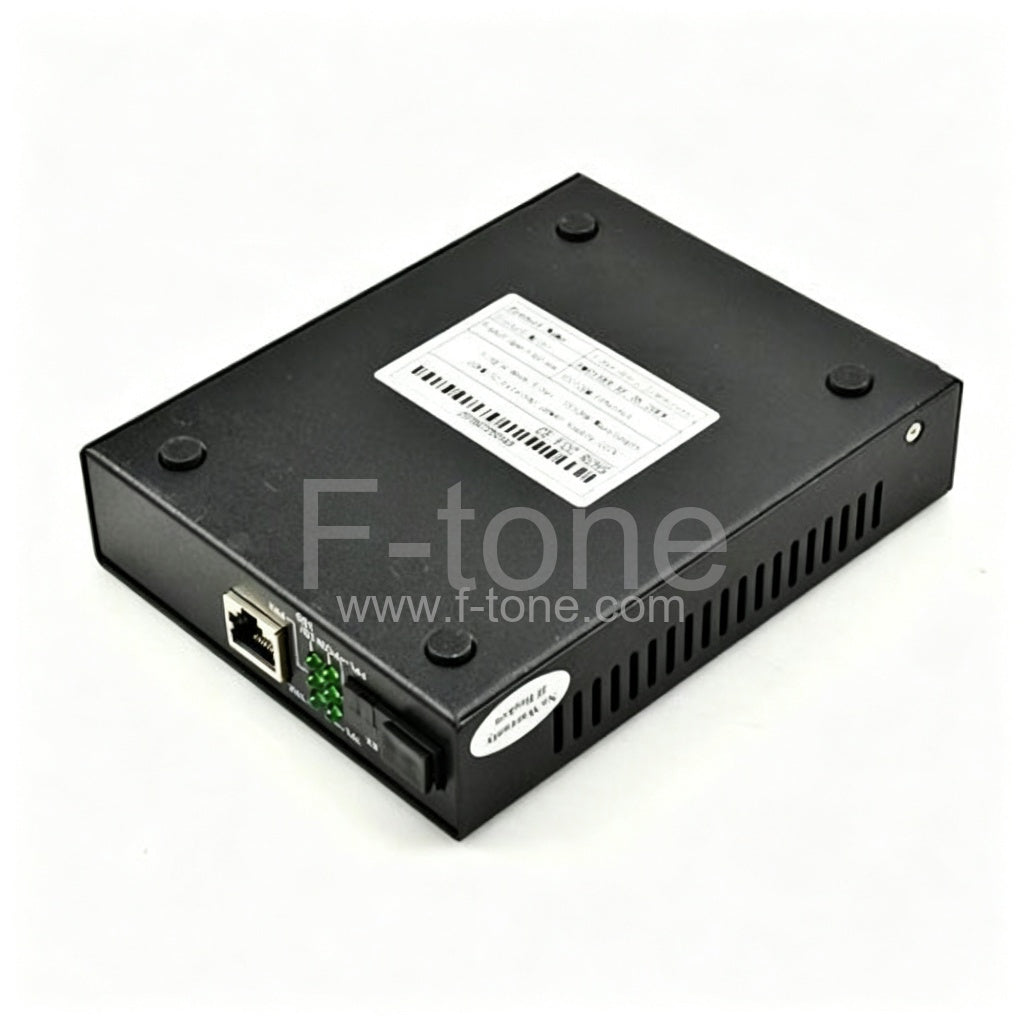

A Pair of BIDI WDM Single Fiber Ethernet Fiber Media Converter 10/100M 1490/1550nm 80km SC 1SC+1RJ45
Media converters can be used anywhere in the network to integrate newer technology with existing equipment to support new applications, technologies and future growth. Instead of costly, across-the-board upgrades, media converters can extend the productive life of the existing cabling as well as the active equipment.
F-tone.COM supply 10/100Base Ethernet Fiber Media Converters, 1000Base Gigabit Fiber Media Converter,SFP Fiber Media Converter, Options in singlemode dual fiber, multimode dual fiber and singlemode single fiber. We also supply Media Coverter Chassis, like 14 slot media converter chassis and 16 slot media converter chassis, used to manage the various media converters.
This item is a Pair of BIDI WDM Single Fiber Ethernet Fiber Media Converter 10/100 Base-TX to 100 Base-FX 1490/1550nm 80km SC Connector
Key Features
- 10/100Mbps auto-negotiation
- Supports IEEE 802.3x full-duplex flow control and back pressure half-duplex flow control
- Supports MAC self-learning
- Standards: IEEE802.3, IEEE802.3u, IEEE802.3x, 10/100Base-TX, 100Base-FX, 10/100/1000Base-TX, 1000Base-FX/LX
- LED status of Link, activity, Full/half duplex, speed and power on diagnostic function
- Extremely low power consumption and low heat
- Reliable and stable performance
Specifications
Note: Port Base VLAN is optional, please contact [email protected] for more details.
- UTP Port: 1-port RJ45
- UTP Rate: 10/100Mbps
- Fiber Port: Simplex SC, ST, FC available
- Fiber Rate: 100Mbps
- Fiber Wavelength: 1490/1550nm
- Fiber Mode: Single-mode
- Distance: 80km
- LED Indicator: TX LINK, FX LINK, TX ACT, FX ACT, PWR, FDX.
- Power Supply: External
- Working Temperature: -20~75°C
- Relative Humidity: 5%~90%
Label Customized
Note:Neutra or customized label are available per your requirements.please feel free to contact us at [email protected] for more details.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
