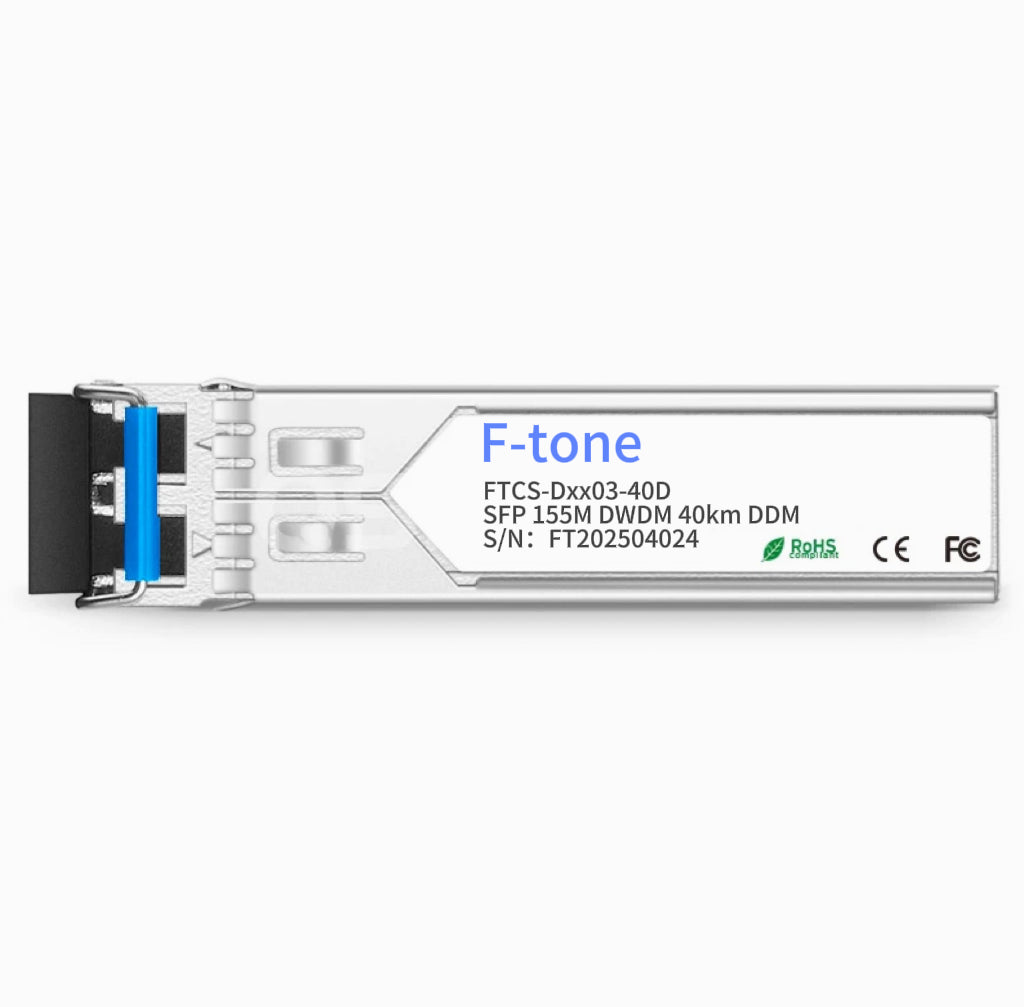

FTCS-Dxx03-40D SFP 155M DWDM 40km DDM Transceiver Module

FTCS-Dxx03-40D SFP 155M DWDM 40km DDM Transceiver Module

View full details

FTCS-Dxx03-40D SFP 155M DWDM 40km DDM Transceiver Module

Description
FTCS-Dxx03-40D series of transceiver modules are the perfect solution for low -speed communication networks.
These transceiver modules support data rates up to 200Mbps. The module is fully compliant with Small Form-Factor Pluggable (SFP) Transceiver Multi-Source Agreement (MSA). These transceiver modules provides the system designer with products to implement a range of FDDI and ATM designs at the 100Mbps/125Mbps rate and SONET/OC-3, SDH/STM-1 forTelecommunication.


Product Features
 DWDM Laser Diode Transmitter
 Up to 120 Km on 9/125μm SMF
 3.3V power supply
 LC duplex optical interface
 LVPECL/CML Differential Input /CML Output and LVTTL signal detect
 Class 1 Laser International Safety Standard IEC 825 Compliant
 Operating case temperature range (Standard：0 to +70℃) or (Extended： -20°C to +85°C)



Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

View all

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

View all

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
