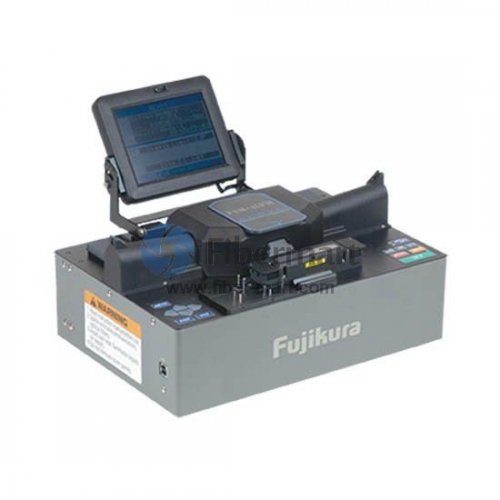

Fujikura FTM-45F Factory Fusion Splicers Kits

Fujikura FTM-45F Factory Fusion Splicers Kits

View full details

Part Number: FTM-45F

Fujikura FTM-45F Factory Fusion Splicers Kits

Today’s research and factory splicing applications require a tremendous amount of flexibility. Fujikura’s FTM-45F and FTM-45PM splicer are designed with both of these applications in mind.
The FTM-45F fusion splicer is designed to handle dissimilar fiber combinations with ease and splices various types of fibers. The FTM-45F splicer features Fujikura’s patented Sweep™ arc technology to minimize splice loss between different combinations of fibers.

Features

Capable of splicing a variety of standard and specialty fibers for use in photonic applications
Short cleave length capability
Ultra high strength splicing capability
Consistent splicing results with a wide variety of fiber types
Compatibility with Splicer ab™ splicing management software provides great flexibility to control splicing parameters for laboratory-type splicing
Compatibility with Splice Master® splicing management software enables smooth transition from development to production
USB PC interface

Specification
Applicable Fiber Types Standard Telecommunications fibers including SM,MM,DS, NZ-DSF, more than 50 Types of PM Fibers, Rare earth doped fibers including Er, Yb, etc.
Cleave Length 8-10mm with bare fiber clamping; 3-5mm with coating clamping
Applicable coating types Standard fiber holders compatible with 165μm, 250μm, 400μm, 600μm, 900μm, 900μm Loose buffer tube. Other holders available for alternative fiber diameters.
High Tensile Strength Splicing Performance Typical 2.5 Gpa (30N) with coating clamping
Viewing Method 5” TFT color LCD monitor with 350X, 270X, 175X, or 135X magnification, external RCA jack for NTSC video signal
Power Supply AC100-240V (50/60Hz) with ADC-10 adapter
Dimensions (FTM-45F) 311mm (W) x 218mm (D) x 133mm (H)
Weight 5.7kg (FTM-45F)
Standard Package for FTM-45F Kits
The FTM-45F fusion splicer comes with FH-40/45-250 fiber holders (pair), FH-40/45-400 fiber holders (pair), FH-40/45-900 fiber holders (pair), Clamp-45-125 (pair), Clamp-45-250 (pair), Clamp-45-400 (pair), Clamp-45-900 (pair), Clamp-45-80/400 (pair), spare electrodes (pair), ADC-10 AC adapter/battery charger, AC cord, operation manual, and transit case. Each kit includes a HJS-02 Hot Jacket Stripper, CT-32 Cleaver, SPA-HJS-030 Spacer for HJS-02, and an AC adapter for HJS-02 in addition to all the items listed above.

Specification
Applicable Fiber Types Standard Telecommunications fibers including SM,MM,DS, NZ-DSF, more than 50 Types of PM Fibers, Rare earth doped fibers including Er, Yb, etc.
Cleave Length 8-10mm with bare fiber clamping; 3-5mm with coating clamping
Applicable coating types Standard fiber holders compatible with 165μm, 250μm, 400μm, 600μm, 900μm, 900μm Loose buffer tube. Other holders available for alternative fiber diameters.
High Tensile Strength Splicing Performance Typical 2.5 Gpa (30N) with coating clamping
Viewing Method 5” TFT color LCD monitor with 350X, 270X, 175X, or 135X magnification, external RCA jack for NTSC video signal
Power Supply AC100-240V (50/60Hz) with ADC-10 adapter
Dimensions (FTM-45F) 311mm (W) x 218mm (D) x 133mm (H)
Weight 5.7kg (FTM-45F)


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
