Part Number: FTTA-OM2-LCU-STU-DX-LSZH

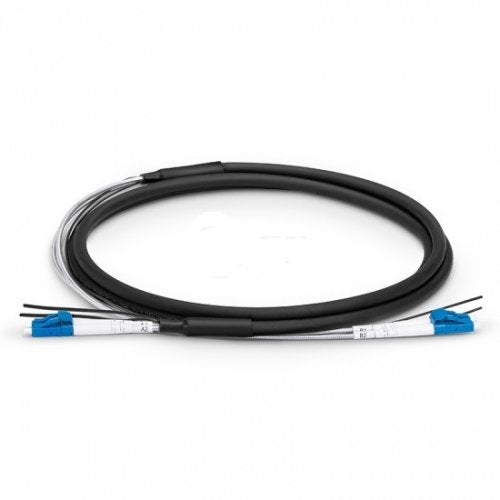

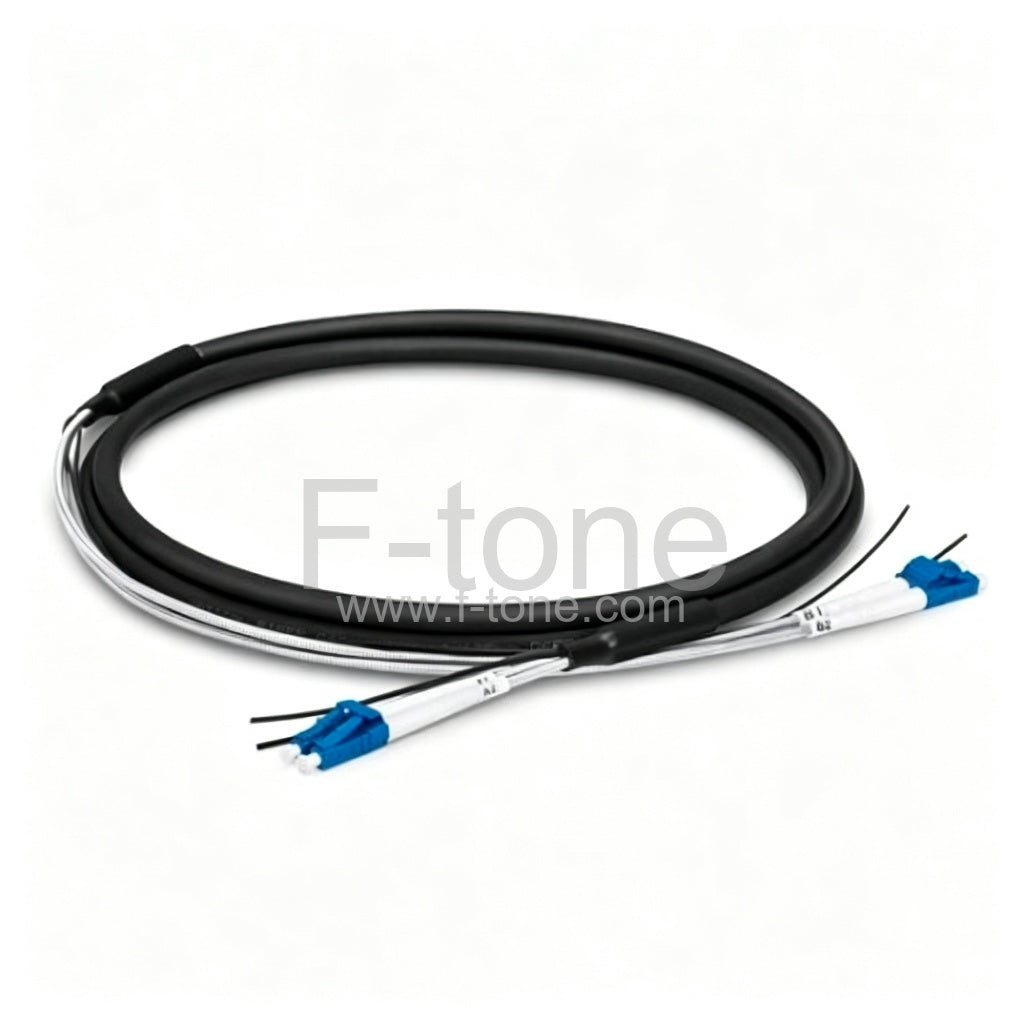

Fiber To The Antenna (FTTA) Patch Cable Armored LSZH for Outdoor Applications, LC to ST OM2 Multimode FTTA Armored fiber patch cable
Consisting of Corning fiber cable and LC UPC duplex connectors, the cable features superior crush resistance and a high degree of flexibility with the armored tube. Furthermore, the cable features a flame retardant LSZH jacket which is UV stabilized and highly resistant to chemicals commonly found in industrial environments, also suitable for both indoor and outdoor industrial installations.
| Connector Type | LC to ST | Polish Type | UPC to UPC |
|---|---|---|---|
| Fiber Mode | OM2 | Wavelength | 850/1300nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Fiber Grade | Corning G.657.A1 | Min. Bend Radius (Dynamic/Static) | 20/10D |
| Attenuation at 1310 nm | 0.36 dB/km | Attenuation at 1550 nm | 0.22 dB/km |
| Fiber Count | Duplex | Cable Jacket | Low Smoke Zero Halogen (LSZH) |
| Cable Diameter (Outer/Inner) | 7.0/2.0mm | Armored Breakout Length (End A/B) | 0.03/0.34m |
| Tensile Strength (Long Term/Short Term) | 400/200N | Crush Resistance (Long Term/Short Term) | 2200/1100N |
| Operating Temperature | -20~70°C | Storage Temperature | -40~80°C |
Product Spotlight
- Superior Flexibility
-
Corning G.657.A1 bend insensitive fiber
Excellent flexibility for remote traction
- Certification & Standards
-
IEC 61754 series compliant
Qualified to Telcordia GR-326-Core
ISO 9001, Reach, RoHS compliant
- Test Assured Program
-
Insertion loss and return loss testing
End-face inspection
3D interferometer test
Product Highlights
This type of specialized fiber patch cable is designed for harsh environment application such as high performance fiber-to-the antenna (FTTA) cabling for current 4G/LTE and 5G network and base station construction connecting AAU and RRU, also suitable for wireless horizontal and vertical cabling in indoor/outdoor environment.
Corning BIF cable can be stapled and bent around corners without sacrificing performance.

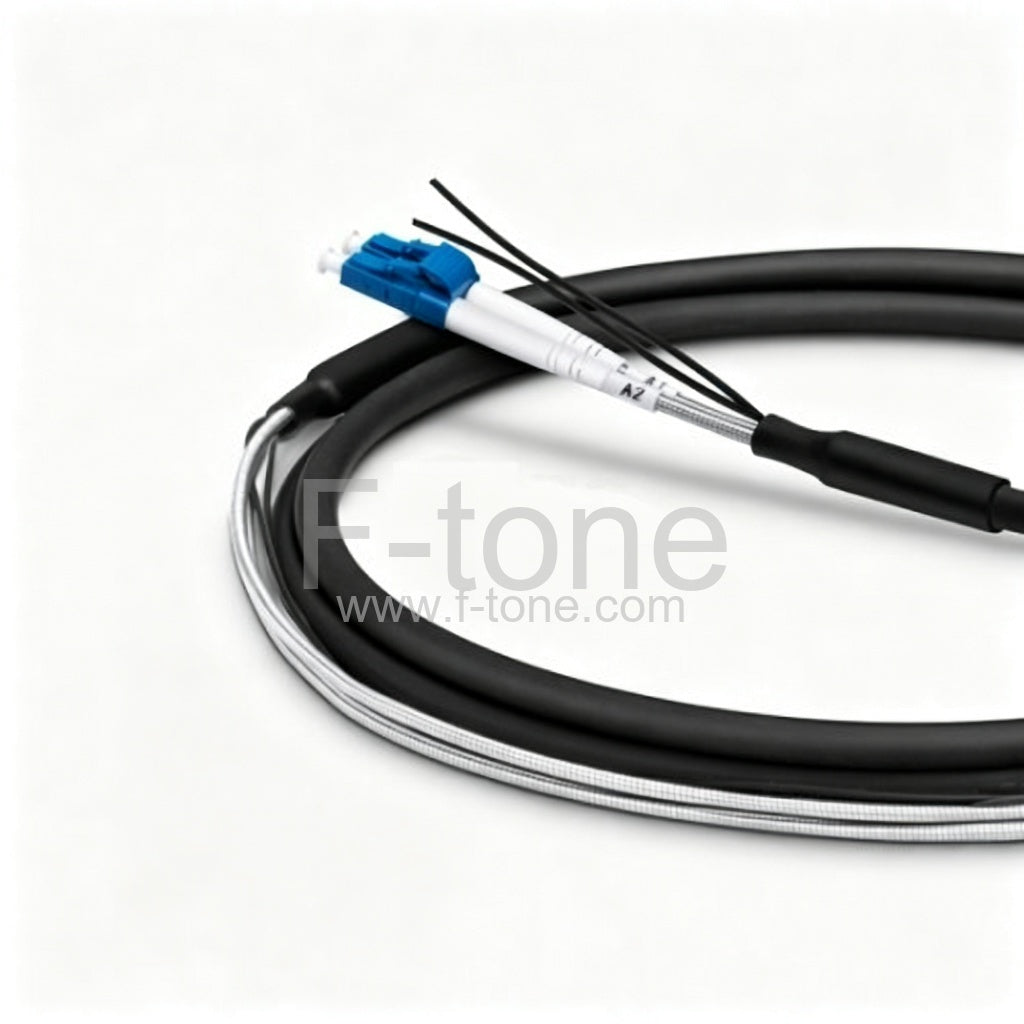

Hard spiral armored tube makes the FTTA Fiber Cable more stable and higher tensile strength.
Two strength members firm the cable and make it more convenient for pulling when installing.
Jacketed with compounds that emit limited smoke and no halogen when exposed to high heat sources.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
