FV-410 Desktop Fiber End-face Inspector for Patchcord Workshop

Part Number: FV-410

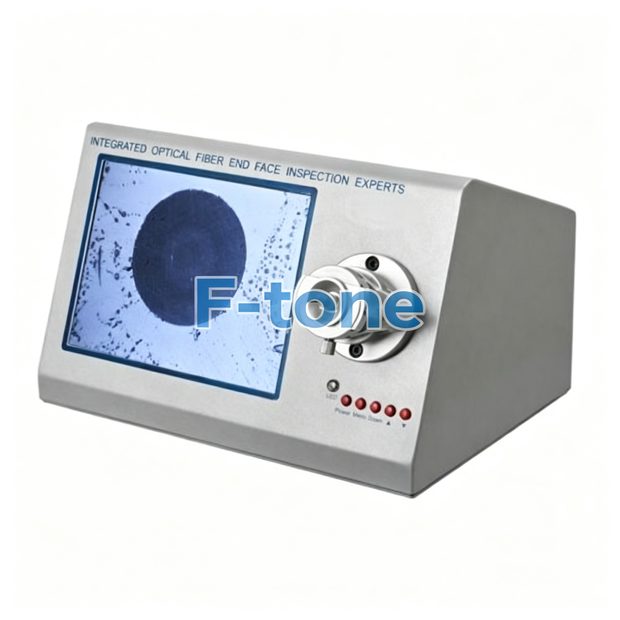

SUNMA FV-410 Desktop Fiber Optic Microscope

Model: FV-410P / FV-210P / FV-050P / FV-080P

Producing Area: Made in China

Key Features:

1.Available for inspecting fiber core in connecters;
2.Universal adapter accepts most ST, SC & FC 2.5mm / 1.25mm / MTRJ / MPO connector ferrules;
3.Magnification: 200X or 400X, deponding on customers choice;
4.Simple operation with rotation knob;
5.Build-in blue light provides extra sharp image.

Remark: Choose your preferable disply, CRT or LCD.

Desktop Fiber Optic Microscope(Incorporated)

Model: 410P-200, 200X / 400X

Producing Area: Made in China

Key Features:

1.Buit-in white light LED with coaxial illuminance;
2.Widely used in inspecting different fiber ends;
3.Good assistant in constructions, maintenance and experiment research;
4.Magnification：200X & 400X;
5.Power: 3 Piece of AAA alkaline batteries;
6.Light: White LED and long life with 100，000 hours ;
7.Weight: 600g / Size: 225mm×32mm;
8.Control：Turn on the light instantly;
9.Adapter: Universal adapter accepts most ST, SC & FC 2.5mm and 1.25mm connector ferrules.

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
