Part Number: FVM-100

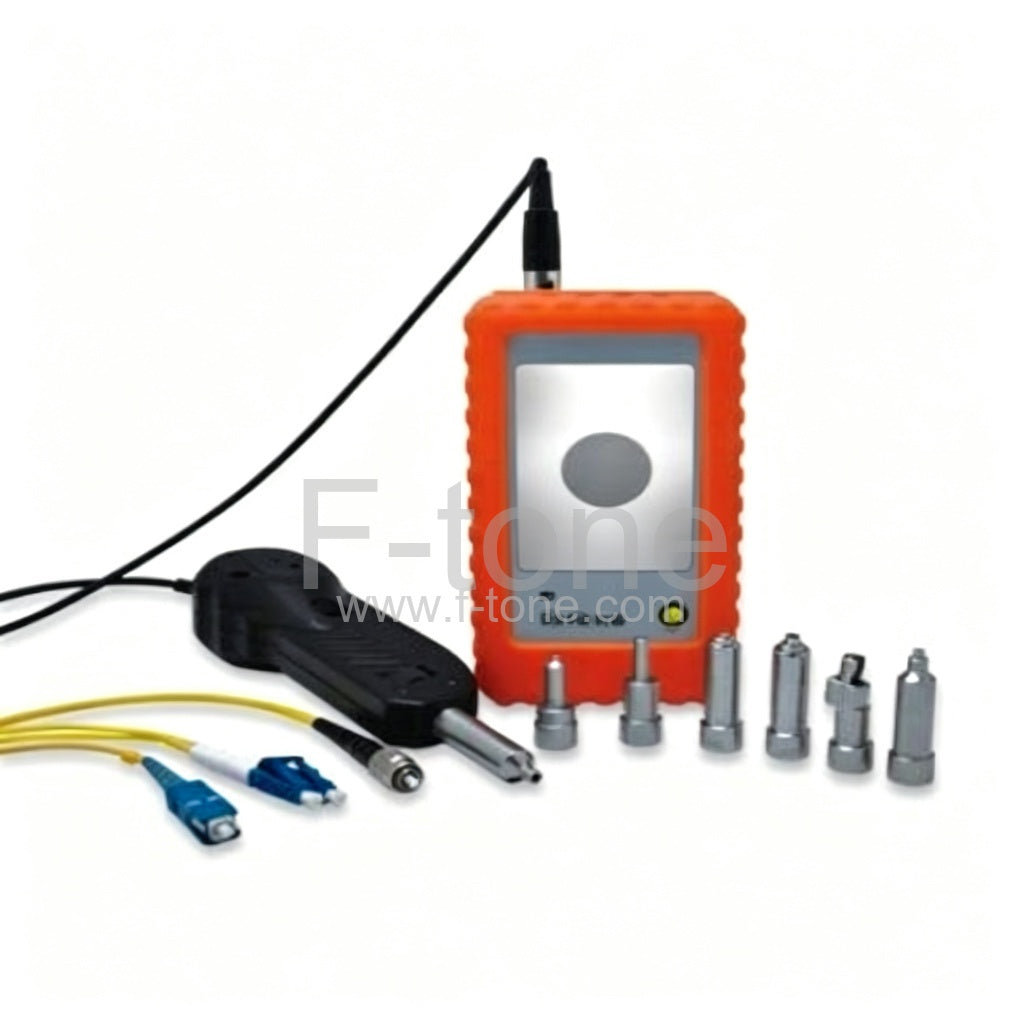

FVM-100 Handheld Fiber Probe for Fiber End-face Inspection with 3.5inch Display
Description
This product is a portable video microscope used to inspect all kinds of fiber optic terminations, especially for the female ones. It eliminates the need to access the backside of patch panels or disassemble hardw are devices which prior to inspection.
Features
For male and female adapters, Convenient for use
Widely used in DWDM, SDH, SONET etc.
Magnification: 250* via 3.5" 220,000 pixels TFT LCD
Available for USB 2.0 interface on PC and data saving
Specifications
| Magnification | 400x (9’’ Monitor) 250x (3.5’’ Monitor) |
| Resolution Ratio | 0.5 um |
| Display Screen | 3.5’’ TFT-Display Screen LCD, 960x240 pixels |
| Video Output | NTSC /PAL |
Other Parameters
| Power Supply | 3.7V 4500mA /5V 1A Li Battery |
| Weight | 1.5kg |
| Work/Storage | -20℃~+50℃ -30℃~+60℃ |
Application
| Tips Type | Function Description |
|---|---|
| 25-U-M | FC/SC/ST/E2000 patch cord UPC connector |
| 125-U-M | LC/MU patch cord UPC termination |
| 25-A-M | FC/SC/ST/E2000 patch cord APC connector |
| 125-A-M | LC/MU patch cord APC termination |
| 25-U-F | FC/SC/ST/E2000 UPC bulkhead |
| LC-U-F | LC UPC bulkhead |
| SC-A-F | SC APC bulkhead |
| FC-A-F | FC APC bulkhead |
| LC-A-F | LC APC bulkhead |
Order Information
| Standard Accessories | Inspection Probe x1 3.5’’ monitor x1 25-U-M x1 125-U-M x1 25-U-F x1 LC-U-F x1 Recharger ; Manual ; Carrying bag ; Li Battery |
|---|---|
| Optional Accessories |
25-A-M ; 125-A-M ; SC-A-F ; FC-A-F ; LC-A-F AV-USB 2.0 Converter |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
