Part Number: FWDM-1625-FM

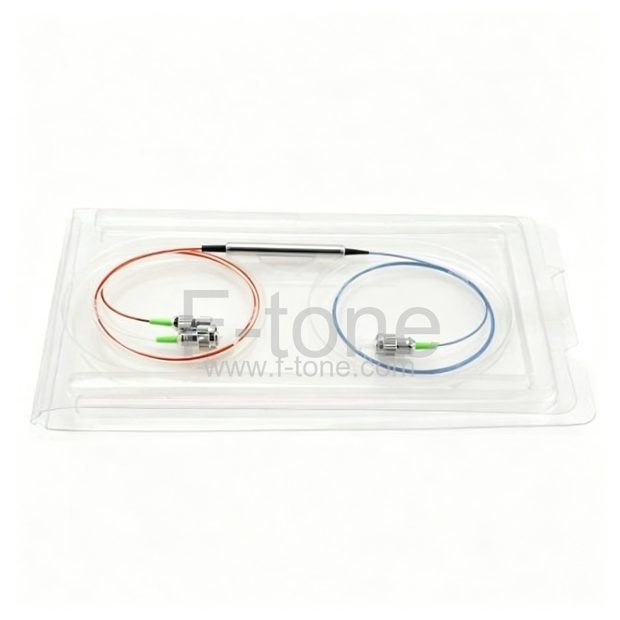

Optical Fiber Filter WDM FTTX 1625nm FT-FWDM-1625
The optical filter is an instrument that is used for wavelength selection, which can select required wavelengths from a large number of wavelengths and reject the addition wavelengths. It can used in wavelength selection, the noise filter of the optical amplifier, gain equalization, optical multiplexing /demultiplexing.
Optical Fiber Filter WDM FTTX 1625nm FT-FWDM-1625 is made by special optical components and advanced technology, it can deeply let 1600-1670nm wavelength pass but efficiently stop 1250-1590nm wavelength. This product is mainly used in optical fiber on-line testing. It is ideal component of 1625/1650nm optical fiber filtering.
Key Features
- High light transmittance
- High isolation
- Low PDL
- Effect of temperature is small
- Length: 1M
- Fiber Diameter: 0.9mm
- Connector: FC/UPC
Applications
- FTTX on line testing
- OTDR monitor module
- 1625/1650nm filter system
Specification
| Parameters | Value | Unit |
|---|---|---|
| Passed Wavelength Range | 1600-1670 | nm |
| 1625nm Transmittance | 80-90 | % |
| 1650nm Transmittance | 75-85 | % |
| Stopped Wavelength Range | 1250-1590 | nm |
| 1310nm Isolation | ≥50 | dB |
| 1490nm Isolation | ≥45 | dB |
| 1550nm Isolation | ≥38 | dB |
| PDL | ≤0.3 | dB |
| Temperature Shift Factor | ≤2 | % |
| Max. Power Handle | 300 | mW |
| Operation Temperature | -25～＋70 | ℃ |
| Storage Temperature | -40～＋85 | ℃ |
| Optical Fiber Type | SM Φ0.9 | / |
| Connector | FC/APC or FC/PC | / |
| Material Of Shell | SUS304 | / |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
