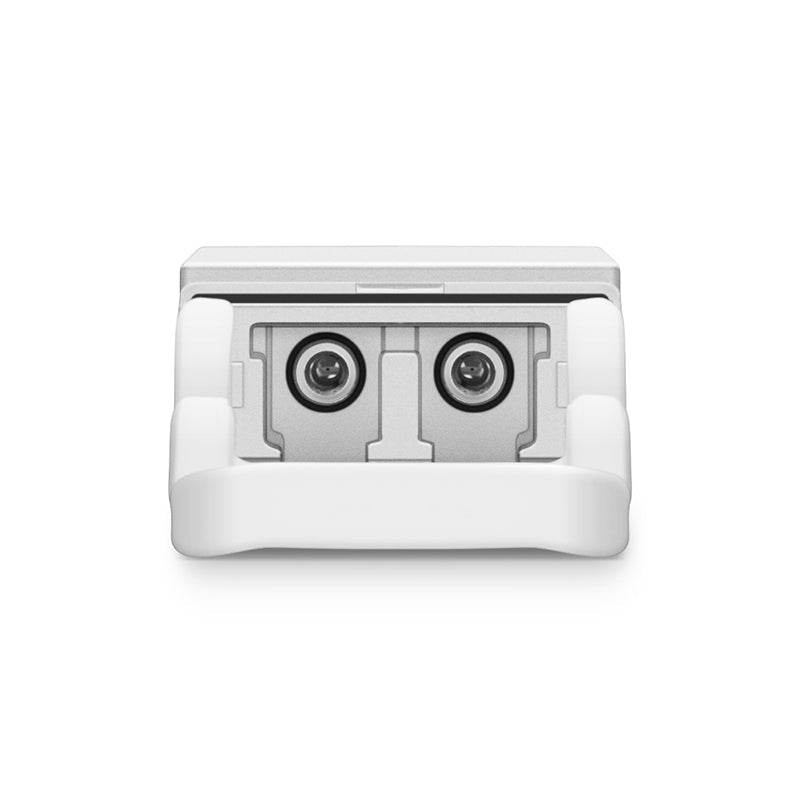

Generic QSFP-40G-ZR4 Compatible 40GBASE-ZR4 QSFP+ Optical Transceiver Module (1294~1310nm, SMF, 80KM, LC, DDM)
Generic QSFP-40G-ZR4 compatible QSFP+ optical transceiver is equipped with LC duplex connectors, reaching a link up to 80km over OS2. F-tone manufactured 40GBASE-ZR4 QSFP+ transceiver module is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-ZR4. Besides, DDM (digital diagnostics monitoring) function is supported on the 40G fiber optic transceiver to achieve real-time operating parameters monitoring. This 40G QSFP+ transceiver caters for long-haul networks, campus networks, metropolitan area networks, etc.
| Part Number: | QSFP-40G-ZR4 | Vendor Name: | F-tone |
| Form Factor: | QSFP+ | Data Rate: | 40Gbps |
| Wavelength: | 1294~1310nm | Distance: | 80km@OS2 |
| Connector: | Duplex LC | Cable Type: | OS2 SMF |
| Transmitter: | 4x DFB | Receiver Type: | APD |
| TX Power: | -2.7~4.5dBm | Receiver Sensitivity: | <-28dBm |
| Power Consumption: | ≤5W | Modulation Format: | NRZ |
| DDM: | Support | Bit Error Ratio (BER): | 1.00E-12 |
| Protocols: | IEEE 802.3ba IEEE 802.3ba, QSFP+ MSA, SFF-8436, InfiniBand 40G QDR | Warranty: | 5 Years |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series
HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series
-
AVAGO HFBR-2521ETZ Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-1521ETZ Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-1528Z Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-2528Z Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price
Power and Wavelength Testing
Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.
Traffic Testing
Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.
Optical Performance Testing
Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.
End Face Testing
Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.
Various Switch Tests
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
