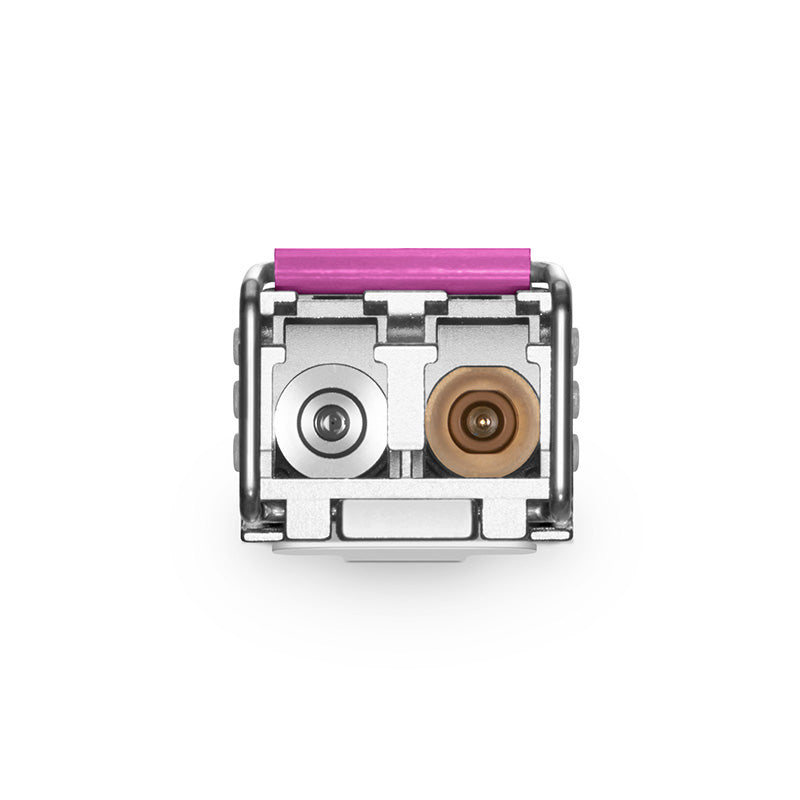

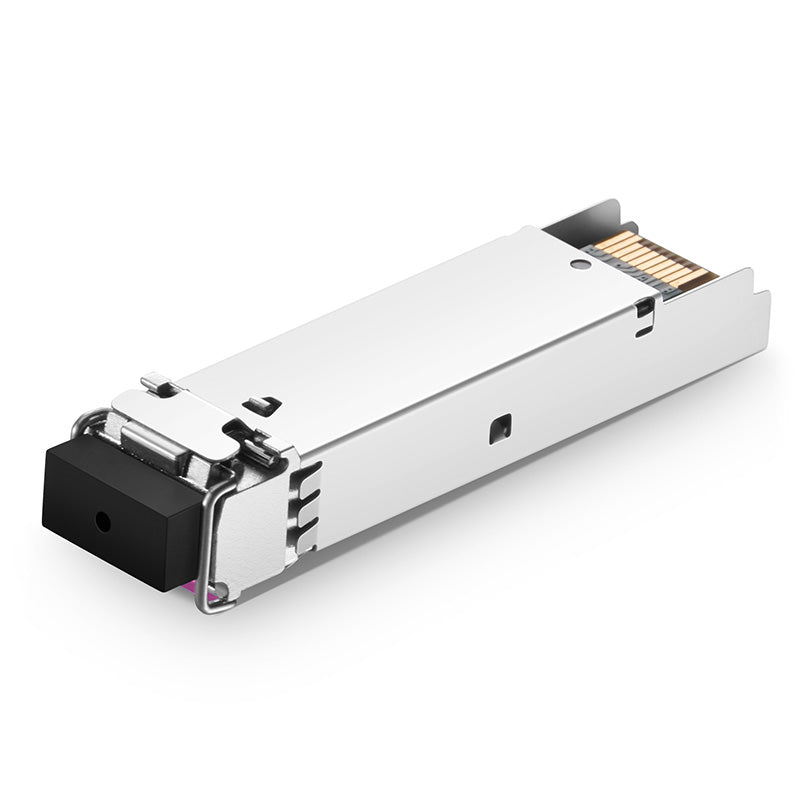

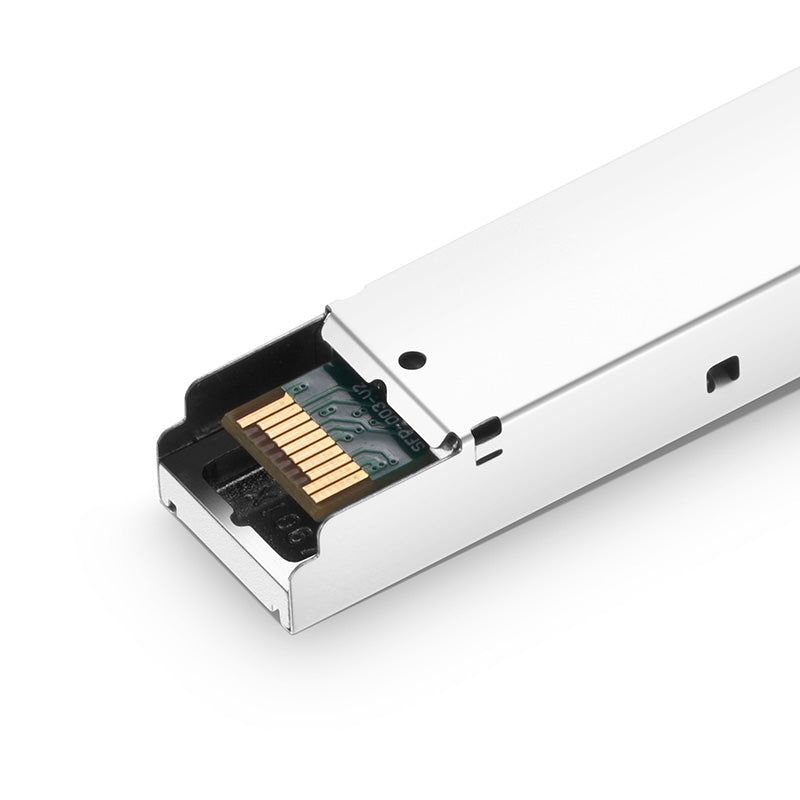

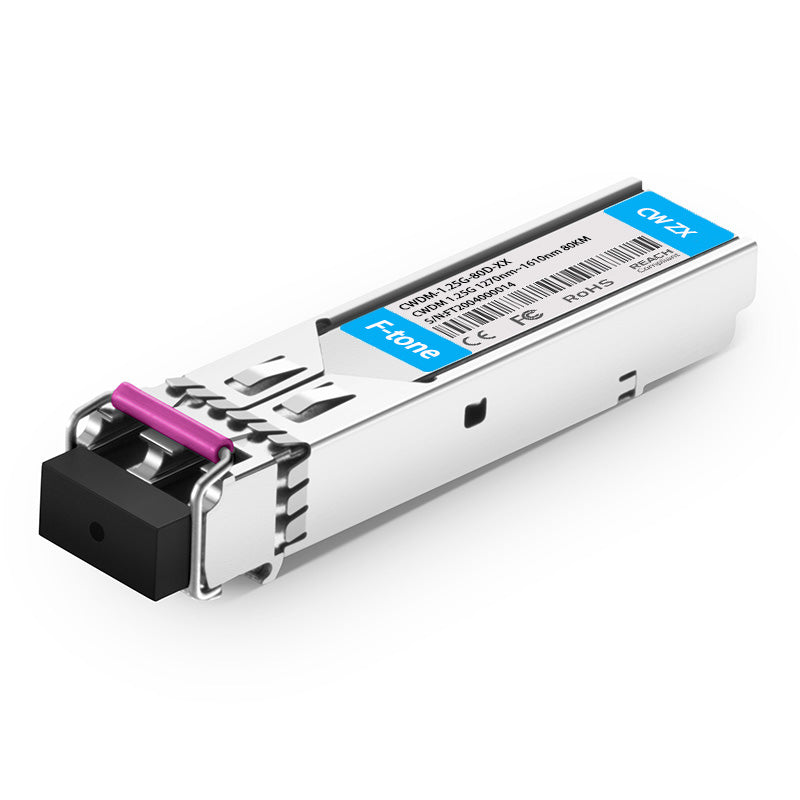

Generic Compatible 1000BASE CWDM SFP 1270-1610nm 80km DOM Duplex LC SMF Transceiver Module

Generic Compatible 1000BASE CWDM SFP 1270-1610nm 80km DOM Duplex LC SMF Transceiver Module

View full details

Generic Compatible 1000BASE CWDM SFP Transceiver Module (SMF, 1270-1610nm, 80km, Duplex LC, DOM)

Generic Compatible 1000BASE CWDM SFP 1270-1610nm 80km transceiver module is equipped with an LC duplex connector, supporting 1.25Gbps data rate and 80km transmission distance over single-mode fiber (SMF) at 1470nm CWDM wavelength.

This Compatible 1000BASE CWDM SFP fiber optic transceiver has undergone in-house testing on various brand switches and equipment to prove optic-to-device compatibility. All F-tone manufactured 1G SFP optical transceivers satisfy class I laser safety requirements.

Part Number

CWDM-1.25G-80D-XX

Vendor Name

F-tone

Form Factor

SFP

Data Rate

1.25Gbps

Wavelength

1270-1610nm

Distance

80km

Connector

LC Duplex

Cable Type

SMF

Operating Temperature

0 to 70°C

Optical Component

DFB CWDM

TX Power

0~5dBm

Receiver Sensitivity

< 24dBm

Power Consumption

< 1W

Modulation Format

NRZ

DDM

Support

Bit Error Ratio (BER)

1E-12

Protocols

MSA Compliant

Warranty

5 Years



Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

View all

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

View all

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
