Part Number: GJFJV-12B1.1L-L

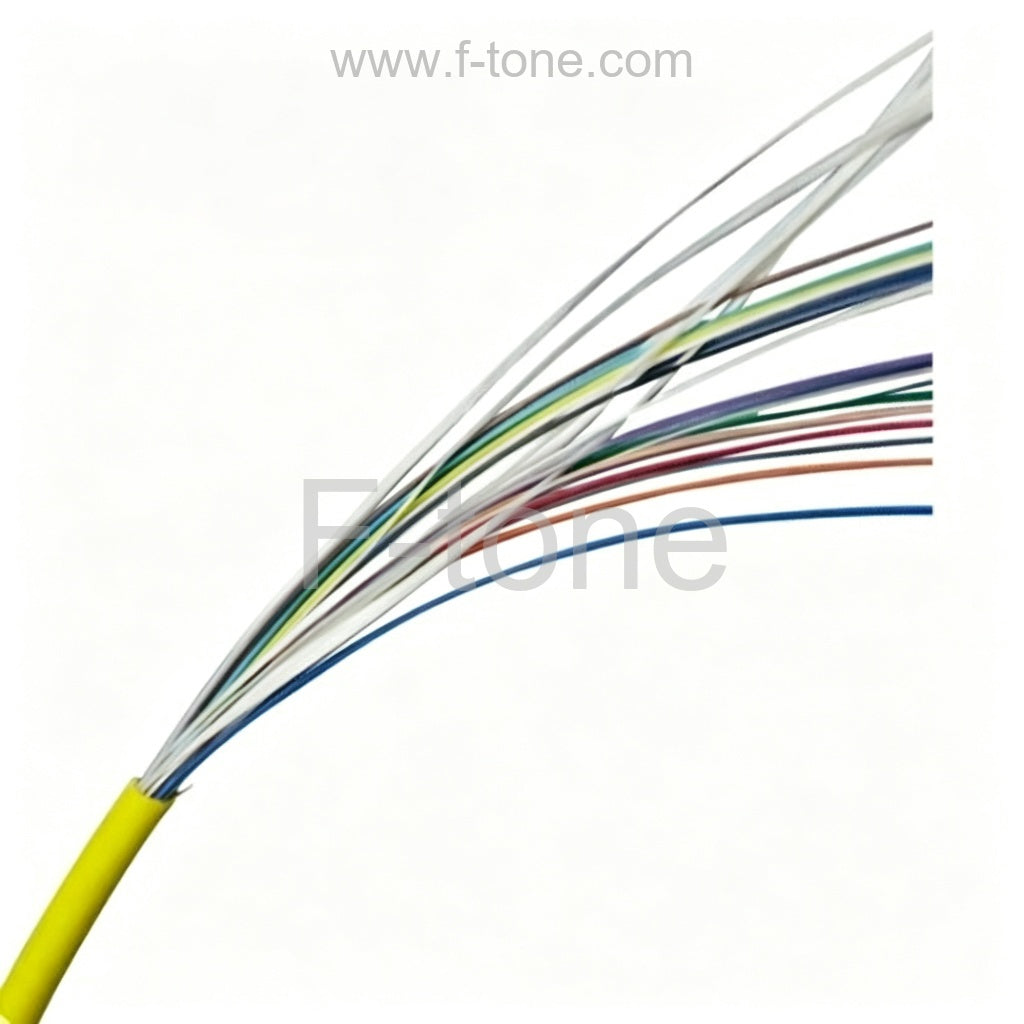

LSZH Indoor Distribution Round Tight Buffered Multi-Core Single-mode Fiber Optic Cable, 12 Fibers
The LSZH cable is stringently tested to IEC and VDE standards to ensure peace of mind when installing these cables where human life or valuable property are exposed to a high risk of fire hazards. This cable is ideal for indoor cabling, and interconnection between equipment.
The cable support 4 ~ 24 fiber cores, the fiber cable with LSZH outer sheath, and the tight buffer fiber wrapped by Kevlar. The Kevlar yarn material ensure a good performance of tensile strength. And the flame retardant outer jacket could be used in LSZH environment.
Item Details
- Fiber Count: 12 Fibers
- Fiber Type: Single-mode G.652D
- Flame Rating: LSZH

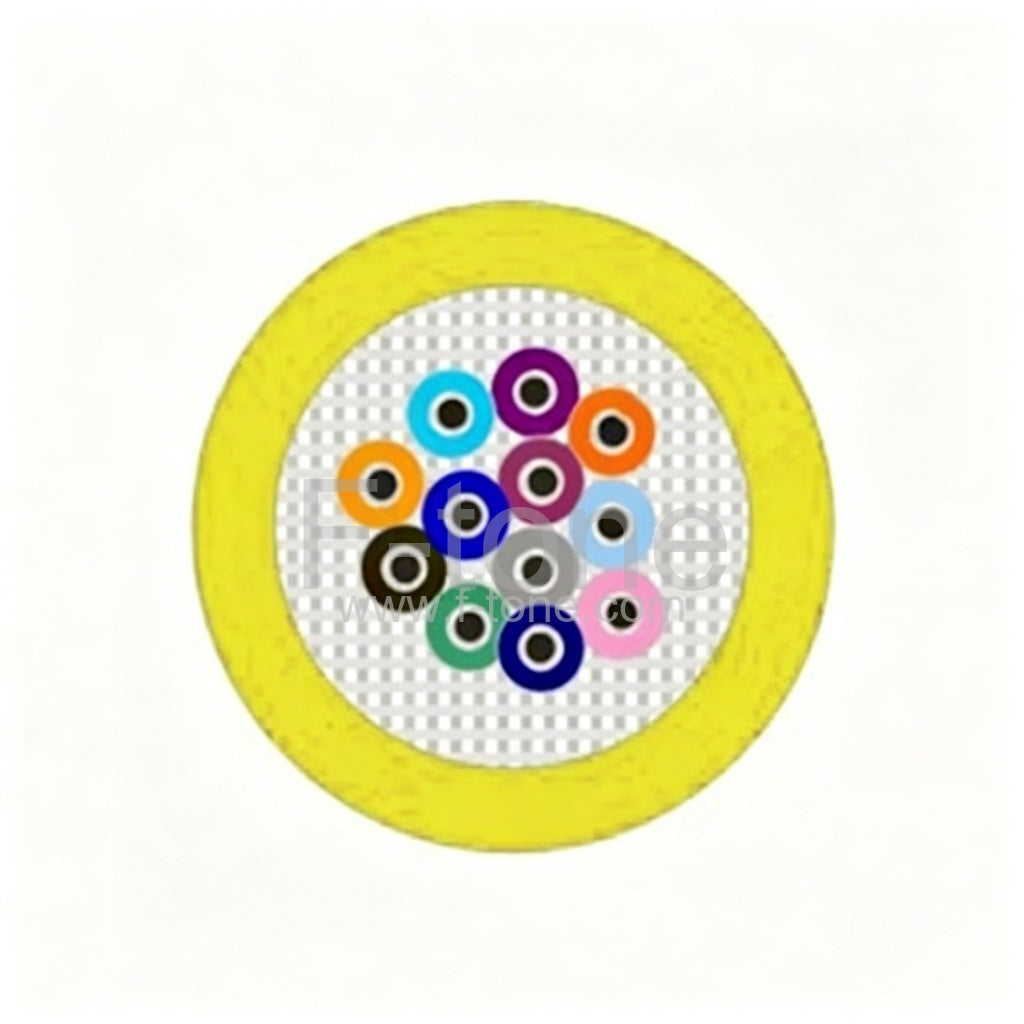

Cable Structure
- Soft, flexible, easy to splice, and with big capacity data transmission.
- Good mechanical and environmental properties.
- LSZH fiber optic cable jacket is more fire-resistant compared with common PVC jacketed cables.
- Kevlar yarn material ensure a good performance of tensile strength.
- 900µm tight buffer protect the fiber well.
- Indoor cabling and distribution
- Interconnection of fiber optic equipment, especially ODF
- Used in patch cords and pigtails
Package
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.
Mark
Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX
Cable production throughout the chart
| Cable Count | Out Sheath Diameter |
Fiber Diameter |
Weight | Minimum Allowable Tensile Strength (N) |
Minimum Allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage Temperature |
|||
| （MM) | （µm) | (KG) | short term | long term | short term | long term | short term | long term | （℃） | |
| 2 | 3 | 0.9 | 18 | 600 | 200 | 1000 | 200 | 20D | 10D | -20～+60 |
| 4 | 4 | 0.9 | 25 | 600 | 200 | 1000 | 200 | 20D | 10D | -20～+60 |
| 6 | 4 | 0.9 | 26 | 600 | 200 | 1000 | 200 | 20D | 10D | -20～+60 |
| 8 | 5 | 0.9 | 32 | 600 | 200 | 1000 | 200 | 20D | 10D | -20～+60 |
| 10 | 5.5 | 0.9 | 35 | 600 | 200 | 1000 | 200 | 20D | 10D | -20～+60 |
| 12 | 6 | 0.9 | 38 | 600 | 200 | 1000 | 200 | 20D | 10D | -20～+60 |
| 24 | 8 | 0.9 | 60 | 600 | 200 | 1000 | 200 | 20D | 10D | -20～+60 |
| G.652 | 50/125µm | 62.5/125µm | ||
| Attenuation (+20°C) (dB/km) |
@850nm | ≤3.0 | ≤3.0 | |
| @1300nm | ≤1.0 | ≤1.0 | ||
| @1310nm | ≤0.36 | |||
| @1550nm | ≤0.22 | |||
| Bandwidth (Class A) (MHz·km) | @850nm | ≥600 | ≥200 | |
| @1300nm | ≥1200 | ≥600 | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc (nm) | ≤1260 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
