Part Number: GJFJV-6A1bL

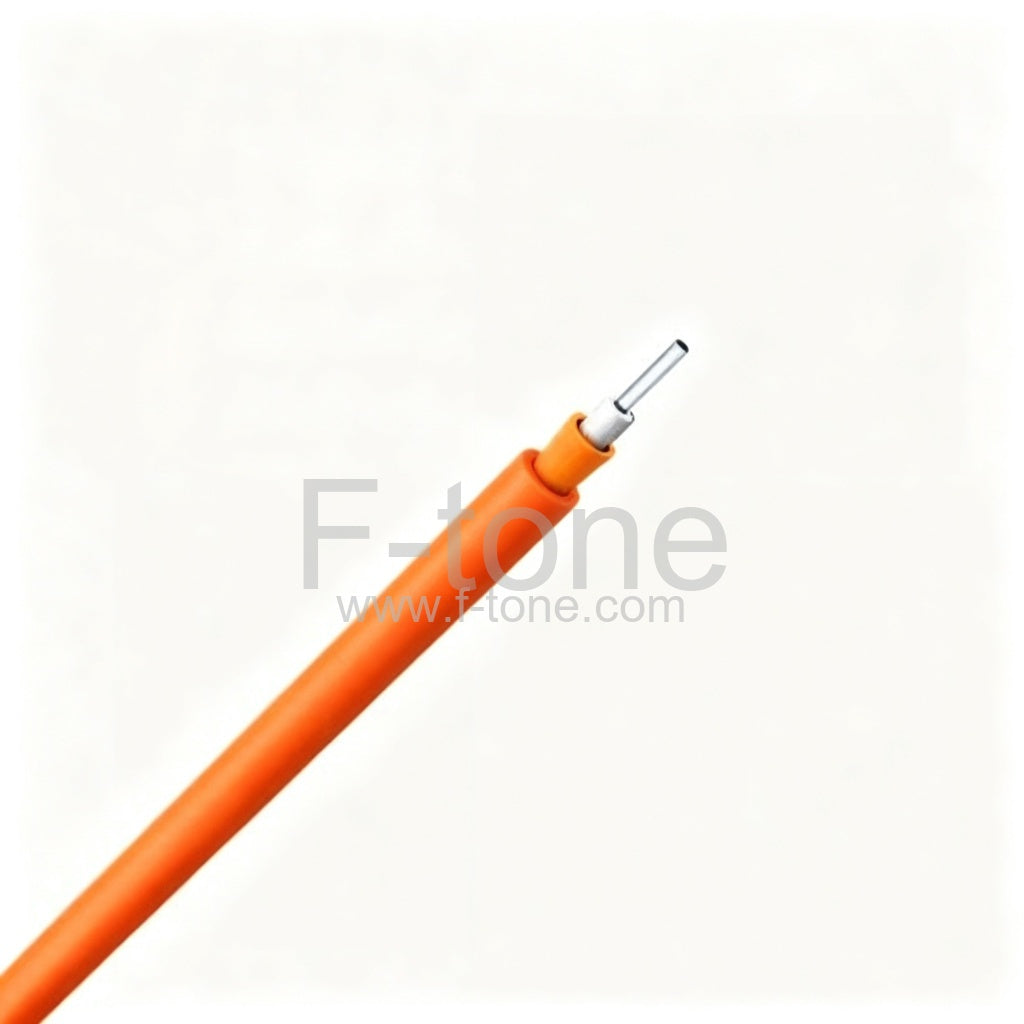

6 Fibers 62.5/125μm Multimode Multi-Core Tight Buffered LSZH Distribution Indoor Cable-GJFJV
This kind of GJFJV cable is ideal for indoor cabling, and interconnect between equipment.
GJFJV cable support 4 ~ 24 fiber cores, the fiber cable with LSZH outer sheath, and the tight buffer fiber warped by Kevlar. The Kevlar yarn material ensure a good performance of tensile strength. And the flame retardant outer jacket could be used in LSZH environment.
Item Details
- Fiber Count: 6 Fibers
- Fiber Type: 62.5/125μm Multimode
- Flame Rating: LSZH
Cable Structure
- Soft, flexible, easy to splice, and with big capacity data transmission.
- The flame retardant outer jacket could be used in LSZH environment.
- Kevlar yarn material ensure a good performance of tensile strength.
- 900µm tight buffer protect the fiber well.
- Indoor cabling and distribution
- Interconnection of fiber optic equipment, especially ODF
- Used in patch cords and pigtails
Package
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.
Mark
Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX
Cable production throughout the chart
| Cable Count | Out Sheath Diameter |
Weight | Minimum Allowable Tensile Strength (N) |
Minimum Allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage Temperature |
|||
| （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | |
| 4 | 4 | 25 | 600 | 200 | 1000 | 200 | 20D | 10D | -20～+60 |
| 6 | 4 | 26 | 600 | 200 | 1000 | 200 | 20D | 10D | -20～+60 |
| 8 | 5 | 32 | 600 | 200 | 1000 | 200 | 20D | 10D | -20～+60 |
| 10 | 5.5 | 35 | 600 | 200 | 1000 | 200 | 20D | 10D | -20～+60 |
| 12 | 6 | 38 | 600 | 200 | 1000 | 200 | 20D | 10D | -20～+60 |
| 24 | 8 | 60 | 600 | 200 | 1000 | 200 | 20D | 10D | -20～+60 |
| G.652 | 50/125µm | 62.5/125µm | ||
| Attenuation (+20°C) (dB/km) |
@850nm | ≤3.0 | ≤3.0 | |
| @1300nm | ≤1.0 | ≤1.0 | ||
| @1310nm | ≤0.36 | |||
| @1550nm | ≤0.22 | |||
| Bandwidth (Class A) (MHz·km) | @850nm | ≥600 | ≥200 | |
| @1300nm | ≥1200 | ≥600 | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc (nm) | ≤1260 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
