Part Number: GJXFH-1FL

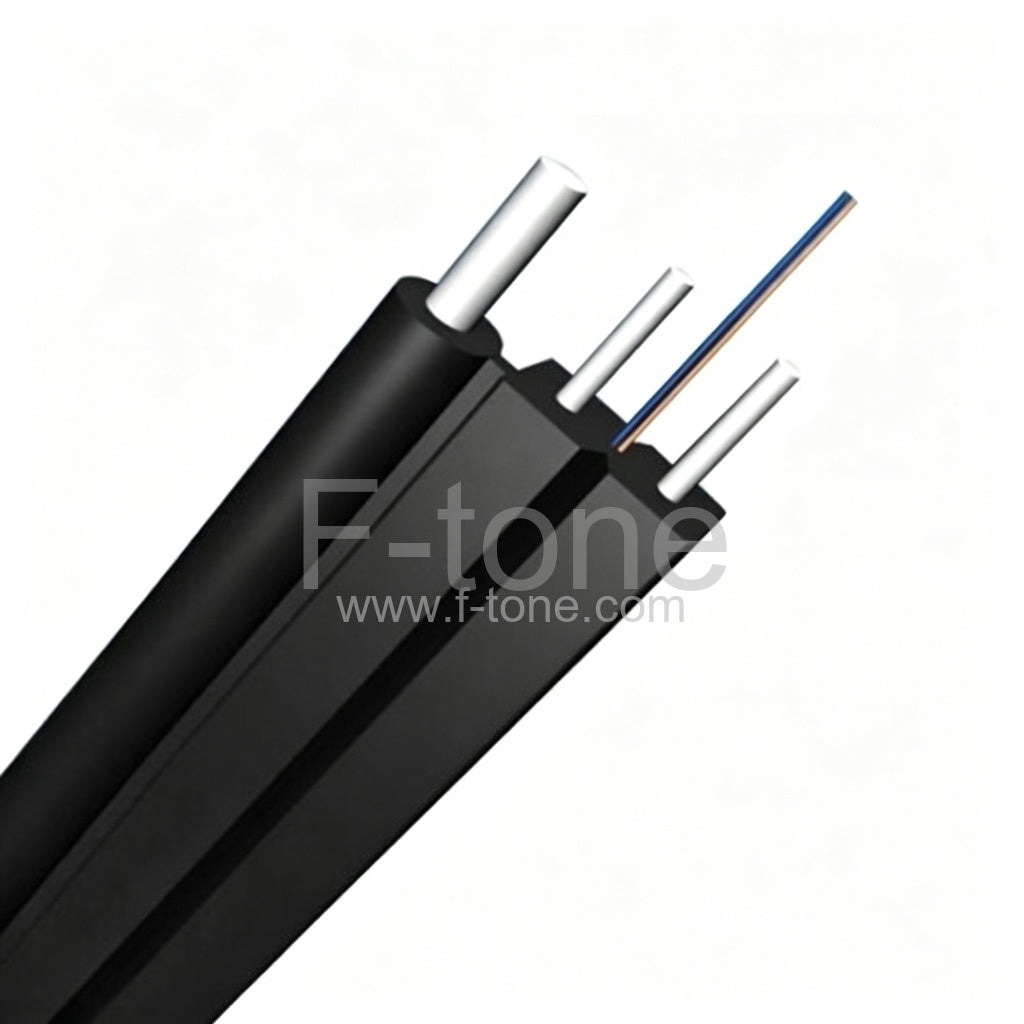

GJXFH FTTH Self-supporting Drop Optical Cable, 1 Single-mode Core, FRP Tensile Member, Messenger Wire, LSZH Outer Jacket
The drop FTTH cables are with flame retardant jacket and with supporting wire, there are strengthen members inside the cables for supporting the whole cables. The optical fiber cable is with special structure so it is easy to pull the fibers out from the cables, the FTTH drop cables are ideal to use for direct installation into the houses, suitable for being used in homes and offices.
Two parallel fiber reinforced plastics are placed at the two sides, the cable is completed with LSZH sheath. Single steel wire as additional strength member ensuring good performance of tensile strength. It is a highly recommended FTTH drop cables for use in the fiber to the home projects, saving time and cost.
Item Details
- Fiber Count: 1 Fiber
- Fiber Type: Single-mode G.657A
- Strength Member: FRP (fiber reinforced plastics)

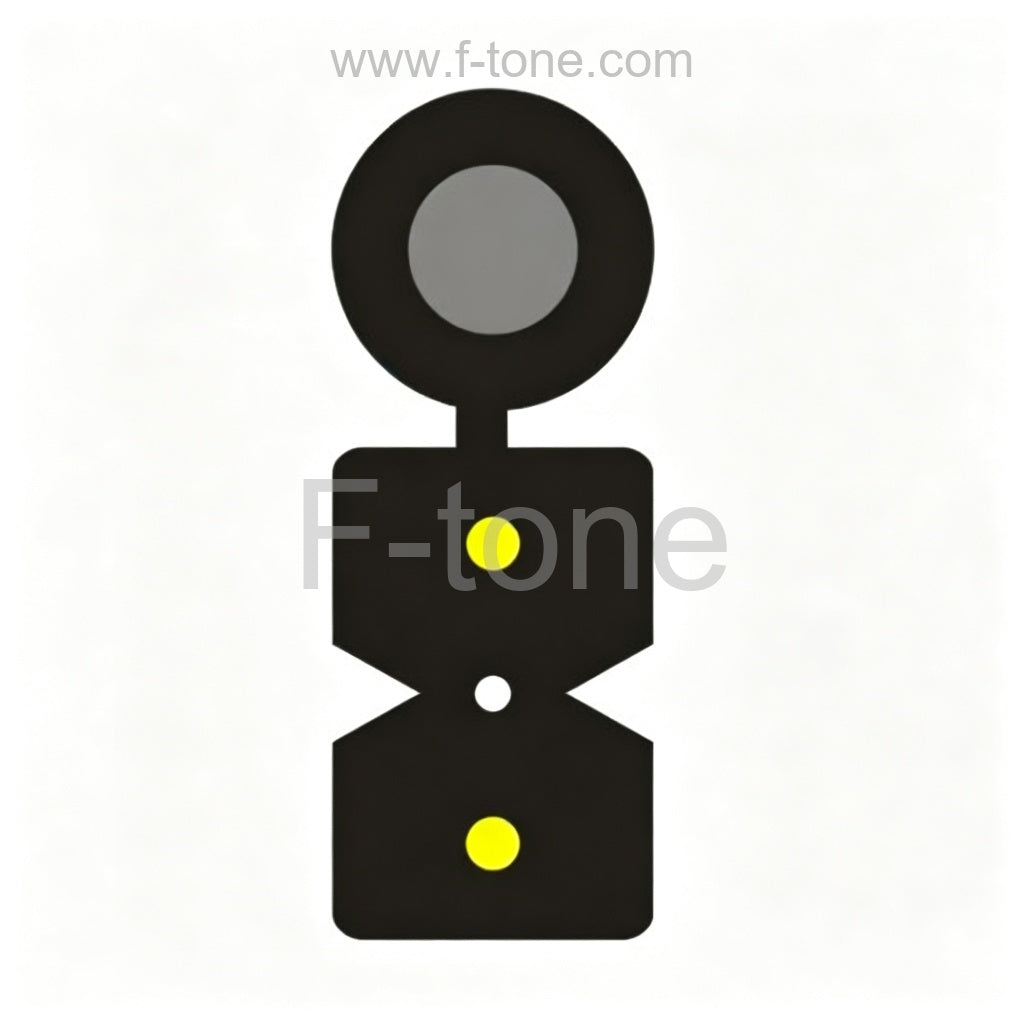

Cable Structure
- Two parallel fiber reinforced plastic as the strength member ensures good performance of crush resistance to protect the fiber.
- Environmental protection- Low smoke, zero halogen and flame retardant sheath.
- Single steel wire as additional strength member ensuring good performance of tensile strength and self-supporting.
- Simple structure, light weight.
- Use in the fiber to the home projects
- Ideal to use for direct installation into the houses
- Suitable for being used in homes and offices
Package
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.
Mark
Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX
Cable production throughout the chart
| Cable Count | Out Sheath Diameter |
Weight | Minimum Allowable Tensile Strength (N) |
Minimum Allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage Temperature |
|||
| （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | |
| 1 | (2.0±0.2)×(5.0±0.2) | 20 | 200 | 100 | 1000 | 300 | 20D | 10D | -40+60 |
| 2 | (2.0±0.2)×(5.0±0.2) | 20 | 200 | 100 | 1000 | 300 | 20D | 10D | -40+60 |
| 3 | (2.0±0.2)×(5.0±0.2) | 21 | 200 | 100 | 1000 | 300 | 20D | 10D | -40+60 |
| 4 | (2.0±0.2)×(5.0±0.2) | 22 | 200 | 100 | 1000 | 300 | 20D | 10D | -40+60 |
| G.657A | 50/125µm | 62.5/125µm | ||
| Attenuation (+20°C) (dB/km) |
@850nm | ≤3.0 | ≤3.0 | |
| @1300nm | ≤1.0 | ≤1.0 | ||
| @1310nm | ≤0.36 | |||
| @1550nm | ≤0.22 | |||
| Bandwidth (Class A) (MHz·km) | @850nm | ≥600 | ≥200 | |
| @1300nm | ≥1200 | ≥600 | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc (nm) | ≤1260 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
