4 Fibers 50/125μm Multimode Single Armor Double Jackets Stranded Loose Tube FRP Strength Member Waterproof Outdoor Cable - GYFTY53

4 Fibers 50/125μm Multimode Single Armor Double Jackets Stranded Loose Tube FRP Strength Member Waterproof Outdoor Cable - GYFTY53

View full details

Part Number: GYFTY53-4A1

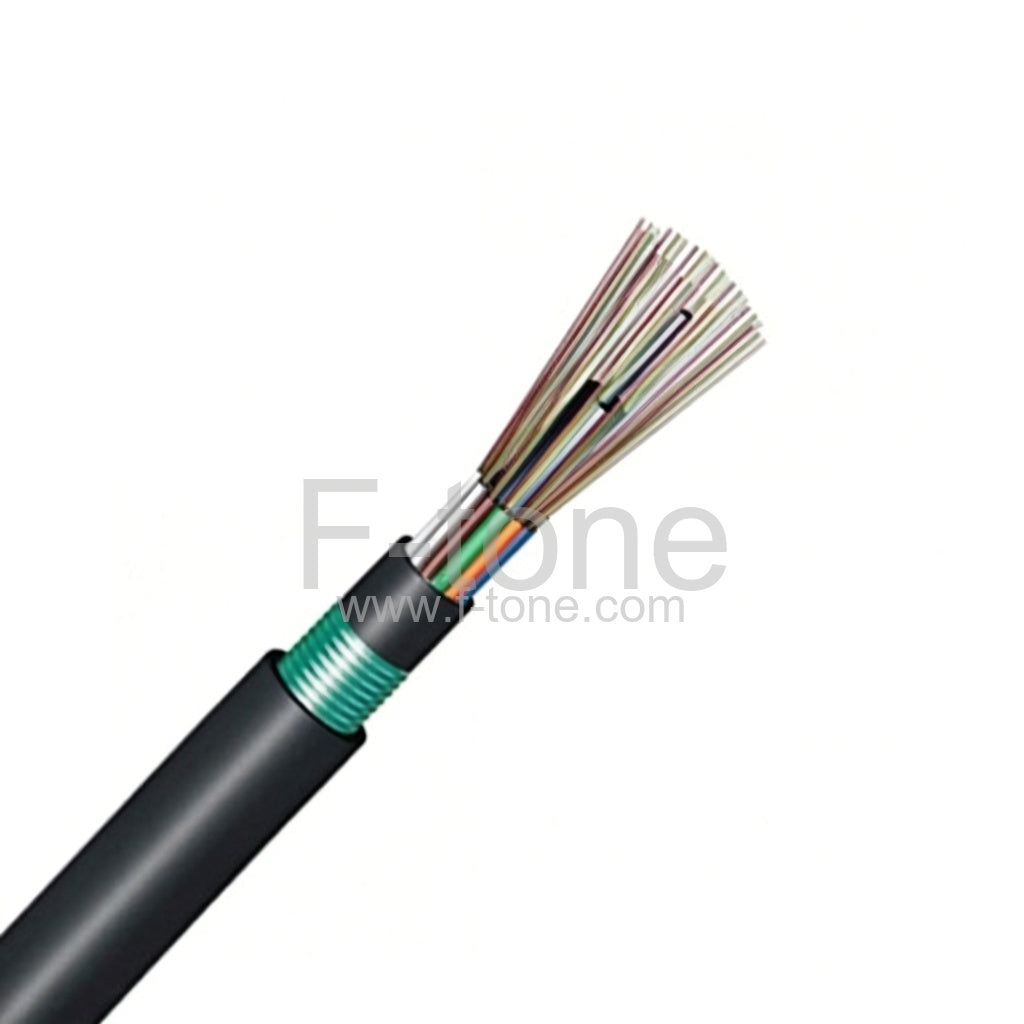

GYFTY53 Waterproof Outdoor Optical Cable, Stranded Loose Tube FRP Strength Member Single Armor Double Jackets, 4 Fibers 50/125μm Multimode

GYFTY53 is an outdoor cable, it is suitable for installation in high voltage area, the frequent lightning area and anti electric field. It can also be used for duct and direct buried application.

GYFTY53 use Fiber Reinforced Plastic as central strength member to provides anti-electromagnetic interference property. It has good mechanical properties and resist to electromagnetic interference The armor structure helps to protect the cable from rat bite and moisture proof. Double-jacket structure make cable have nice properties of moisture resistance and crush resistance. A layer of water-blocking material is applied around the cable core to prevent water ingress.

Item Details

  • Fiber Count : 4 Fibers

  • Strength Member Materials: FRP
  • Fiber Type: 50/125μm Multimode

  • Armor Layer: PSP

  • Outer Sheath: PE (Default)

Cable Structure

Features
  • Good mechanical and temperature performance.
  • Special control of exceed length and layer stranding technology.
  • Low attenuation and dispersion.
  • Single armor and double sheath providing excellent crush resistance, water proof, and avoiding rat bite.
  • FRP (non-metallic) Strength Member ensures good anti-electromagnetic interference.
  • Stranded loose tube improves the tensile strength.
  • Water -blocking material enhances water-blocking & moisture-proof.
  • Friction reduction because the tube filling compound ensures a critical protection of the fiber.
  • Double sheath design enhancing the crushing performance, good moisture-resistance, ultra violet radiation resistant.
Application
  • Frequent lightning area and anti electric field : The subway, tunnel
  • Long-distance communication: Local trunk network & User network
  • Duct and direct buried application
  • Harsh environment

Package

Package 1
Package 2
Package 1: usually for indoor cable, light weight cables.
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark


Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX

Cable production throughout the chart



Cable Count Out Sheath
Diameter		 Weight Minimum Allowable Tensile Strength
(N)		 Minimum Allowable Crush Load
（N/100mm)		 Minimum Bending Radius
(MM)		 Storage
Temperature
（MM) （KG) short term long term short term long term short term long term （℃）
2-24 12.0 170.00 3000 1000 3000 1000 20D 10D -40+60
26-42 12.0 175.00 3000 1000 3000 1000 20D 10D -40+60
46-72 13.0 210.00 3000 1000 3000 1000 20D 10D -40+60
74-96 15 240.00 3000 1000 3000 1000 20D 10D -40+60
98-120 16.5 270.00 3000 1000 3000 1000 20D 10D -40+60
122-144 18 300.00 3000 1000 3000 1000 20D 10D -40+60


G.652 50/125µm 62.5/125µm
Attenuation
(+20°C) (dB/km)		 @850nm ≤3.0 ≤3.0
@1300nm ≤1.0 ≤1.0
@1310nm ≤0.36
@1550nm ≤0.22
Bandwidth (Class A) (MHz·km) @850nm ≥600 ≥200
@1300nm ≥1200 ≥600
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc (nm) ≤1260


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
