Part Number: GYFXTY-12A1

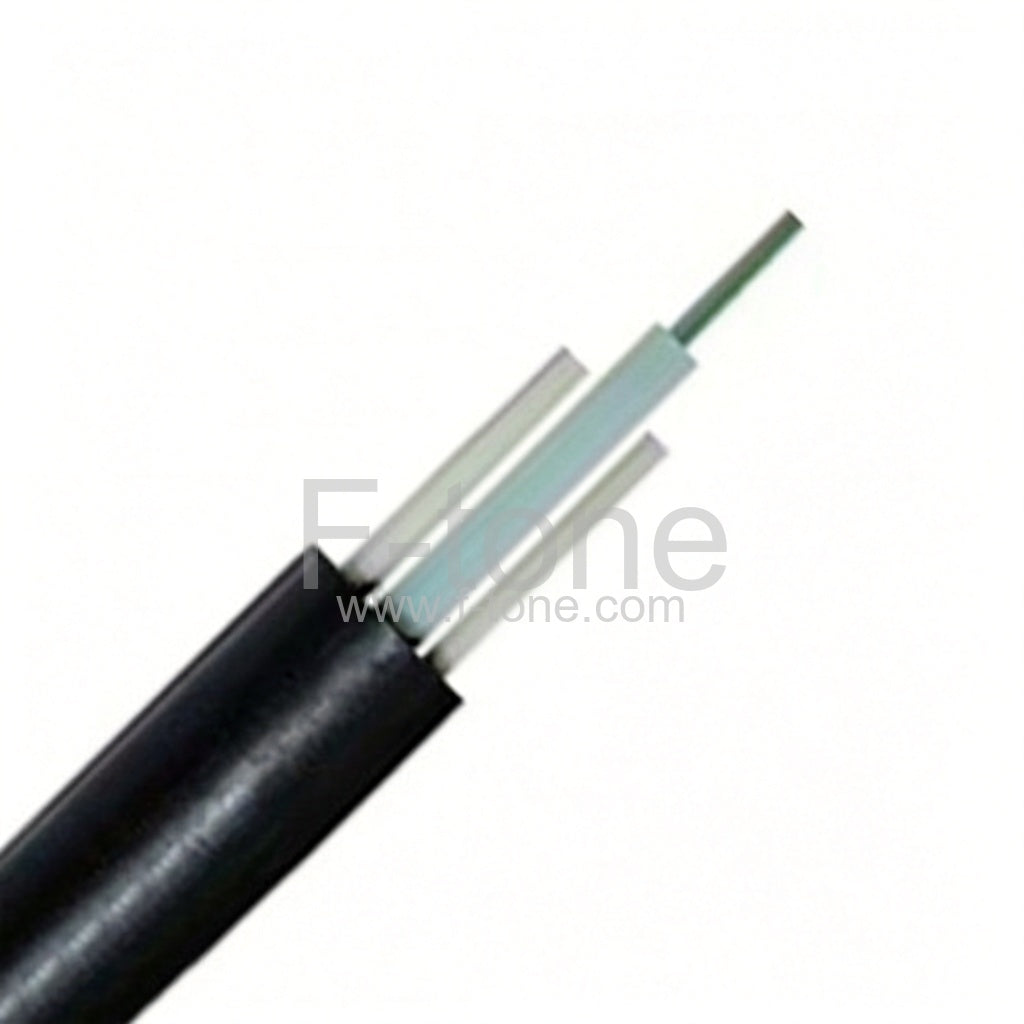

GYFXTY Loose Tube FRP Strength Member Single Jacket Outdoor Optical Cable, 12 Fibers 50/125μm Multimode
These central loose tube optical fiber cables are suitable for installation in aerial, The tube is covered with a layer of aramid yarn as strength member to ensure tensile strength. It is especially suitable for the electromagnetic interfering places because of the non-metal strength member.
Non-metal strength has an excellent anti-electromagnet ability. Loose tube filled with special grease, provide key protection for the fiber. The tube are filled with a water-resistant filling compound to improve the waterproof ability. The cable is completed with a single polyethylene (PE) sheath.
Item Details
- Fiber Count : 12 Fibers
- Strength Member Materials: FRP
- Fiber Type: 50/125μm Multimode
- Outer Sheath: PE (Default)
Cable Structure
- Good mechanical and temperature resistant performance.
- Low dispersion and attenuation.
- Small diameter, light weight, easy installation.
- The centrally-situated loose tube minimizes the influence of lateral crush.
- Two parallel non-metal strength has an excellent anti-electromagnet ability.
- PE sheath have good ultraviolet radiation resistance.
- Laying modes: Aerial
- Electromagnetic interfering places
- Trunk power transmission system
- Access network and local network
Package
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.
Mark
Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX
Cable production throughout the chart
| Cable Count | Out Sheath Diameter |
Weight | Minimum Allowable Tensile Strength (N) |
Minimum Allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage Temperature |
|||
| （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | |
| 2 | 7.2 | 75.00 | 1200 | 1500 | 600 | 300 | 20D | 10D | -40+60 |
| 4 | 7.2 | 75.00 | 1200 | 1500 | 600 | 300 | 20D | 10D | -40+60 |
| 6 | 7.2 | 75.00 | 1200 | 1500 | 600 | 300 | 20D | 10D | -40+60 |
| 8 | 7.2 | 75.00 | 1200 | 1500 | 600 | 300 | 20D | 10D | -40+60 |
| 10 | 7.2 | 75.00 | 1200 | 1500 | 600 | 300 | 20D | 10D | -40+60 |
| 12 | 7.2 | 75.00 | 1200 | 1500 | 600 | 300 | 20D | 10D | -40+60 |
| G.652 | 50/125µm | 62.5/125µm | ||
| Attenuation (+20°C) (dB/km) |
@850nm | ≤3.0 | ≤3.0 | |
| @1300nm | ≤1.0 | ≤1.0 | ||
| @1310nm | ≤0.36 | |||
| @1550nm | ≤0.22 | |||
| Bandwidth (Class A) (MHz·km) | @850nm | ≥600 | ≥200 | |
| @1300nm | ≥1200 | ≥600 | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc (nm) | ≤1260 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
