Part Number: GYTC8S(A)-8A1b

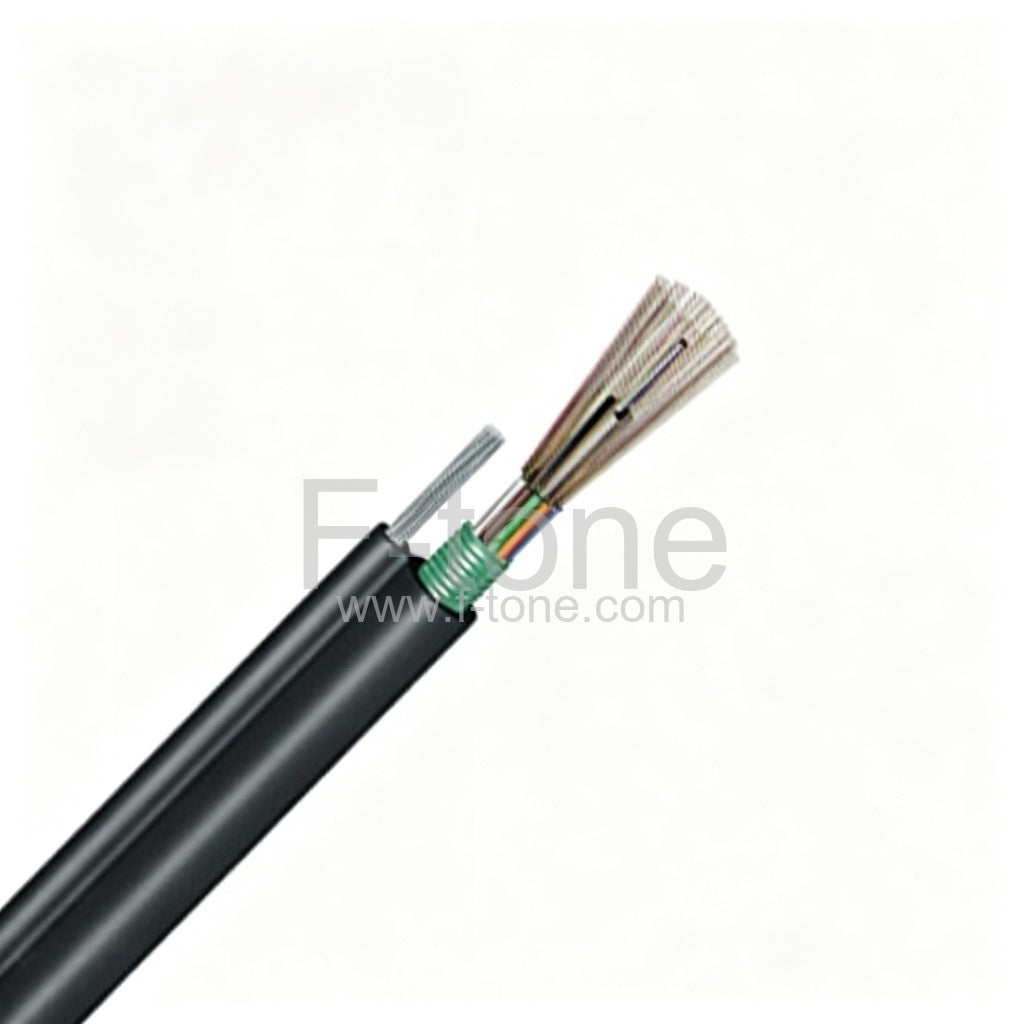

Waterproof Stranded Loose Tube Aerial Self-supporting Single-Armored 8 Fibers OM1 Multimode Figure 8 Cable GYTC8S
GYTC8S is a typical self supporting outdoor fiber optic cable, suitable for aerial applications; The cable have nice moisture resistance performance and crush resistance performance suitable for duct and buried method.
The mental strength member is made up of stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features. The steel-wire strength member as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. The impact structure ensures excellent mechanical and environmental performance.
Item Details
- Fiber Count : 8 Fibers
- Strength Member Materials: Steel Wire
- Fiber Type: 62.5/125μm Multimode
- Armor Layer: PSP
- Outer Sheath: PE (Default)
Cable Structure
- Excellent mechanical and environmental performance.
- Small cable diameter, self-supporting, easily to install.
- Low dispersion and attenuation.
- Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features.
- Cross section shows figure 8.
- Stranded wires as self supporting member providing excellent strain performance and convenient installation.
- Steel-wire strength member provides good tensility,ensures tensile strength.
- Water blocking system to improve the water proof ability.
- Suitable for aerial,duct and buried method
- Long distance and local area network communication
- CATV & computer networks system
Package
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.
Mark
Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX
Cable production throughout the chart
| Cable Count | Out Sheath Diameter |
Weight | Minimum Allowable Tensile Strength (N) |
Minimum Allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage Temperature |
|||
| （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | |
| 2 | 7.0×14.5 | 220 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 4 | 7.0×14.5 | 220 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 6 | 7.0×14.5 | 220 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 8 | 7.0×14.5 | 220 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 12 | 7.0×14.5 | 220 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| G.652 | 50/125µm | 62.5/125µm | ||
| Attenuation (+20°C) (dB/km) |
@850nm | ≤3.0 | ≤3.0 | |
| @1300nm | ≤1.0 | ≤1.0 | ||
| @1310nm | ≤0.36 | |||
| @1550nm | ≤0.22 | |||
| Bandwidth (Class A) (MHz·km) | @850nm | ≥600 | ≥200 | |
| @1300nm | ≥1200 | ≥600 | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc (nm) | ≤1260 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
