Part Number: GYXTC8Y-6B1.1

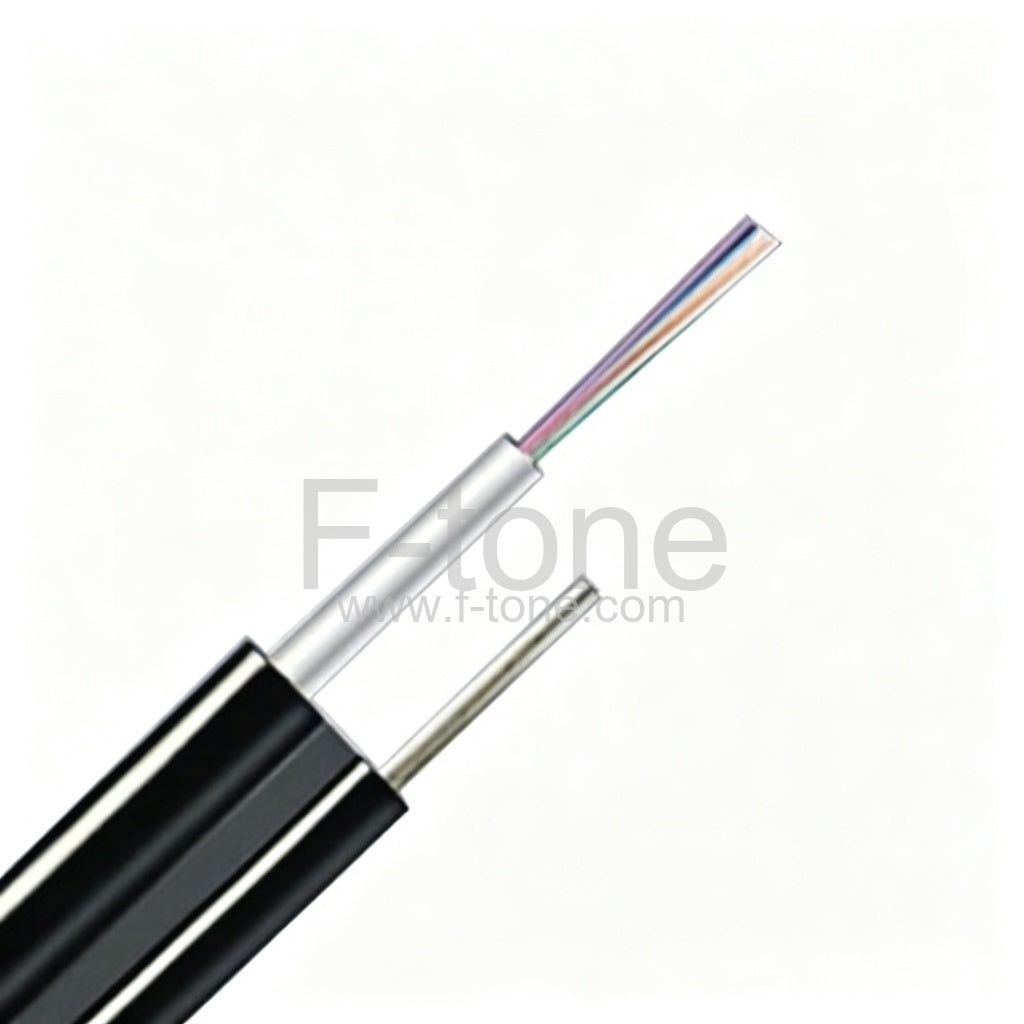

GYXTC8Y 6 Fibers Single-mode Aerial Self-supporting Figure 8 Central Loose Tube Cable
GYXTC8Y is a light self-supporting cable with the figure 8 shape in the cross section, suitable for installation in aerial environment for long haul communications. High tensile strength of stranded wires meet the requirement of self-supporting. It can also be used for duct and buried method.
The mental strength member is made up of stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Steel wires and loose tubes filled with water proof compound to ensure compact and longitudinally water blocking.Metal strength member provides excellent strain performance. High strength loose tube that is hydrolysis resistant. GYXTC8Y is a very good figure-8 aerial fiber optic cable.
Item Details
- Fiber Count : 6 Fibers
- Fiber Type: Single-mode G.652B (Default)
Cable Structure
- Excellent mechanical and environmental performance.
- Small cable diameter, light cable weight, self-supporting, easily to install.
- Low dispersion and attenuation.
- Medium Density Polyethylene Jacket: low friction installation, excellent protection from environmental hazards.
- Stainless steel or galvanized steel self-supporting.
- Load-supporting element is made of zinc-coated wire provides high resistance grade to long tension.
- High strength loose tube that is hydrolysis resistant.
- Light self-supporting cable with the figure 8 shape.
- Suitable for aerial duct and buried method
- Long distance and local area network communication
- CATV & computer networks system
Package
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.
Mark
Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX
Cable production throughout the chart
| Cable Count | Out Sheath Diameter |
Weight | Minimum Allowable Tensile Strength (N) |
Minimum Allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage Temperature |
|||
| （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | |
| 2 | 3.8×5.5 | 62 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 4 | 3.8×5.5 | 62 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 6 | 3.8×5.5 | 62 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 8 | 3.8×5.5 | 62 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 12 | 3.8×5.5 | 62 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| G.652 | 50/125µm | 62.5/125µm | ||
| Attenuation (+20°C) (dB/km) |
@850nm | ≤3.0 | ≤3.0 | |
| @1300nm | ≤1.0 | ≤1.0 | ||
| @1310nm | ≤0.36 | |||
| @1550nm | ≤0.22 | |||
| Bandwidth (Class A) (MHz·km) | @850nm | ≥600 | ≥200 | |
| @1300nm | ≥1200 | ≥600 | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc (nm) | ≤1260 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
