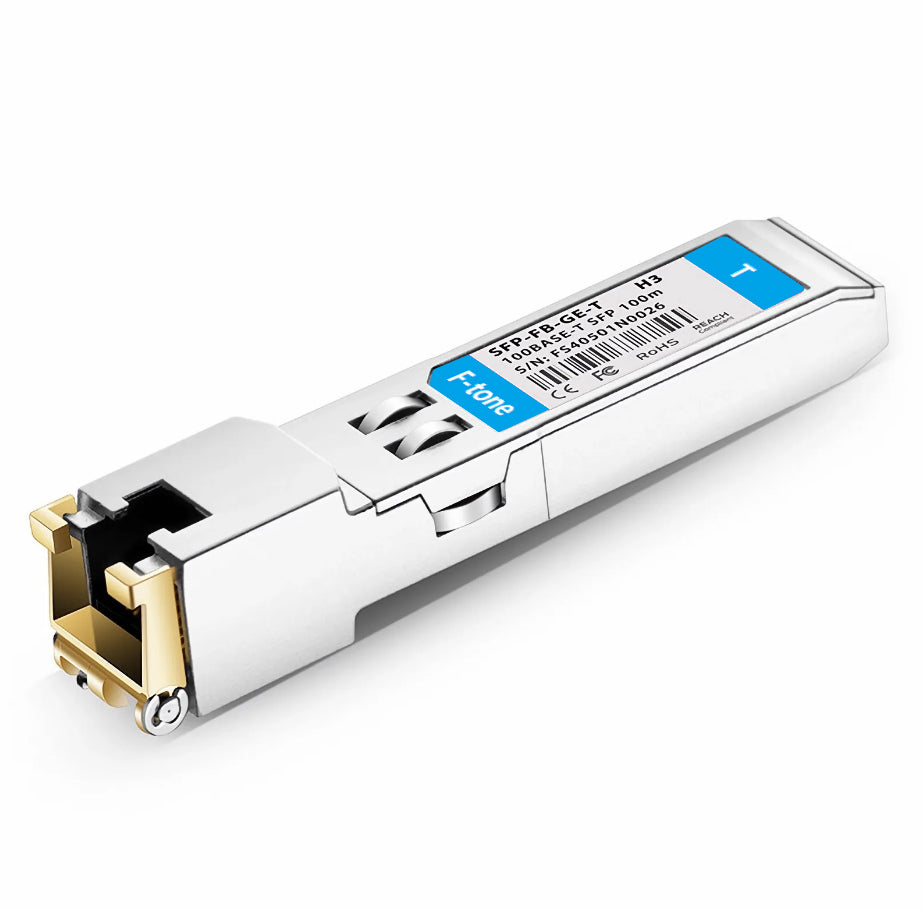

H3C SFP-FE-T-A Compatible 100BASE-T SFP SGMII Copper 100m RJ-45 Transceiver Module

H3C SFP-FE-T-A Compatible 100BASE-T SFP SGMII Copper 100m RJ-45 Transceiver Module

View full details

H3C SFP-FE-T-A Compatible 100BASE-T SFP SGMII Transceiver Module (Copper, 100m, RJ-45)

H3C SFP-FE-T-A compatible SFP transceiver supports up to 100m link lengths over a copper connection via a RJ-45 connector. Each SFP transceiver module is individually tested to be used on a series of H3C switches, routers, servers, network interface card (NICs) etc. Featuring low Featuring low power consumption, the hot swappable 100BASE SFP transceiver is ideal for Internet Service Provider (ISP) Fast Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

H3C Compatible SFP-FE-T-A Vendor Name F-tone Networks
Form Factor SFP SGMII Max. Data Rate 100Mbps
Media Cat 5/Cat 6/Cat 6a Max. Cable Distance 100m
Connector RJ-45 DOM Support No
Commercial Temperature Range 0 to 70°C (32 to 158°F) Protocols SFP+ MSA Compliant, SFF-8472, IEEE 802.3ae, FC-PI-5, SFF-8431

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

View all

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

View all

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
