HD Fiber Hybrid Cable Assemblies (3K.93C)

HD Fiber Hybrid Cable Assemblies (3K.93C)

View full details

HD Fiber Hybrid Cable Assemblies (3K.93C)

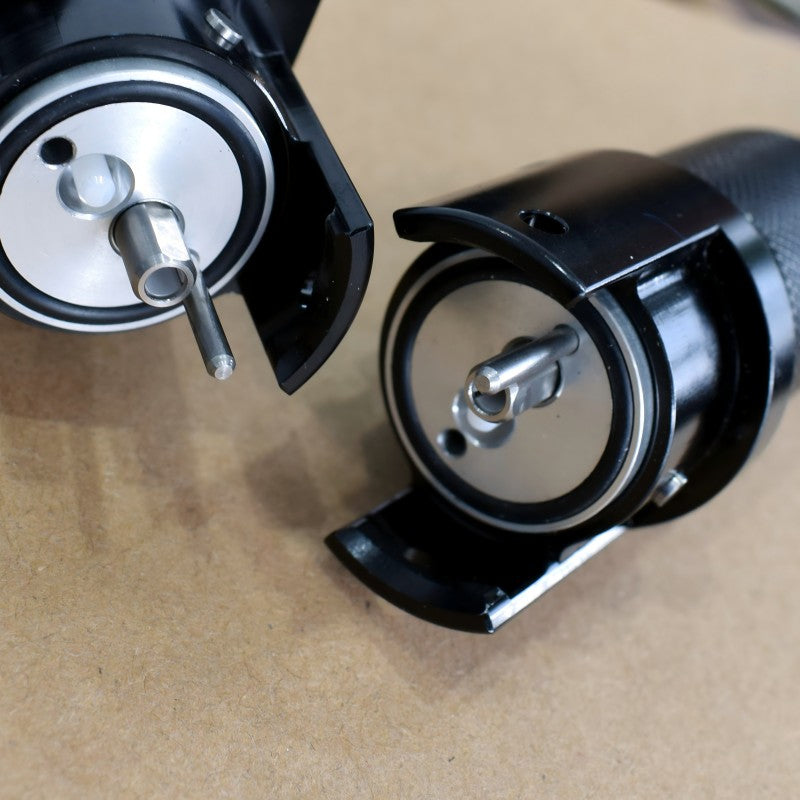

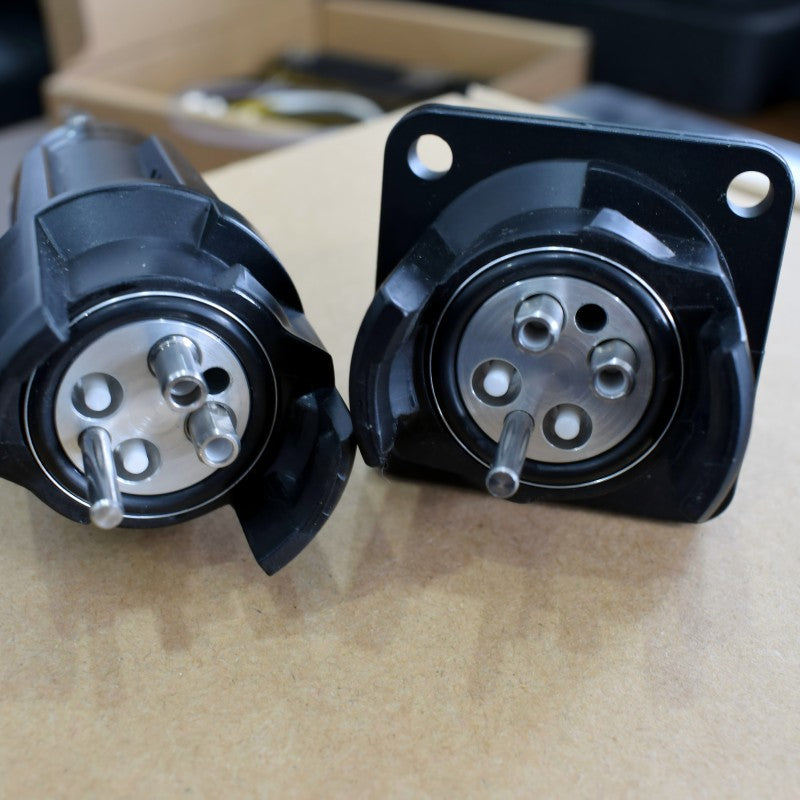

3K.93C HD Fiber Hybrid cable assemblies: Comply with SMPTE304、SMPTE311M and ARIB BTA S-1005B etc standards. Shortly lead time, Quality Warranty, after service guarantee.
We upgrade the SMPTE-311m cable structure, the fiber come with the armored protection, so the inside fiber will be not easily broken.
Connection Drawing
FXW Drawing EDW Drawing
3K.93C Assembly Ordering Info:
EDW / FXW Assembly Drawing
[Ordering info example]
(1) EDW-2SC-L1m-SM
End A is EDW fixed Socket，End B is 2SC connector, length is 1m, SM branch cable
(2) FXW-2SC-L1m-SM
End A is FXW fixed Plug，End B is 2SC connector, length is 1m, SM branch cable
FUW-PUW Assembly Drawing
[Ordering info example]
(1) FUW-PUW-L100m-SM-A
End A is FUW plug with rubber sheath, End B is PUW Socket with rubber sheath, length is 100m, Armored SMPTE cable
