Part Number: HD-SM-UCSDX

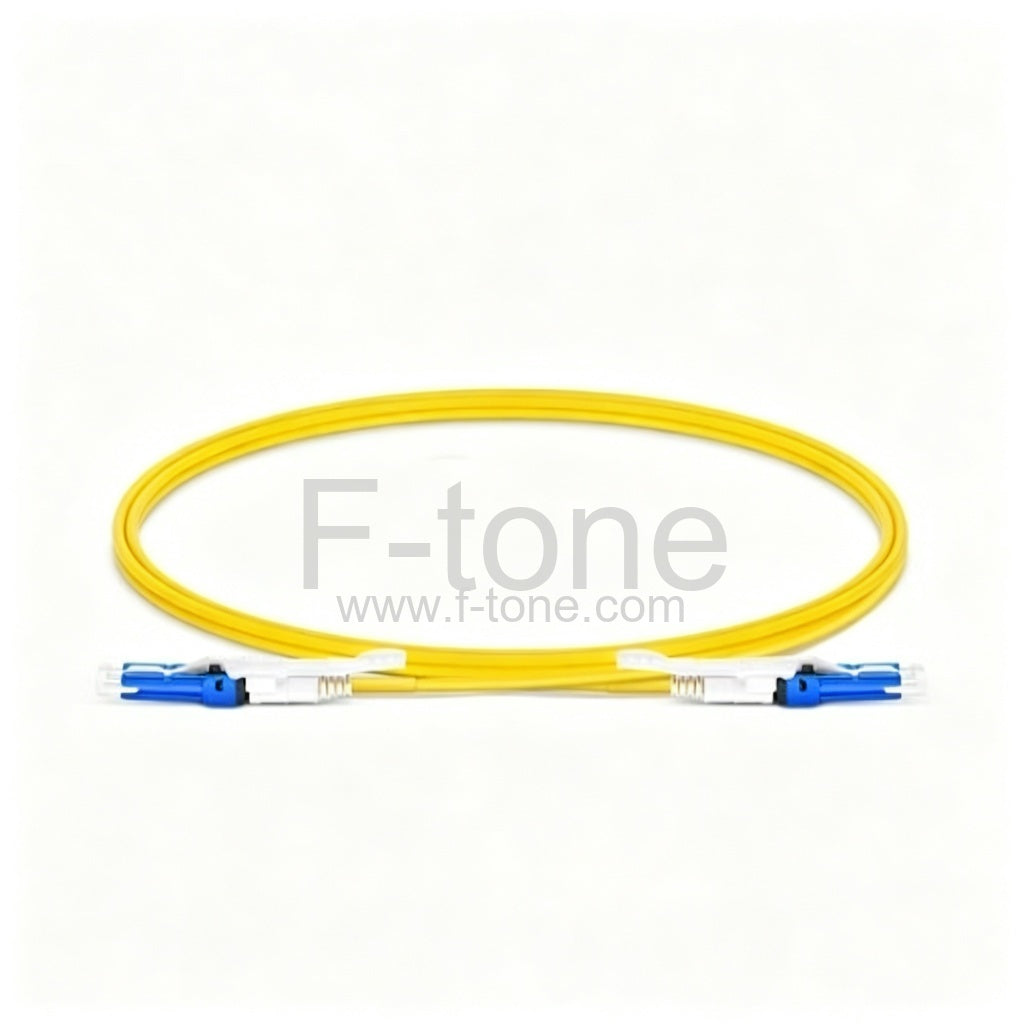

CS UPC to CS UPC Duplex 9/125μm Single Mode PVC Fiber Optic Patch Cable

Senko CS™ connector is designed for next generation 200/400G transceiver QSFP-DD and OSFP, meeting the requirement for CWDM4, FR4, LR4 and SR2.

The reduced size CS™ connector is not only capable of delivering low insertion and high return loss comparable to existing LC connectors, but it does so with a reduced footprint. Working with the QSFP-DD and OSFP pluggable form factors, the CS™ connector accentuates ease of fiber breakout.

Description

Connector Type
Senko CS™ to CS™
Polish Type
UPC to UPC
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
400G Ethernet Distance
2km with OSFP-400G-2FR4
Glass Fiber
Corning Fiber
Insertion Loss
≤0.2dB
Return Loss
≥50dB
Fiber Grade
G.657.A1 (Compatible with G.652.D)
Minimum Bend Radius
10mm
Attenuation at 1310 nm
0.4 dB/km
Attenuation at 1550 nm
0.22 dB/km
Fiber Count
Duplex
Cable Diameter
2.0mm
Cable Jacket
PVC
Polarity
A(Tx) to B(Rx)
Operating Temperature
-20 to 70°C
Storage Temperature
-40 to 80°C
Note: CS™ is a trademark of Senko Advanced Components, Inc. 2016-2020 © All Rights Reserved.

Product Highlights

Optimized for 200/400G New Generation Data Center

The smaller connector footprint of CS™ connectors enables two duplexes in a single QSFP-DD/OSFP transceiver, addressing a critical industry challenge of increasing port density for 400GbE optics.

High-performed Advantages of CS™ Connector to Facilitate Your Connection

2x LC style ferrules increase reliability
48mm push-pull tab for high density applications
One piece duplex dust cap for easy operation
2mm slim uniboot design reducing cable congestion
