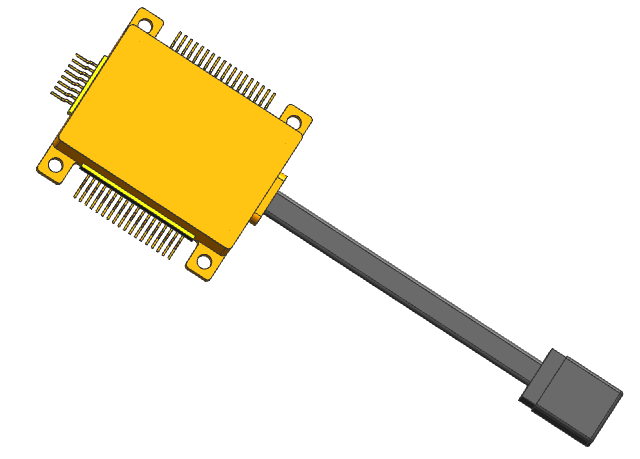

Hermetically sealed butterfly-packaged,4Tx4Rx

Product Brief
Hermetically sealed butterfly-packaged 4-channel parallel optical transceiver module, capable of photoelectric signal conversion for 4 parallel optical transmit channels and 4 parallel optical receive channels. It is suitable for short-range multi-channel parallel data communication and interconnection applications between and within supercomputer racks.
Features
● Central wavelength: 850nm
● Single power supply: 3.3V DC
● Per-channel transmission rate: 3.125Gbps
● MT optical interface
● Butterfly package form factor with hermetic sealing design
● High reliability, low power consumption, large bandwidth, small form factor
The main performance index

Parameters

Min

Typ

Max

Unit

Operating Voltage

3.14

3.3

3.46

V

Operating Temperature

-40

+25

+85

℃

Operating Current

-

-

600

mA

Single-channel Rate

-

3.125

-

Gbps

Transmission Distance

0.5

-

100

m

Central Wavelength

840

850

860

nm

Average Transmit Optical Power

-5

-

+1

dBm

Extinction Ratio

5

-

-

dB

Receiver Sensitivity

-

-

-1.6

dBm

Saturation Optical Power

+1

-

-

dBm

Size diagram(mm)

Ordering Information

FTQM-4TR1X-02

X

-XX

-XX

F-tone Hermetically sealed butterfly-packaged 4-channel parallel optical transceiver

E:Commercial grade

100mm
The tail fiber length(customize)

MT: MT tail fiber output
MP:MPO tail fiber output

I: Industrial grade

M: Military grade


Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
