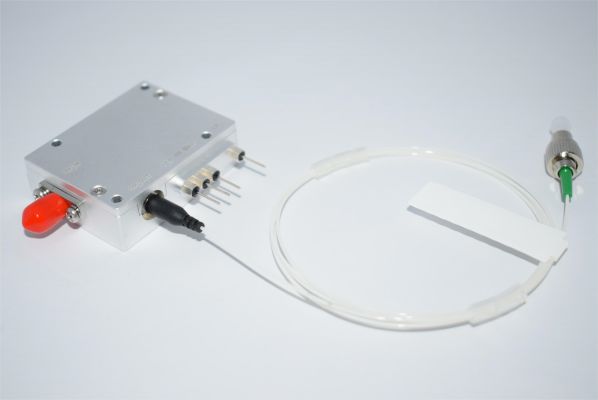

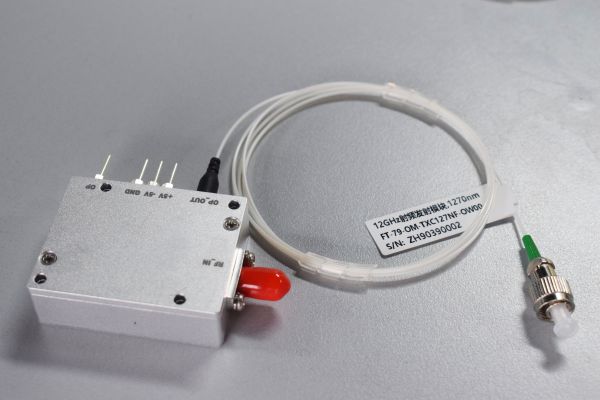

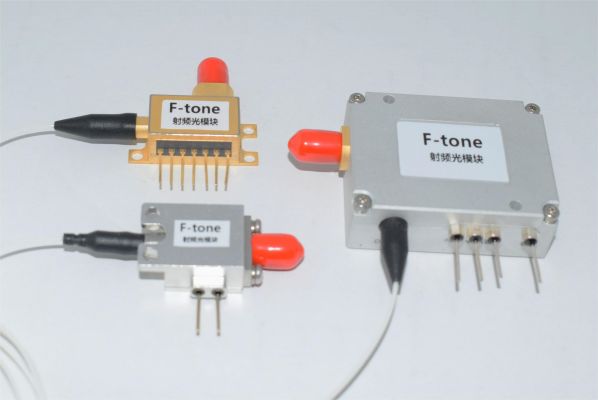

High Power DWDM Laser Module

High Power DWDM Laser Module

View full details

High Power DWDM Laser Module

Features
● High optical power, up to 63mW
● Low noise, use butterfly optical device with TEC
● Support ITU C Band
● Wide operating temperature range
● ATC and low optical power alarm function
● Excellent EMI/EMC design
● High reliability
Applications
● WDM
● CATV
● Optical source
● Test and measurement
Absolute Maximum Ratings

Connector Operating requirements
In order to ensure proper performance and safety, heat sinking and heat removal must be provided by the user to limit maximum temperature of this module.
Mechanical (unit: mm)

ITU C band Wavelength Code Number TableImportant Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
