Part Number: HPCFMI-1064-20

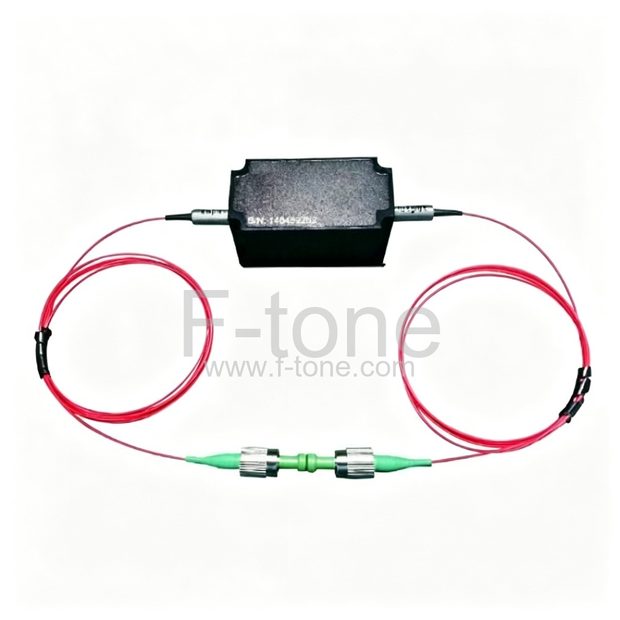

High Power Isolator 20W 1064nm Collimated Free Space Beam Output HPCFMI
F-tone high power components HPCFMI-1064-20 is 1064nm 20w 3.0mm loose tube HI1060 fiber 1M Output Beam Diameter :8mm。 It also can customize rang from 780nm to 1550nm and handling power from 300mW to 100W or other on request. Low insertion loss, high isolation, high power handling, high return loss, high extinction ratio and excellent environmental stability and reliability.
Characteristics
- High Isolation& High Power Handling
- High Extinction Ratio
- Low insertion Loss & High Return Loss
- Excellent Environmental Stability and Reliability
Applications
- Fiber Amplifier
- Fiber sensor
- Instrumentation Applications
- Lab Research
Specifications
| Parameters | Unit | Values |
|---|---|---|
| Center Wavelength | nm | 1064 or Specify |
| Operating Wavelength Range | nm | ±10 |
| Typ. Peak Isolation | dB | 30~35 |
| Min. Isolation at 23℃ | dB | 25 |
| Typ. Transmission | - | 93% |
| Min. Transmission | - | 90% |
| Min. Return Loss | dB | 50 |
| Min. Extinction Ratio(Fast Axis blocked) | dB | 20(only for Panda fiber) |
| Nominal Output Beam Diameter(1/e^2) | mm | 0.5, 1, 5, 8, 10, or Specify |
| Fiber Type | - | PM980 Panda Fiber, Hi1060 or specify |
| Max. Optical Power (CW) | W | 5, 10, 20, 30, 50 or specify |
| Operating Temperature | ℃ | -5 ～+50 |
| Storage Temperature | ℃ | -20～+75 |
Dimension
Order Information
| Item | Wavelength | Handing Power | Output Beam Diameter | Pigtail Type | Fiber Type | Fiber Length |
|---|---|---|---|---|---|---|
| HPCFMI | 1=1064 S=Specify |
1=1W 2=5W 3=10W 4=20W 100=100W S=Specify |
0.5=0.5mm 1=1mm 5=5mm 7=7mm 8=8mm S=Specify |
1=900um Loose Tube 2=3mm Amoured Cable S=Specify |
1=PM980 2=HI1060 S=Specify |
0.8=0.8m S=Specify |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
