Part Number: HPCFMI-1064-50

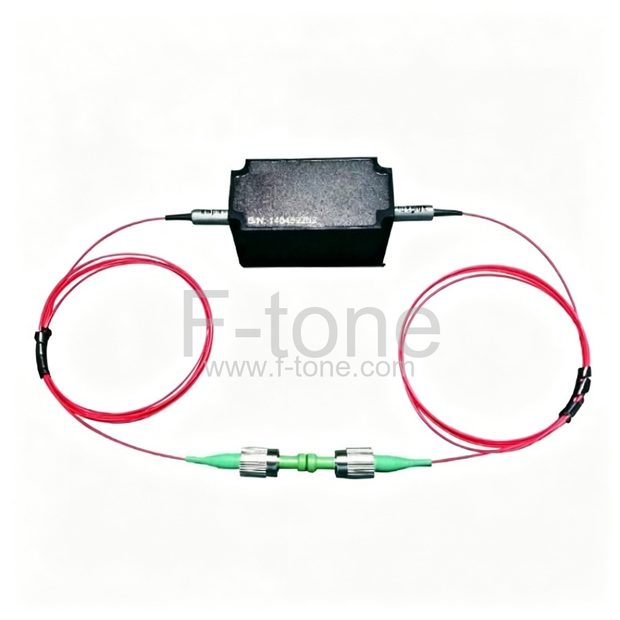

High Power Isolator 50W 1064nm Collimated Free Space Beam Output HPCFMI
F-tone high power components HPCFMI-1064-50 is 1064nm 50w 3.0mm loose tube HI1060 fiber 1M Output Beam Diameter :8mm。 It also can customize rang from 780nm to 1550nm and handling power from 300mW to 100W or other on request. Low insertion loss, high isolation, high power handling, high return loss, high extinction ratio and excellent environmental stability and reliability.
Characteristics
- High Isolation& High Power Handling
- High Extinction Ratio
- Low insertion Loss & High Return Loss
- Excellent Environmental Stability and Reliability
Applications
- Fiber Amplifier
- Fiber sensor
- Instrumentation Applications
- Lab Research
Specifications
| Parameters | Unit | Values |
|---|---|---|
| Center Wavelength | nm | 1064 |
| Operating Wavelength Range | nm | ±10 |
| Typ. Peak Isolation | dB | 35 |
| Min. Isolation in Band (at 25℃) | dB | 30 |
| Min. Transmission | % | 90 |
| Nominal Output Beam Diameter | mm | 8±1 |
| Max. Peak Power | kW | 30 & 50 |
| Max. Optical Power (CW) | W | 50 |
| Min. Return Loss | dB | 50 |
| Fiber Type | - | LMA-GDF-20/25/30-250 ,20/400 fiber |
| Fiber Length(B) | m | >1.0 |
| Armoured Length(A) | m | 2.5 & 3.0 |
| Tensile Load | kg | 1 |
| Operation Temperature | ℃ | 0 ~ +50 |
| Storage Temperature Range | ℃ | -20 ~ +75 |
Dimension
Order Information
| Item | Wavelength | Optical Power | Fiber Type | Package Dimensions | Output Beam Diameter | Fiber Jacket on Input & Length (A) | Fiber Length | Connector Type on in&out |
|---|---|---|---|---|---|---|---|---|
| HPCFMI-1064-50 | 1=1064 S=Specify |
50=50W S=Specify |
1=HI1060 fiber 2= LMA fiber S=Specify |
C–Circle Type Q–Quadrate Type |
08=8mm S=Specify |
C25–3mm=Loose Cable&2.5m Length A25–3mm=3mm Armoured Cable&2.5m Length B25–6mm=6mm Armoured Cable&2.5m Length |
1=1m S=Specify |
N=None S=Specify |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
