Part Number: HPPMIS-980-10X

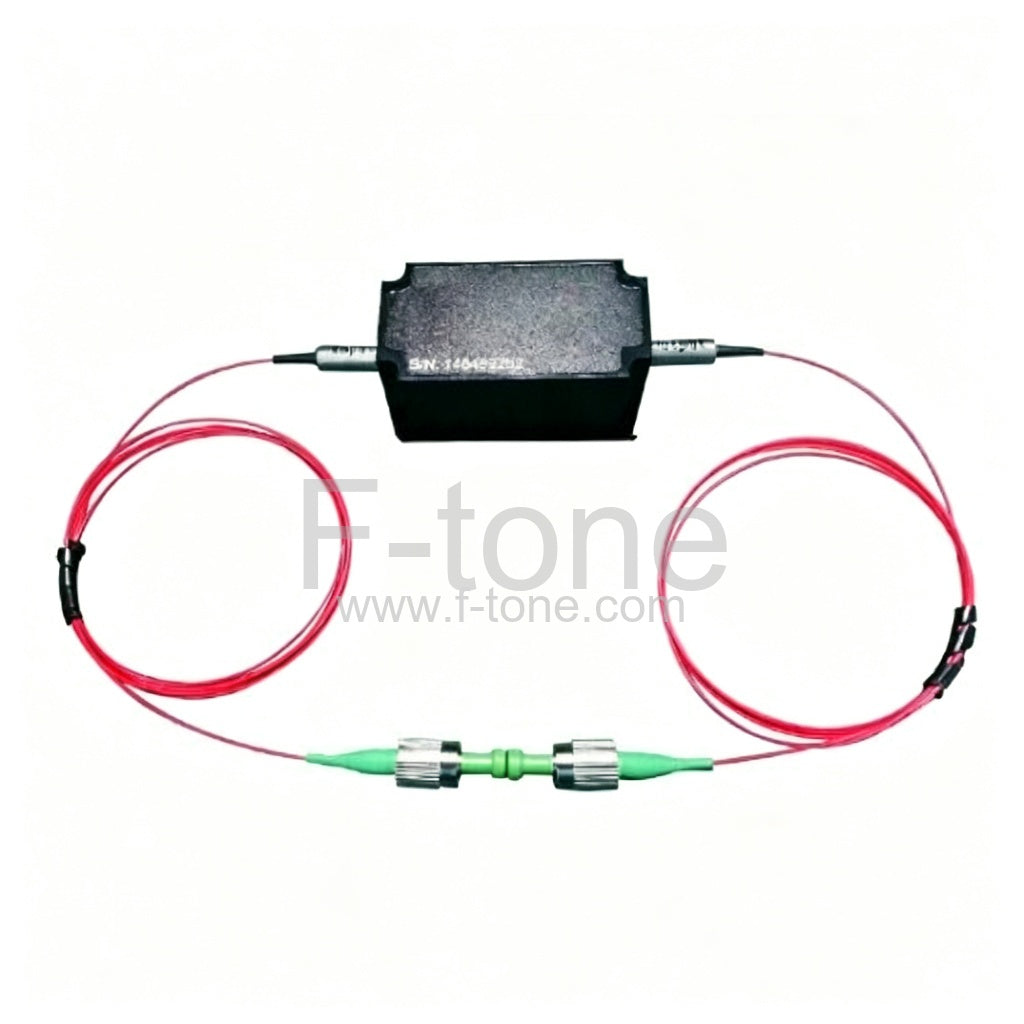

High Power Polarization Maintaining Isolator HPPMIS 10W 980nm
Features
- Low Insertion Loss
- High Return Loss
- High Isolation
- High stability
- High Reliability
Applications
- Optical Fiber Amplifiers
- Testing Instrumentations
- Fiber Sensor
- Fiber Lasers
- Lab Research
Picture Details
Package Dimensions
Ordering Information
| HPIS/HPPMIS-1111-23456-77 | ||
| 1111 | Center Wavelength: | 980=980nm |
| 2 | Axis alignment | F=Slow axis working Fast axis blocked, B=Both of axis working, N=No axis |
| 3 | Fiber type | 0=PM Panda fiber, 1=SMF-28e, 2=Hi1060, 3=Hi780 |
| 4 | Pigtail type: | 0=250 bare fiber, 1=900um loose tube, 2=2.0mm loose tube, 3=3.0 loose tube |
| 5 | Fiber length: | 0=0.8m,1=1m |
| 6 | Package Dimension: | 0=72*34*33mm, S=Specified |
| 77 | Handling Power | 01=1W, 02=2W,......,05=5W,......, 20=20W |
| Parameters | Unit | Value | ||
| Type | - | HPIS | HPPMIS | |
| Center Wavelength | nm | 980 | ||
| Operating Wavelength Range | nm | ±10 | ||
| Typ. Peak Isolation at 23℃ | dB | 32~40 | ||
| Isolation at 23℃ | dB | 25 | ||
| Typ. Insertion Loss at 23℃ | dB | 0.6 | ||
| Max. Insertion Loss at 23℃ | dB | 1 | ||
| Max.PDL at 23℃( only for HPIIS) | dB | 0.15 | / | |
| Extinction Ratio | only for B type | dB | / | 20 |
| only for F type | dB | / | 22 | |
| Return Loss(Input/Output) | dB | 50/50 | ||
| Max. Optical Power(CW) | W | 1, 2, 5 or specify | ||
| Max. Tensile Load | N | 5 | ||
| Fiber Type | - | Hi 1060 | PM Panda Fiber |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
