Part Number: HTC-MC-FM

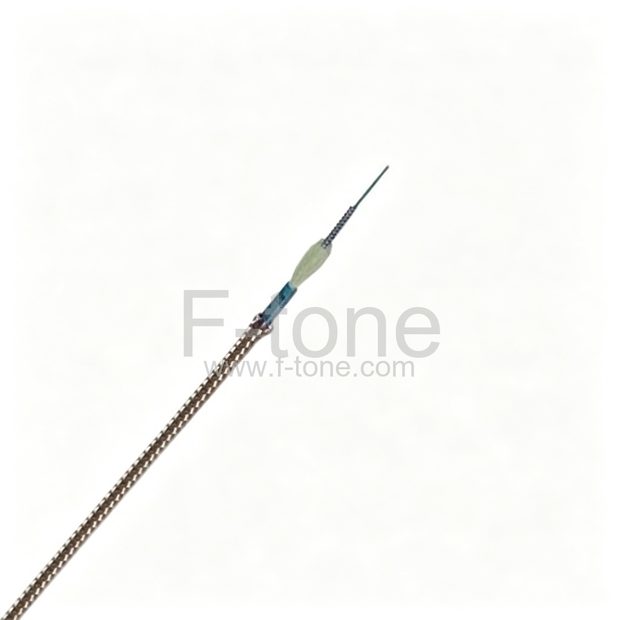

Spiral Pipe Armored Temperature Sensing Optical Cable, Custom Specification
Spiral Pipe Armored Temperature Sensing Cable
Spiral pipe armored sensing cable is general sensor cable of DTS(distributed temperature sensing system). This kind of cable is strengthened by both SUS spring tube and SUS braiding and has very good mechanical performance of tensile resistance and pressure resistance. The cable is widely used in fire detecting, building health detecting, temperature detecting, etc.
Cable Structure
- Double armored sheath ensure good mechanical performance.
- Mini diameter and sample structure provides good thermal conductivity.
- Outer jacket complied with UL, RoHS & IP9.
- Flexible & resilient, easy to deploy.
- High-way's tunnel, underground tunnel for fire detecting
- Power wire tunnel, power wire inter-layer temperature detecting
- Fire monitoring of factory, hall, granary, etc
- Safety detecting of coal, petrochemical pipe, etc
Package
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.
Mark
Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX
Cable production throughout the chart
Geometrical Characteristics
| Item | MM 50 | MM 62.5 |
|---|---|---|
| Core Diameter(µm) | 50±2.5 | 62.5±2.5 |
| Cladding Diameter (µm) | 124.8±0.1 | 124.8±0.1 |
| Cladding Non-circularity(%) | ≤1.0 | ≤1.0 |
| Core-cladding Concentricity Error (µm) | ≤1.5 | ≤1.5 |
| Coating Diameter(µm) | 245±7 | 245±7 |
| Coarting-cladding Concentricity Error (µm) | ≤12.0 | ≤12.0 |
Optical Characteristics
| Item | MM 50 | MM 62.5 | ||
|---|---|---|---|---|
| Zero Dispersion Wavelength(nm) | 1295-1320 | 1320-1365 | ||
| Zero Dispersion Slop [ps/(nm2.km)] | ≤0.101 | ≤0.097 | ||
| Ngroup Index Of Refraction | 850nm | 1300nm | 850nm | 1300nm |
| 1.481 | 1.476 | 1.496 | 1.491 |
Cable Parameters
| Item | Unit | Multimode | |
| Fiber Core/Modal Diameter | µm | 50.0±2.5 | 62.5±2.5 |
| Cladding Diameter | µm | 125.0±1.0 | 125.0±1.0 |
| Attenuation | dB/km | 3.5dB/km@850nm | 3.5dB/km@850nm |
| 1.5dB/km@1300nm | 1.5dB/km@1300nm | ||
| Temperature | ℃ | -40℃~+85℃ | |
| Outer Diameter | mm | 2.85±0.10 | |
| Cable Weight | Kg/km | 18 | |
| Allowable Bending Radius | mm | Dynamic 20D Static 10D | |
| Allow Tension | N | Long-term 200 Short-term 400 | |
| Coefficient Of Heat Conductivity | W/(m·k) | 1 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
