Part Number: IOFC-12OM4

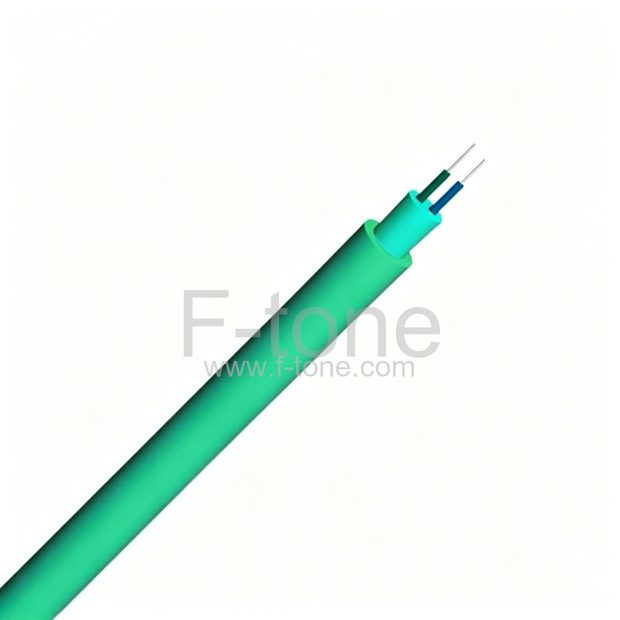

Indoor/Outdoor Central Loose Tube Multimode Cable with 12 Fibers OM2/OM3/OM4
Indoor/Outdoor cables combine the flame resistance and safety features of an indoor riser or plenum cable with the durability that is critical for Outside Plant Cable. The result is a unique, dual-purpose cable that can save time and money by allowing OSP applications to flow seamlessly indoors, using a single cable and no splices.
LSZH (LSZH, Low smoke, Zero halogen) material Jacket, good fame retardant performance. The loose tube filled with grease provides special protection for the fiber. The loose tube is surrounded by the Aramid Yarn, which has the filling effect, high temperature resistance, low shrinkage and high tensile strength.
Item Details
- Fiber Count : 12 Fibers
- Fiber Type: OM4 50/125μm Multimode
- Outer Jacket: LSZH
Cable Structure
- Streamlined installation with direct outdoor-to-indoor cable transitions.
- Good fame retardant performance.
- Low shrinkage and high tensile strength.
- High density, easy installation in transitional aerial and duct applications.
- Enhances system performance by avoiding additional splice point attenuation.
- The loose-tube design isolates the fibers from outside environmental and mechanical stresses.
- Low Smoke Zero Halogen available.
- Outside plant, inter-building installations
- Aerial, duct applications and entrance facilities
- Local area networks
- Private networks
Package
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.
Mark
Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX
Cable production throughout the chart
| Cable Count | Out Sheath Diameter |
Weight | Minimum Allowable Tensile Strength (N) |
Minimum Allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage Temperature |
|||
| （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | |
| 2 | 6.0 | 45.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 4 | 6.0 | 45.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 6 | 6.0 | 45.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 8 | 6.0 | 45.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 10 | 6.0 | 45.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 12 | 6.0 | 45.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| G.652 | 50/125µm | 62.5/125µm | ||
| Attenuation (+20°C) (dB/km) |
@850nm | ≤3.0 | ≤3.0 | |
| @1300nm | ≤1.0 | ≤1.0 | ||
| @1310nm | ≤0.36 | |||
| @1550nm | ≤0.22 | |||
| Bandwidth (Class A) (MHz·km) | @850nm | ≥600 | ≥200 | |
| @1300nm | ≥1200 | ≥600 | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc (nm) | ≤1260 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
