Part Number: IPBC-1310D2-210-1x2

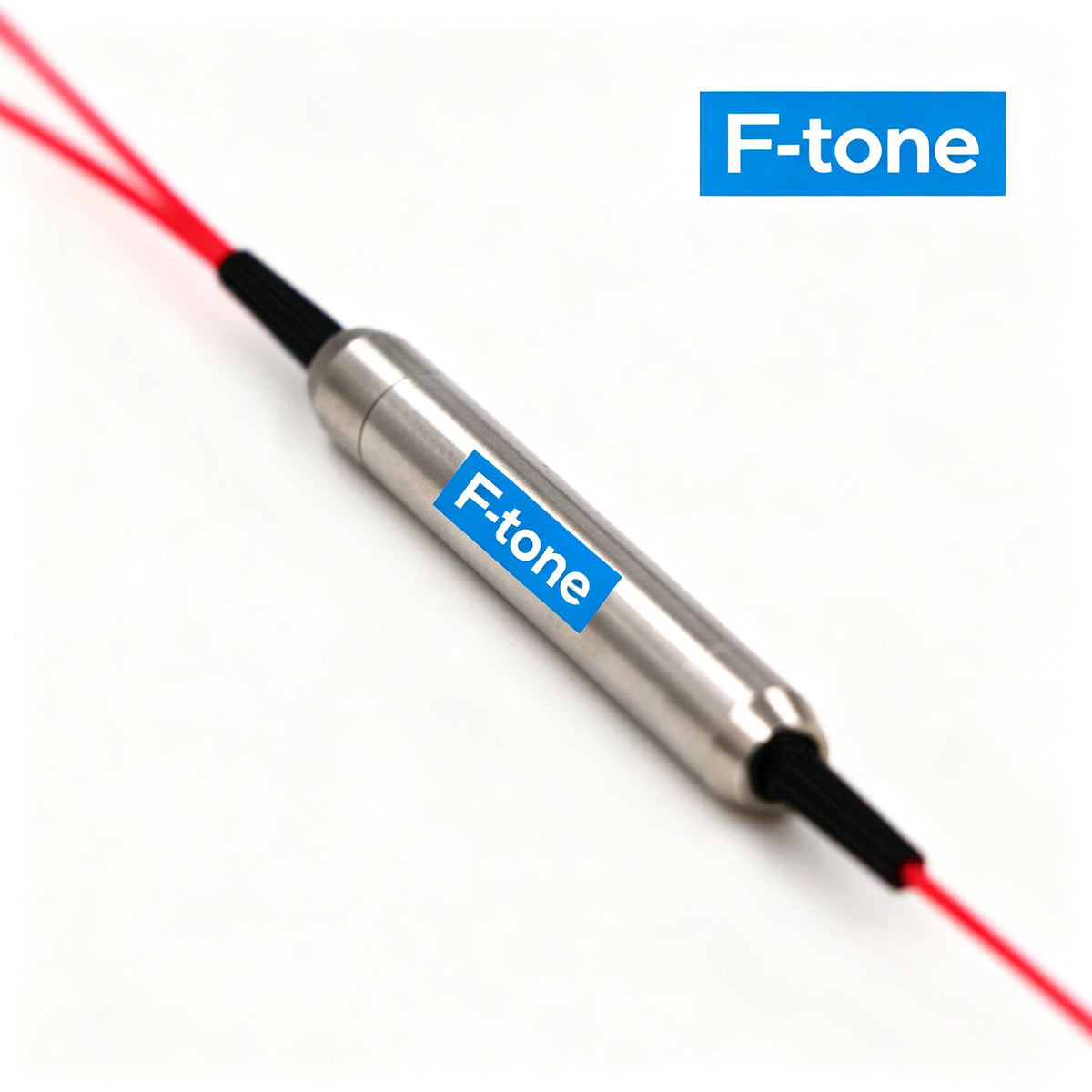

1x2 Isolator Polarization Beam Combiner/Splitter (IPBC/IPBS)
1x2 Isolator Polarization Beam Combiner/Splitter(IPBC/S)combine the functionality of a PBC/S and an isolator into one component.Benefits of such devices includes reduction of component space and cost within assemblies and less splices.PBC/S can be used either as a polarization beam combiner to combine light beams from two PM input fibers into a single output fiber, or as a polarization beam splitter to split light from an input fiber into two output fibers of orthogonal polarization states.It is widely used in EDFA, raman amplifier, fiber sensor, coherent, telecommunications systems. Polarization mode dispersion compensator.
Features
- Low Insertion Loss
- High Isolation
- Low Wavelength and Temperature
- High Return Loss
- High Power Handling
- Compact Size
- Rugged Design
- 1 M Jacketed Fiber on Each Leg
- 1064, 1310, 1480, and 1550 nm Operating Wavelengths
Mechanical Dimensions(mm)
Applications
- EDFA & Raman Amplifier
- Fiber Sensor System
- Coherent Telecommunication Systems
- Polarization Mode Dispersion Compensator
- Polarization Division Mux/Demux
- Fiber Laser System
- R&D Laboratories
- Instruments
Ordering Information
| IPBS | Wavelength | Isolator type | Fiber for Port 3 | Pigtail Type | Length | Connector |
|---|---|---|---|---|---|---|
| IPBC | ||||||
| 1310=1310 | S=Single stage | 1=SMF-28e | 1=250um bare fiber | H=0.5m | 0=None | |
| 1480=1480 | D=Dual stage | 2=PM Fiber, Slow Axis Align to Port 1 | 2=900um loose tube | 8=0.8m | 1=FC/UPC | |
| 1550=1550 | 3=PM Fiber, Slow Axis Align 45° to Port | 1=1.0m | 2=FC/APC | |||
| 4=G657A2 Fiber for Port3&Port2, PM fiber for Port1. | 5=1.5m | 3=SC/APC | ||||
| 2=2.0m | 4=SC/UPC | |||||
| A=1.6m | 5=MU | |||||
| B=port1:0.45m;port2&3:1.5m | 6=LC/PC | |||||
| 7=LC/APC | ||||||
| 8=E2000 APC | ||||||
| 9=E2000 PC |
- if you have any requirement for it.，Please contact us by email to [email protected] or call at +1-205-282-9089
| Parameter | Values | |
| IsolatorStage | SingleStage | DualStage |
| CenterWavelength(nm) | 1310、1480、1550 | |
| OperatingWavelengthRange(nm) | ±20 | |
| Typ.InsertionLoss(dB) | 0.45 | 0.55 |
| InsertionLoss(dB) | ≤0.7 | ≤0.8 |
| Typ. Isolation(dB) | 35 | 51 |
| Isolation@23℃(dB) | ≥20 | ≥40 |
| ExtinctionRatio(dB)(OnlyforPBS) | ≥20 | ≥20 |
| Directivity(dB) | ≥50 | |
| Return Loss(dB) | ≥50 | |
| Power Handling(W) | 500 | |
| Fiber Type | Port1&2 | PM Panda Fiber |
| Port3 | SMF-28e or PMPandaFiber | |
| Operating Temperature(°C) | -5~+70 | |
| Storage Temperature(°C) | -40 ~ +80 | |
| Dimensions(mm) | φ5.5×L35(P1) |
Note:
*The above specification is without connector.
*The PM fiber and the connector key are aligned to the slow axis.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
