Juniper Networks compatible SFP+ transceiver supports up to 300m over OM3 MMF via an LC duplex connector. This transceiver is compliant with SFF-8431, IEEE 802.3-2012 10G-SR/SW and 1000BASE-SX. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 1G and 10G Ethernet etc.

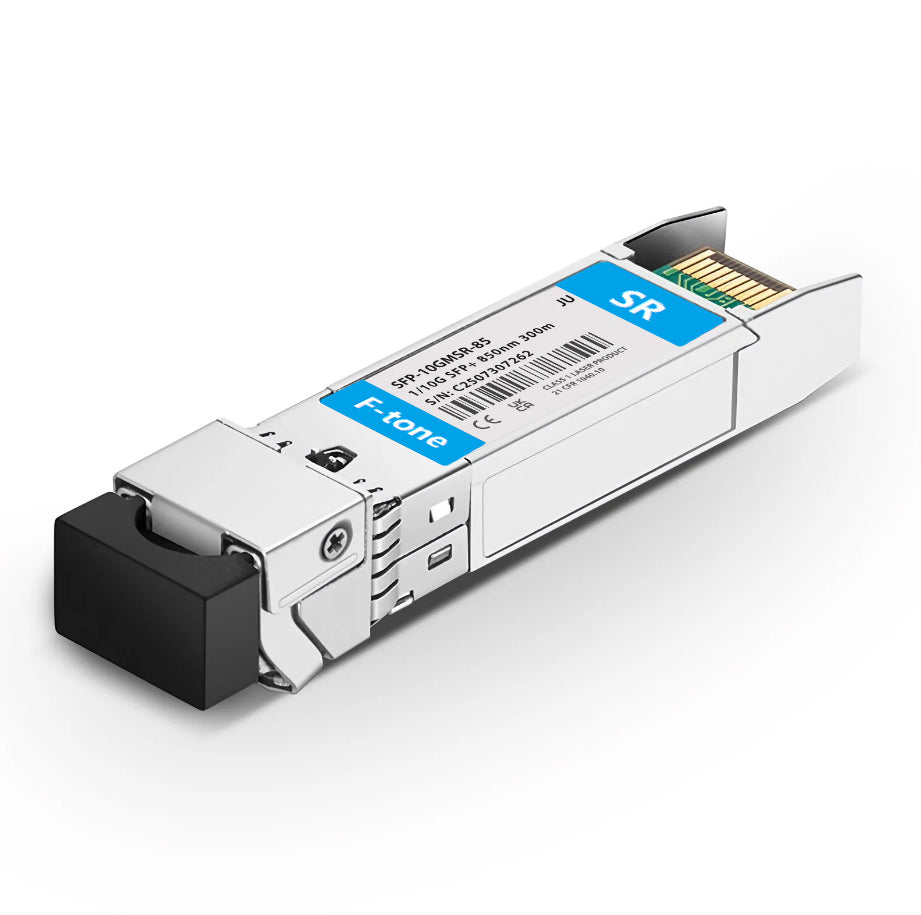

Juniper Networks Compatible 1000BASE-SX and 10GBASE-SR SFP+ Optical Transceiver Module (MMF, 850nm, 300m, Duplex LC/UPC, DOM)
Specifications
| Part Number | SFP-10GMSR-85 | Vendor Name | F-tone |
| Form Factor | SFP+ | Max. Data Rate | 1/10.3Gbps |
| Wavelength | 850nm | Max. Transmission Distance | 300m@OM3/400m@OM4 |
| Connector | Duplex LC | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -7.3~-1dBm | Receiver Sensitivity | < -11.1dBm |
| Power Budget | 3.8dB | Receiver Overload | -1dBm |
| Max. Power Consumption | ≤1W | Extinction Ratio | >3dB |
| DDM/DOM | Supported | Operating Temperature | 0 to 70°C (32 to 158°F) |
| Core Size | 50/125μm | Modulation | NRZ |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI | Warranty | 5 Years |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
