Juniper Networks EX-SFP-10GE-LRM2 compatible SFP+ transceiver supports up to 2km over OS2 SMF via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 10G Fiber Channel, SONET and SDH etc.

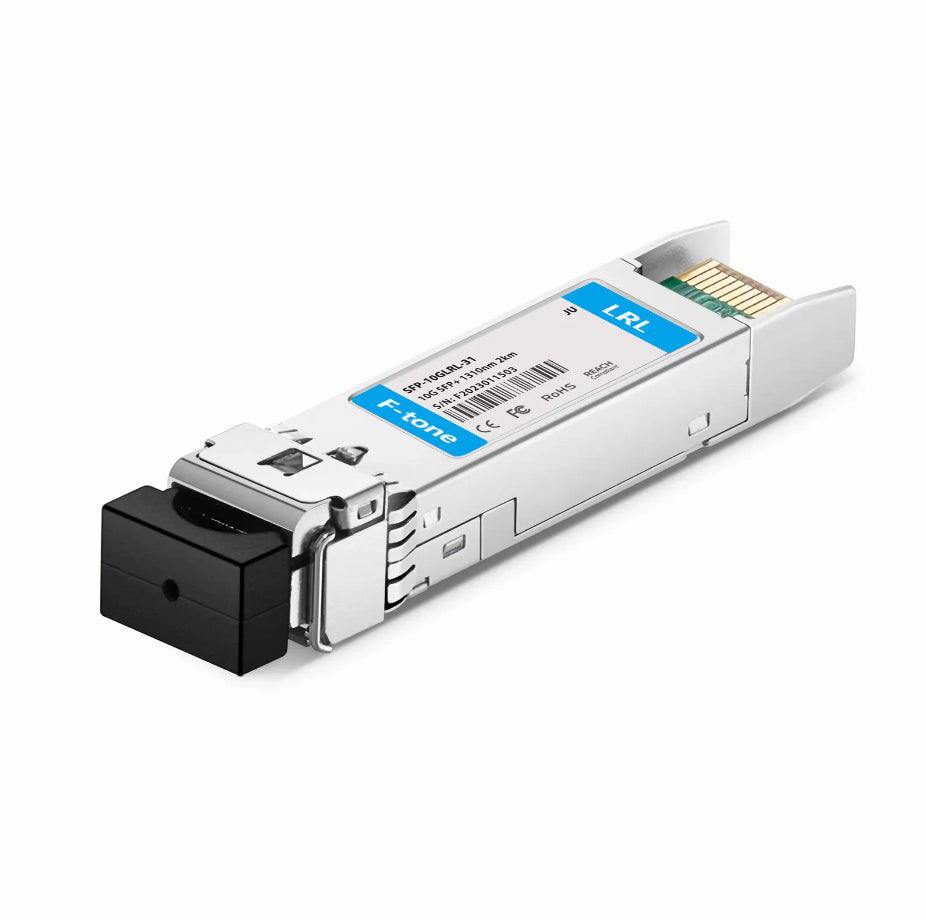

Juniper Networks EX-SFP-10GE-LRM2 Compatible 10GBASE-LRL SFP+ Optical Transceiver Module (SMF, 1310nm, 2km, Duplex LC/UPC, DOM)
Specifications
| Juniper Compatible | EX-SFP-10GE-LRM2 | Vendor Name | F-tone |
| Form Factor | SFP+ | Max. Data Rate | 10Gbps |
| Wavelength | 1310nm | Max. Transmission Distance* | 2km |
| Connector | Duplex LC | Transmitter Type | FP 1310nm |
| Media | SMF | DOM Support | YES |
| TX Power | -8.2~0.5dBm | Receiver Sensitivity | < -12.6dBm |
| Max. Power Consumption | ≤1.2W | Receiver Overload | +1.5dBm |
| Core Size | 9/125μm@SMF | Modulation | NRZ |
| Operating Temperature | 0 to 70°C (32 to 158°F) | Bit Error Ratio (BER) | 1E-12 |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI | Warranty | 5 Years |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
