The Juniper Networks compatible SFP28 transceiver provides 25GBase-ER throughput up to 40km over single mode fiber (SMF) using a wavelength of 1310nm via an LC duplex connector. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center. Besides, this module offers interoperability, laying a foundation for the next-generation network upgrade. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.

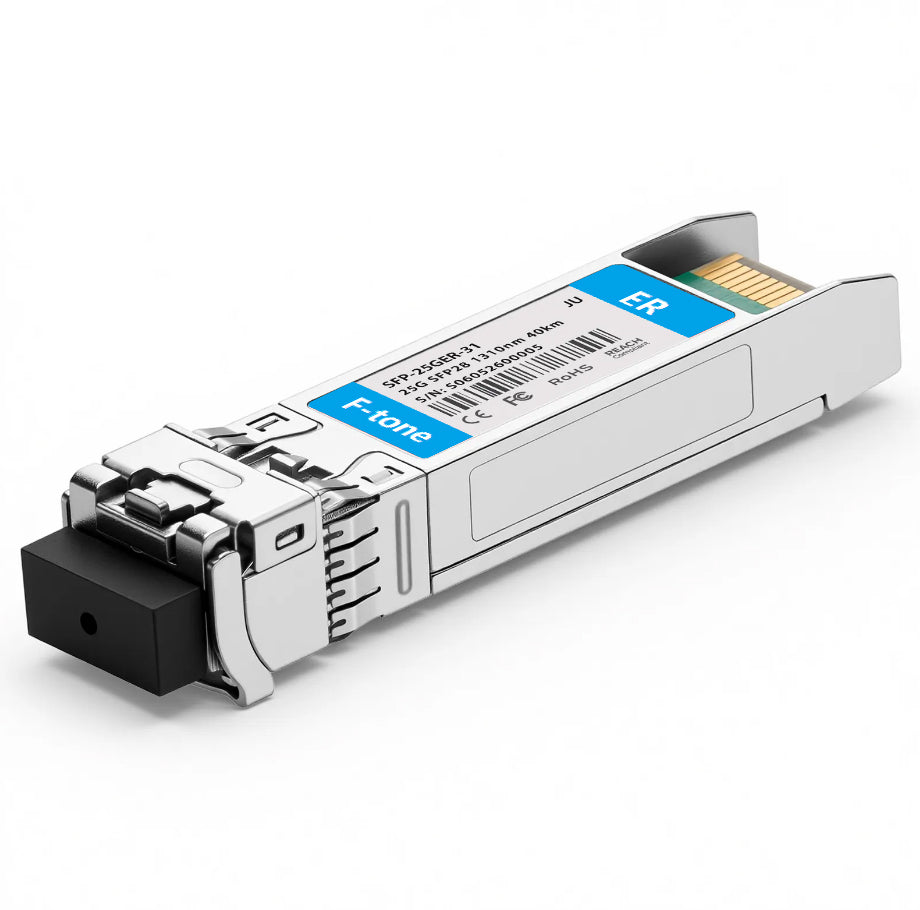

Juniper Networks Compatible 25GBASE-ER SFP28 Optical Transceiver Module for Data Center and Telecom (SMF, 1310nm, 40km, LC, DOM)
Specifications
| Part Number | SFP-25GER-31 | Vendor Name | F-tone Networks |
|---|---|---|---|
| Form Factor | SFP28 | Max. Data Rate | 25.78Gbps |
| Wavelength | 1310nm | Max. Cable Distance | 40km |
| Connector | Duplex LC/UPC | Media | SMF |
| Transmitter Type | DML 1310nm | Receiver Type | APD |
| TX Power | 0~6dBm | Minimum Receiver Power | <-19dBm |
| Power Budget | 19dB | Receiver Overload | -5dBm |
| Max. Power Consumption | ≤2W | Extinction Ratio | 4dB |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | CDR (Clock and Data Recovery) | TX & RX Built-in CDR |
| Core Size | G.652 | Inbuilt FEC | No |
| Packaging Technology | BOX Packaging | Protocols | MSA Compliant, SFF-8431, SFF-8432, SFF-8472, CPRI, eCPRI |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series
HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series
-
HFBR-1531Z,HFBR-2531Z,HFBR-1531Z 100% Compatible with Avago ,HFBR-2531Z 100% Compatible with Avago
Regular price $0.00Regular price -
AVAGO HFBR-2521ETZ Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-1521ETZ Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-1528Z Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price
Power and Wavelength Testing
Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.
Traffic Testing
Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.
Optical Performance Testing
Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.
End Face Testing
Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.
Various Switch Tests
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
