Juniper Networks Compatible SFP28 transceiver adopts LC duplex connectors, reaching a link up to 30m over OM4 MMF. The SFP28 transceiver module supports running on the same 1G/10G network cabling Infrastructure, giving 2.5 times increase in speed at least, and the built-in DOM functions monitor the real-time operating status. Each SFP28 transceiver module is individually tested in targeted switches, and is fully compliant with the SFF-8472, SFF-8024, SFF-8431, SFF-8432, IEEE 802.3by, IEEE 802.3cc standards. Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, Telecom, and Data Center.

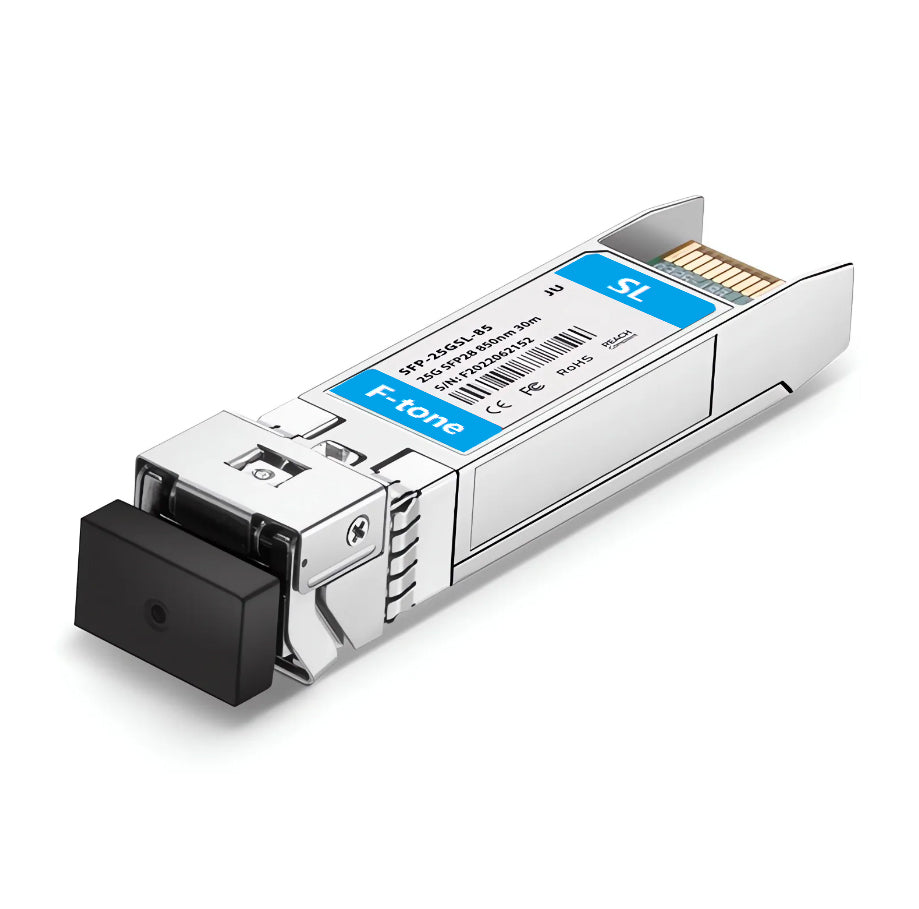

Juniper Networks Compatible 25GBASE-SL SFP28 Optical Transceiver Module (MMF, 850nm, 30m, LC, DOM)
Specifications
| Part Number | SFP-25GSL-85 | Vendor Name | F-tone Networks |
|---|---|---|---|
| Form Factor | SFP28 | Max Data Rate | 25.78Gbps |
| Wavelength | 850nm | Max Cable Distance | 30m |
| Connector | Duplex LC | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -8.4~2.4dBm | Receiver Sensitivity | -10.2 dBm |
| Power Budget | 1.9dB | Receiver Overload | 2.4 dBm |
| Power Consumption | <0.6W | Extinction Ratio | 2dB |
| CDR | TX and RX | FEC Function | Support RS-FEC |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | SFF-8472, SFF-8024, SFF-8431, SFF-8432, IEEE 802.3by, IEEE 802.3cc |
| DOM | Supported | Warranty | 5 Years |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
