The Juniper Network compatible SFP28 transceiver provides up to 20km of 25GBase-BX throughput over single-mode fiber (SMF) using 1270nm-TX/1330nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths.It provides 25GBASE Ethernet connectivity options for 25G Ethernet, telecom, data center and 5G Network Fronthaul. It is fully compliant with SFF-8472, SFF-8402, SFF-8432, SFF-8431, MSA and eCPRI standards.

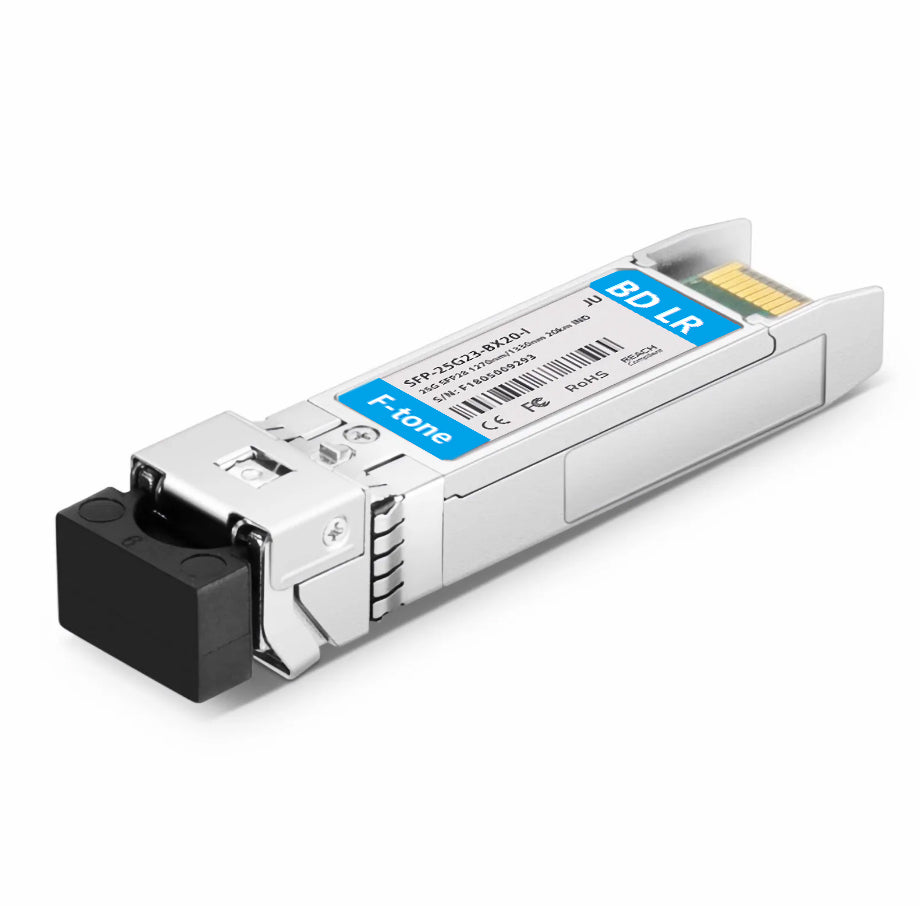

Juniper Networks Compatible 25GBASE SFP28 Optical Transceiver Module for Data Center (SMF, 1270nm-TX/1330nm-RX, 20km, LC, DOM)
Specifications
| Part Number | SFP-25G23-BX20-I | Vendor Name | F-tone Networks |
|---|---|---|---|
| Form Factor | SFP28 | Max Data Rate | 25.78Gbps |
| Wavelength | 1270nm-TX/1330nm-RX | Max Cable Distance | 20km |
| Connector | Simplex LC | Media | SMF |
| Transmitter Type | DFB BiDi | Receiver Type | PIN |
| TX Power | 0~6dBm | Receiver Sensitivity | <-14dBm |
| Power Budget | 9dB | Receiver Overload | 2.5dB |
| Power Consumption | ≤1.2W | Extinction Ratio | 3.5dB |
| DDM/DOM | Supported | Industrial Temperature Range | -40 to 85°C (-40 to 185°F) |
| CDR | TX & RX Built-in CDR | FEC Function | Not support |
| Protocols | SFF-8472, SFF-8402, SFF-8432, SFF-8431, CEI-28G-VSRP | Warranty | 5 Years |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
