Juniper Networks EX-SFP-10GE-SR-I compatible SFP+ transceiver supports up to 400m link lengths over 4700MHz((*))km OM4 MMF (300m over 2000MHz((*))km OM3 MMF) via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards and specifications for seamless interoperability in multivendor environments. Digital diagnostics monitoring (DOM) is available via a 2-wire serial interface, as specified in SFF-8472. Featuring an operating temperature range of -40°C to 85°C, this industrial fiber optic transceiver can work in harsh industrial environments, such as telecommunication, data processing & management, the application of industrial and factory automation, outdoor applications, rail and intelligent transportation systems (ITSs), marine, oil and gas, mining etc.

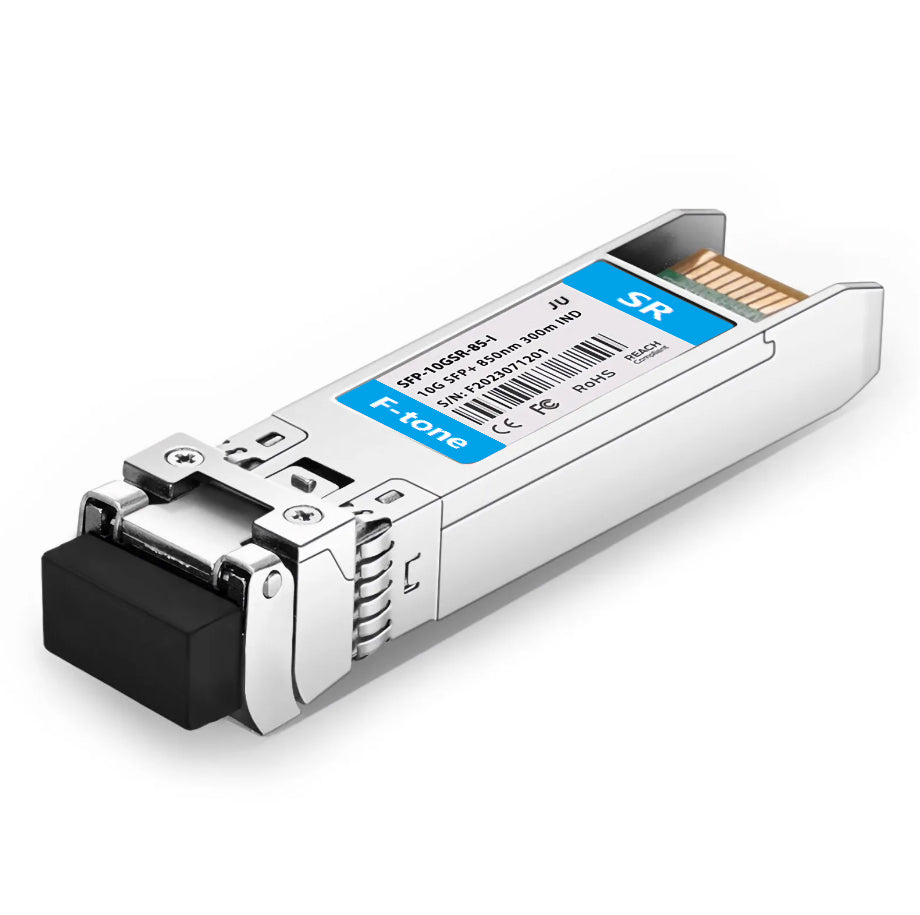

Juniper Networks EX-SFP-10GE-SR-I Compatible 10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m, LC, Industrial, DOM)
Specifications
| Juniper Networks Compatible | EX-SFP-10GE-SR-I | Vendor Name | F-tone |
|---|---|---|---|
| Form Factor | SFP+ | Max. Data Rate | 10.3125Gbps |
| Wavelength | 850nm | Max. Transmission Distance | 300m@OM3/400m@OM4 |
| Connector | Duplex LC | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -6~-1dBm | Receiver Sensitivity | <-11.1dBm |
| Power Budget | 5dB | Receiver Overload | > -1dBm |
| Max. Power Consumption | ≤1W | Extinction Ratio | >3dB |
| DDM/DOM | Supported | Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Core Size | 50/125μm | Dimension(HxWxD) | 8.5 x 13.4 x 56.5 mm |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, FC-PI-4, 10G FC, CPRI, OBSAI | Warranty | 5 Years |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
