Juniper Networks EX-SFP-1GE-SX compatible SFP transceiver supports up to 550m link lengths over multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector. Each SFP transceiver module is individually tested to be used on a series of Juniper switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

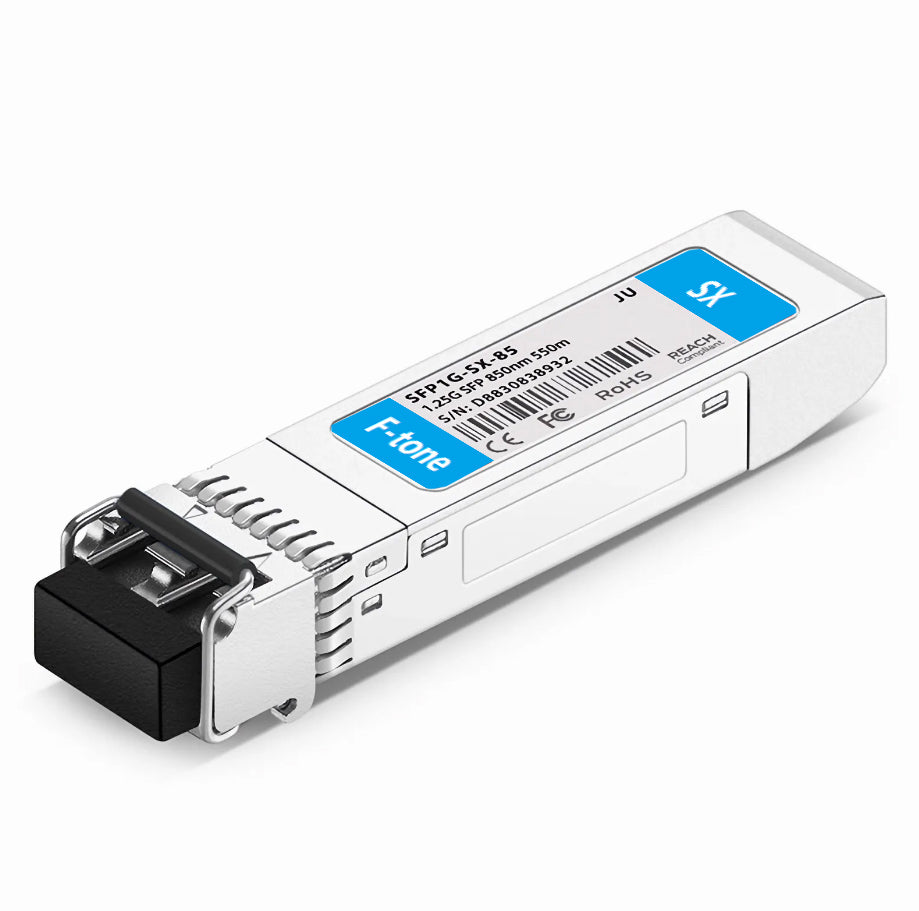

Juniper Networks EX-SFP-1GE-SX Compatible 1000BASE-SX SFP Transceiver Module (MMF, 850nm, 550m, LC, DOM)
Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Juniper Networks Compatible | EX-SFP-1GE-SX | Vendor Name | F-tone Networks |
| Form Factor | SFP | Max. Data Rate | 1.25Gbps |
| Wavelength | 850nm | Max. Cable Distance | 550m@50/125μm OM2 MMF
|
| Connector | Duplex LC | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| DDM/DOM | Supported | Operating Temperature Range | 0 to 70°C (23 to 158°F) |
| TX Power | -9.5~-3dBm | Receiver Sensitivity | < -17dBm |
| Typical Power Consumption | ≤0.8W | Receiver Overload | -3dBm |
| Bit Error Ratio (BER) | 1E-12 | Extinction Ratio | >9dB |
| EMC (Electro Magnetic Compatibility) | Supported | MTBF (SX) | 2,457,002 Hours |
| Protocols | IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant | Warranty | 5 Years |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
