Juniper Networks JNP-SFP-10G-BX40D Compatible SFP+ transceiver supports up to 40km over OS2 SMF via an LC simplex connector. This 10G BiDi SFP+ transceiver, featured with data transmission over a single strand of fiber, the one transceiver transmits a 1330-nm channel and receives a 1270-nm signal, whereas the other BiDi SFP+ optics transmits at a 1270-nm wavelength and receives a 1330-nm signal.
Digital diagnostics can also be used through the I2C interface designated by SFF-8472 to allow access to real-time operating parameters. Each BIDI SFP+ transceiver module is individually tested to be used on a series of switches, routers, servers, network interface cards (NICs) etc. Featuring low power consumption and high speed, this 10G BIDI SFP+ transceiver is ideal for enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.

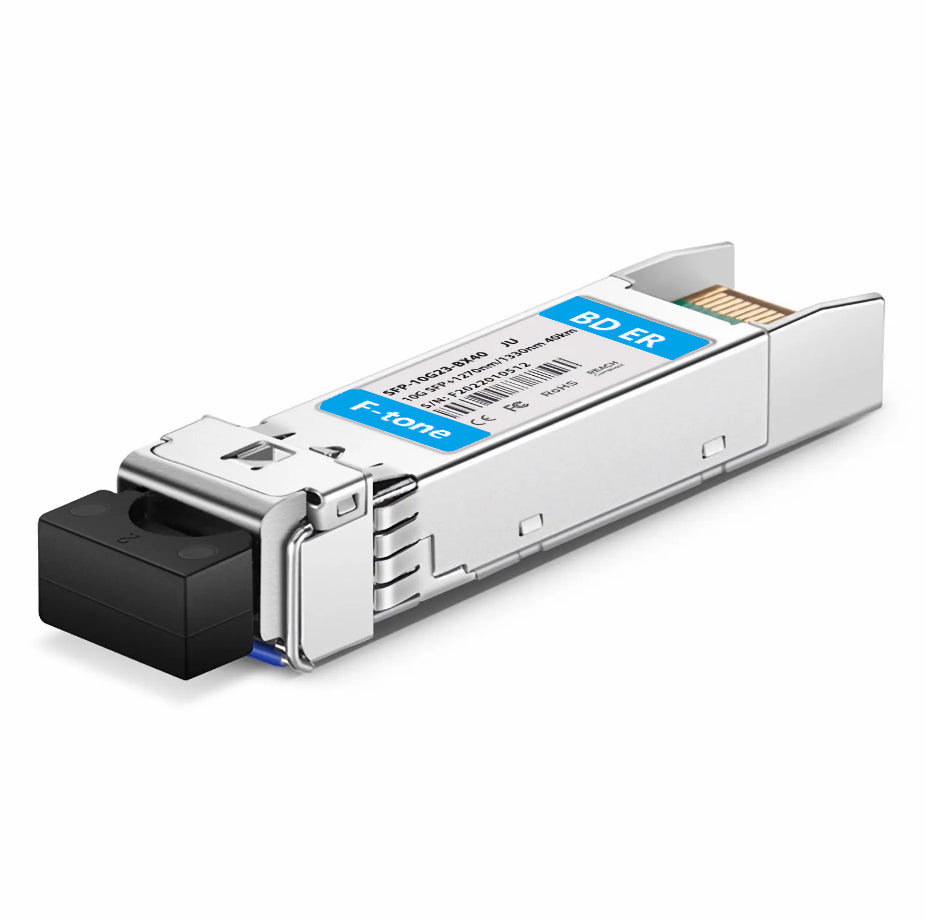

Juniper Networks JNP-SFP-10G-BX40D Compatible 10GBASE-BX40 SFP+ Transceiver Module (SMF, 1330nm-TX/1270nm-RX, 40km, LC, DOM)
Specifications
| Juniper Networks Compatible | JNP-SFP-10G-BX40D | Vendor Name | F-tone |
|---|---|---|---|
| Form Factor | SFP+ | Max. Data Rate | 10Gbps |
| Wavelength | 1330nm-TX/1270nm-RX | Max. Transmission Distance | 40km |
| Connector | Simplex LC | Transmitter Type | DFB BiDi |
| Media | SMF | DOM Support | Yes |
| TX Power | 1~5dBm | Receiver Sensitivity | < -15dBm |
| Operating Temperature | 0 to 70°C (32 to 158°F) | Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
