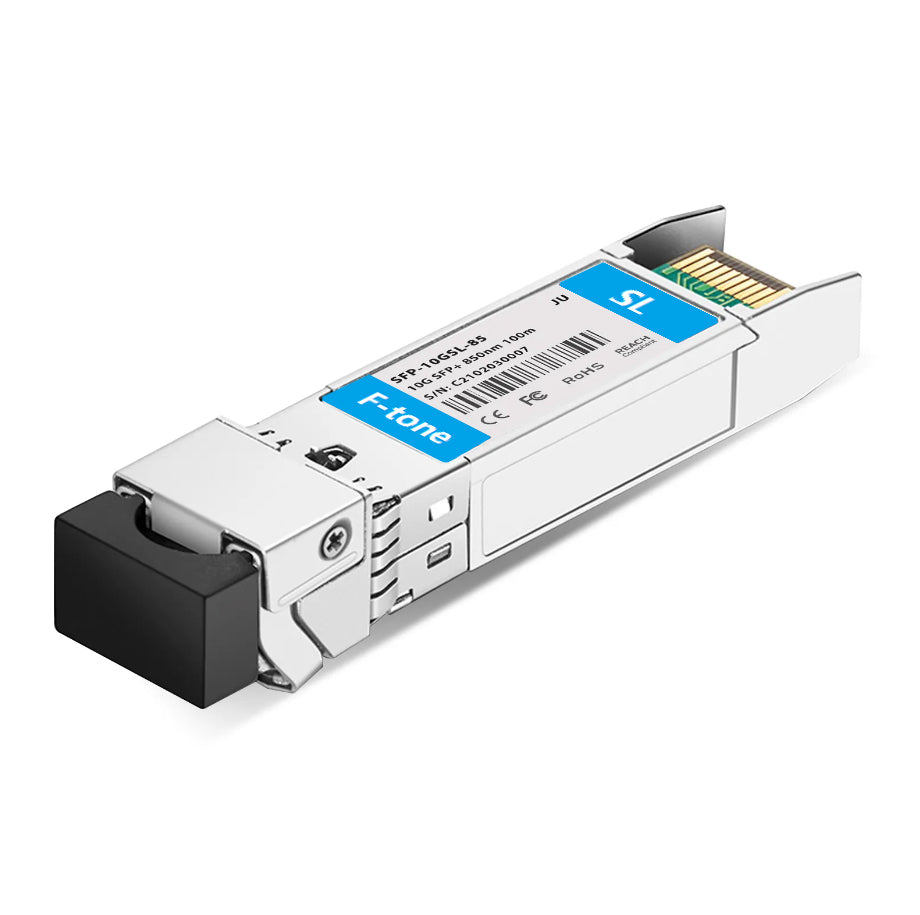

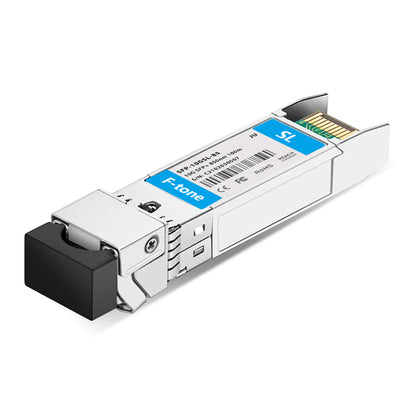

Juniper Networks QFX-SFP-10GE-USR Compatible 10GBASE-SL SFP+ 850nm 100m Duplex LC/UPC MMF Transceiver Module

Juniper Networks QFX-SFP-10GE-USR Compatible 10GBASE-SL SFP+ 850nm 100m Duplex LC/UPC MMF Transceiver Module

View full details

Juniper Networks QFX-SFP-10GE-USR Compatible 10GBASE-SL SFP+ Optical Transceiver Module (MMF, 850nm, 100m, Duplex LC/UPC, DOM)

Juniper Networks QFX-SFP-10GE-USR compatible SFP+ transceiver supports up to 100m link lengths over OM3 MMF via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards and for seamless interoperability in multivendor environments. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption and high speed, this 10G SFP+ transceiver is ideal for data centers, enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.


Juniper Compatible QFX-SFP-10GE-USR Vendor Name F-tone
Form Factor SFP+ Max. Data Rate 10Gbps
Wavelength 850nm Max. Transmission Distance 100m@OM3
Connector Duplex LC Media MMF
Transmitter Type VCSEL Receiver Type PIN
TX Power -7.3~-1dBm Receiver Sensitivity < -11.1dBm
Power Budget 3.8dB Receiver Overload -1dBm
Max. Power Consumption ≤1W Extinction Ratio >3dB
DDM/DOM Supported Operating Temperature 0 to 70°C (32 to 158°F)
Core Size 50/125μm Modulation NRZ
Protocols IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI Warranty 5 Years

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

View all

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

View all

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
