Juniper Networks SFPP-10GE-ZR-IT compatible SFP+ transceiver supports up to 80km link lengths over SMF via an LC duplex connector. This transceiver is compliant with IEEE Std 802.3by, SFF-8431, SFF-8432, SFF-8402, SFF-8472, SFF-8024. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472.
The SFP-10GZR-55-I is for industrial operating temperature range and can work in harsh industrial environments, such as telecommunication, data processing and management, the application of industrial and factory automation, outdoor applications, rail and intelligent transportation systems (ITSs), marine, oil and gas, mining etc.

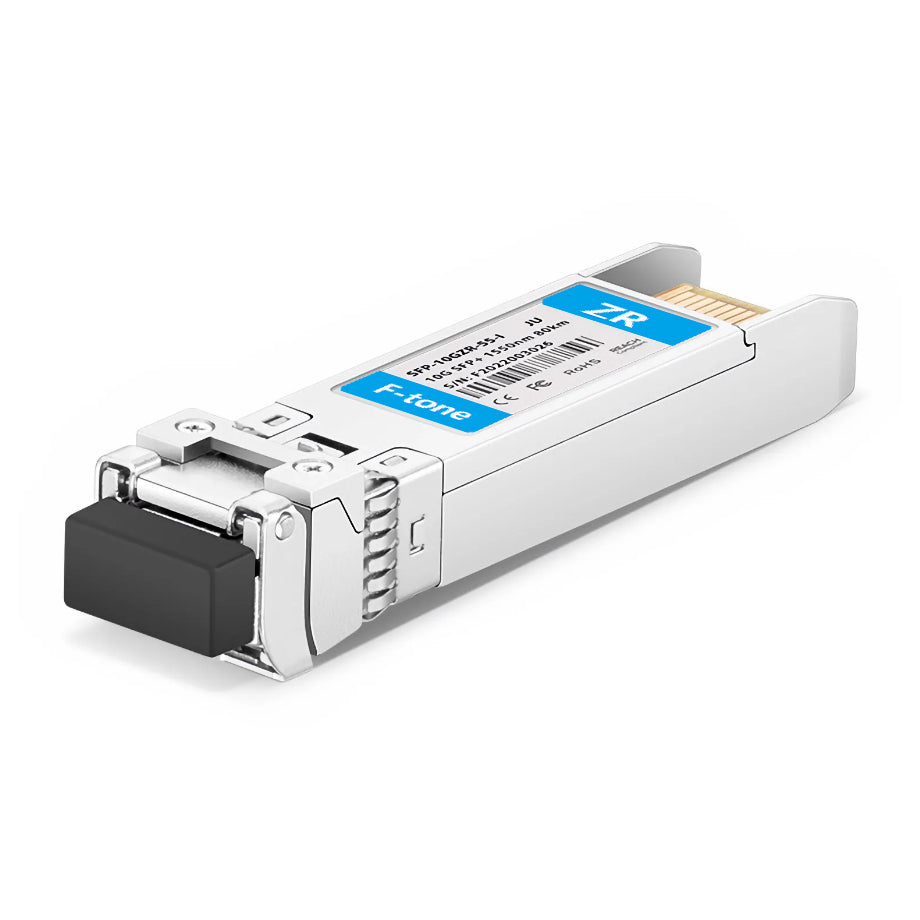

Juniper Networks SFPP-10GE-ZR-IT Compatible 10GBASE-ZR SFP+ Transceiver Module (SMF, 1550nm, 80km, LC, Industrial, DOM)
Specifications
| Juniper Networks Compatible | SFPP-10GE-ZR-IT | Vendor Name | F-tone |
|---|---|---|---|
| Form Factor | SFP+ | Max. Data Rate | 10.3125Gbps |
| Wavelength | 1550nm | Max. Transmission Distance | 80km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | 0~5dBm | Receiver Sensitivity | <-23dBm |
| Power Budget | 23dB | Receiver Overload | -8dBm |
| Max. Power Consumption | ≤2W | Extinction Ratio | >7.5dB |
| Core Size | 9/125μm | Modulation | NRZ |
| Operating Temperature | -40 to 85°C (-40 to 185°F) | Protocols | IEEE Std 802.3by, SFF-8402, SFF-8432, SFF-8472, SFF-8431, SFF-8024 |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
