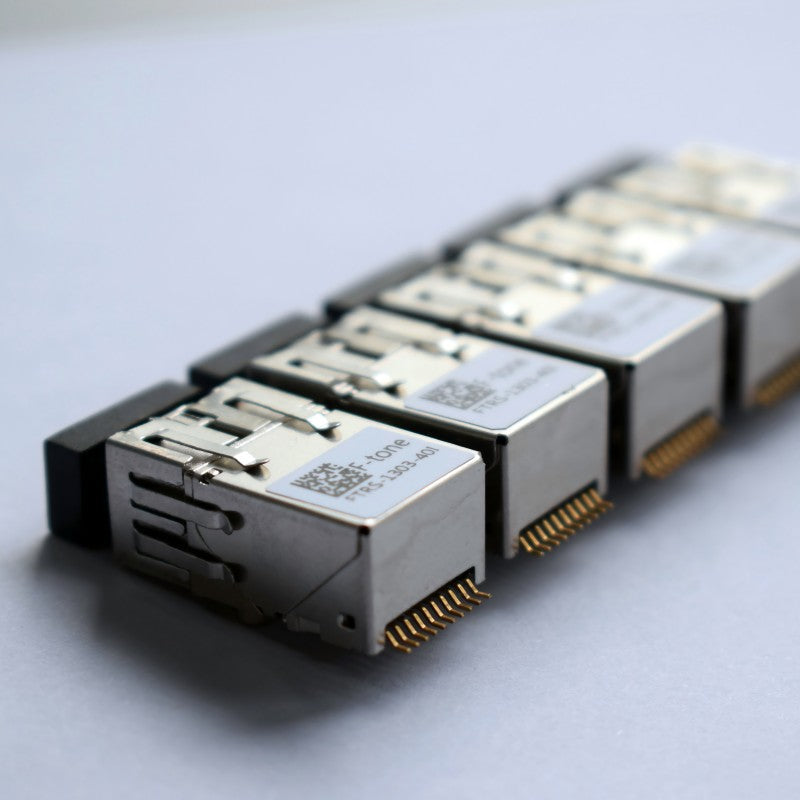

LC USOT Optical Transceiver,2.5G,MMF
Features
● More compact design - module height is only 12mm
● Surface Mount I/O Pins for High-Speed Signal Integrity
● Full metal shell
● Military grade temperature range, using anti-vibration design
● Use only +3.3 V single power supply
● Optical connectoris LC
Application
Various digital optical communication systems.
The main performance index
|
Parameter |
Index |
|
Center wavelength |
850nm |
|
Typical transmission rate |
2.5Gbps |
|
Average transmitter power |
-3dBm(25℃) |
|
Reception sensitivity |
≤-15dBm |
|
Extinction Ratio |
8dB |
|
voltage |
+3.3V |
|
Operating temperature |
-40℃～+85℃ |
Ordering Information
|
FTRS |
-85 |
XX |
-02 |
X |
|
dual-fiber bidirectional ultrashort type,LC connector |
85=850nm |
24 2.5Gbps |
≥0.2km |
E: Commercial grade |
Mechanical Dimensions(mm)
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
