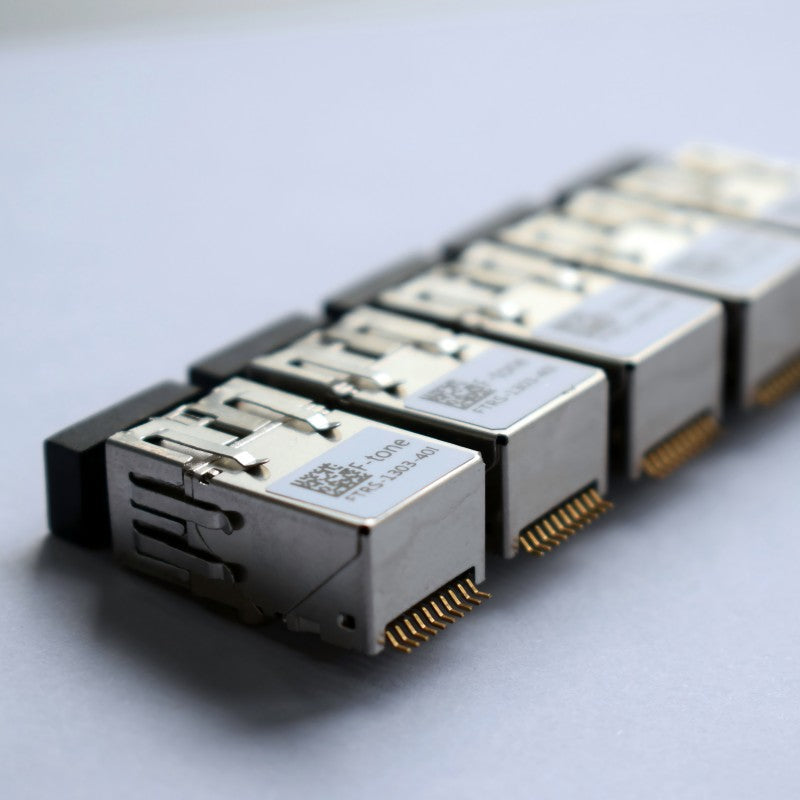

LC USOT Optical Transceiver,6.25G,MMF

LC USOT Optical Transceiver,6.25G,MMF

View full details

LC USOT Optical Transceiver,6.25G,MMF

● More compact design - module height is only 12mm
● Surface Mount I/O Pins for High-Speed Signal Integrity
● Full metal shell
● Military grade temperature range, using anti-vibration design
● Use only +3.3 V single power supply
● Optical connector is LC
Application
Various digital optical communication systems.
The main performance index

Parameter

Index

Center wavelength

850nm

Typical transmission rate

6.25Gbps

Average transmitter power

-3dBm(25℃)

Reception sensitivity

≤-13dBm

Extinction Ratio

≥5dB

voltage

+3.3V

Operating temperature

-40℃～+85℃

Ordering Information

FTRS

-85

XX

-02

X

dual-fiber bidirectional ultrashort type,LC connector

85=850nm

62=6.25Gbps

≥0.2km

E: Commercial grade
I: Industrial grade
M: Military grade

Note: the selected microcontroller is C8051F300, and the program is stored in FLASH. This product configuration value applies to the typical rate of 6.25Gbps,if  the rate is lower than 4.25Gbps we recommended to use other products of USOT series.

Mechanical Dimensions(mm)

 Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
