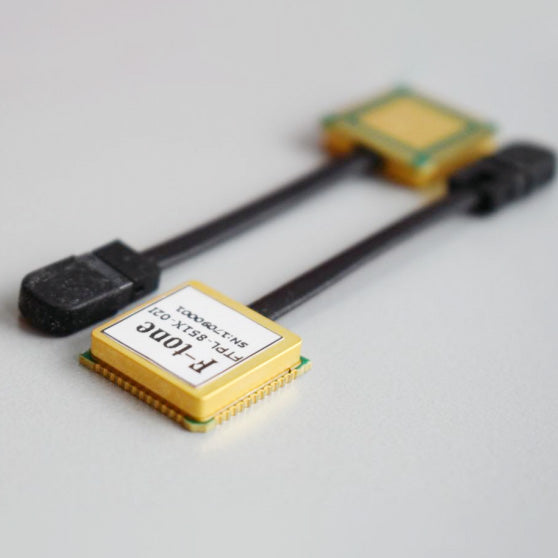

LCC48 Optical Transceiver,6.25G,4Tx4Rx

LCC48 Optical Transceiver,6.25G,4Tx4Rx

View full details

LCC48 Optical Transceiver,6.25G,4Tx4Rx

Features
● Typical transmission rate 6.25G (single channel)
● LCC48 Surface mount encapsulation, high density, small size
● 8-channel signal parallel transmission ,transceiver module
● VCSEL/PIN arrays with low power consumption
● Operating temperature -40°C～+85°C
● 3.3V single power supply

Application
      Very short-range high-speed data communications connections (board-level interconnects, rack-to-rack interconnects, system-level interconnects), and server-to-memory array interconnects.

The main performance index

Typical transmission rate

6.25Gbps

Interface type

MT/MPO

Center wavelength

850nm

Average transmitter power

-5～+1dBm(-40℃～+85℃)

Reception sensitivity

≤-12dBm(-40℃～+85℃)

voltage

3.3V

Operating temperature

-40℃～+85℃

Package size

16.4×16.4×3.6（mm）

Ordering Information

FTPL-4TR62-02

X

-XX

-XX

F-tone LCC48 4CH Optical Transceiver,6.25G/CH

E:Commercial grade

100mm
The tail fiber length(customize)）

MT: MT tail fiber output
MP:MPO tail fiber output

I: Industrial grade

M: Military grade

Pin definition diagram



Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

View all

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

View all

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
