Part Number: LPM-OM4-12MTP

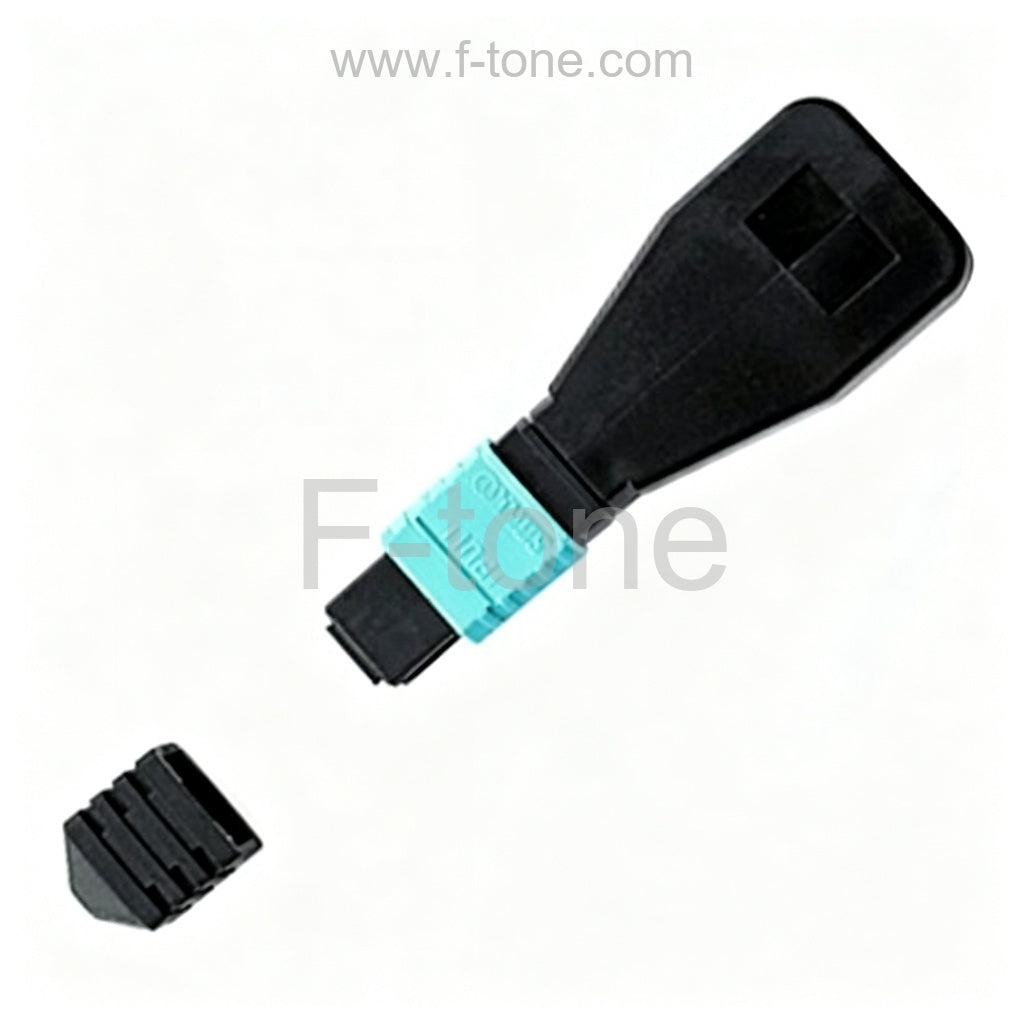

MTP-12 APC Female Fiber Loopback 12 Fiber OM4 Multimode Type A Polarity
MPO/MTP Loopback modules are used widely within testing environment especially within parallel optics 40 and 100G networks. Devices allow verification and testing of transceivers featuring MPO/MTP interface – 40G BASED-SR4 QSFP+ or 100G BASE-SR10 CXP/CFP devices. Loopbacks are built to link Transceivers (TX) and Receivers (RX) positions of MPO/MTP transceivers interfaces. MPO/MTP loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MPO/MTP trunks/patch leads.
Features
- SM 9/125, MM 50/125, MM 62.5/125
- 12 or 24 Fibre Ferrule MPO/MTP
- LSZH, OFNP, OFNR Cable Jacket Options
- Female and Male MPO/MTP option of Connectors
- Polarity Variants selection
- 40G QSFP+ and 100G CXP/CFP transceivers
- Factory Terminated and Tested
- MPO/MTP Interface - MPO/MTP components feature superior optical and mechanical properties
Applications
·Data Centre Infrastructure
·Storage Area Network- Fibre Channel
·Parallel Optics
·Infiniband
·Emerging 40 and 100Gbps Protocols
Specifications
| Item | Parameter |
| Fiber Type | Singlemode or Multimode |
| Fiber Diameter | 9/125um, 50/125um, 62.5/125um |
| Insertion loss | MM＜1.0dB, SM(G652D)＜1.5dB,SM(G657A1)＜0.5dB |
| Return loss | SM＞55dB; MM＞25dB |
| Insert-pull Test | 500times, IL＜0.5dB |
| Operation Temperature | -40℃~ +80℃ |
| Tensile Resistance | 15kgf |
| Size | 60mm*20mm |
MTP 12 Polarity (Channel Alignment)
12-MTP VS 24-MTP
12-fiber MTP interface for 40 Gig means 4 lanes at 10 Gig per lane over singlemode or multi-mode fiber for a total of 8 fibers (i.e.,4 transmit and 4 receive).
24-fiber MTP interface for 100 Gig means 10 lanes at 10 Gig per lane over singlemode or multi-mode fiber for a total of 20 fibers (i.e.,10 transmit and 10 receive).
